170 Degree Medicine Cabinet Hinge, 45mm Screw Hole Spacing - Bundle
Couldn't load pickup availability
Description
Description
- Replacement hinge and mounting plate system for Medicine Cabinets which use a 170 degree wide opening hinge.
- The hinge is adjustable after installation (in and out, up and down and side to side adjustments).
- The screw hole center-to-center of the mounting plate is 32mm (approximately 1-1/4").
- This hinge has a 45mm (1-3/4") screw hole pattern. This is the distance between the screw hole centers on the hinge cup. See the document found under Downloads to view a diagram of the screw hole pattern.
Important Ordering Information

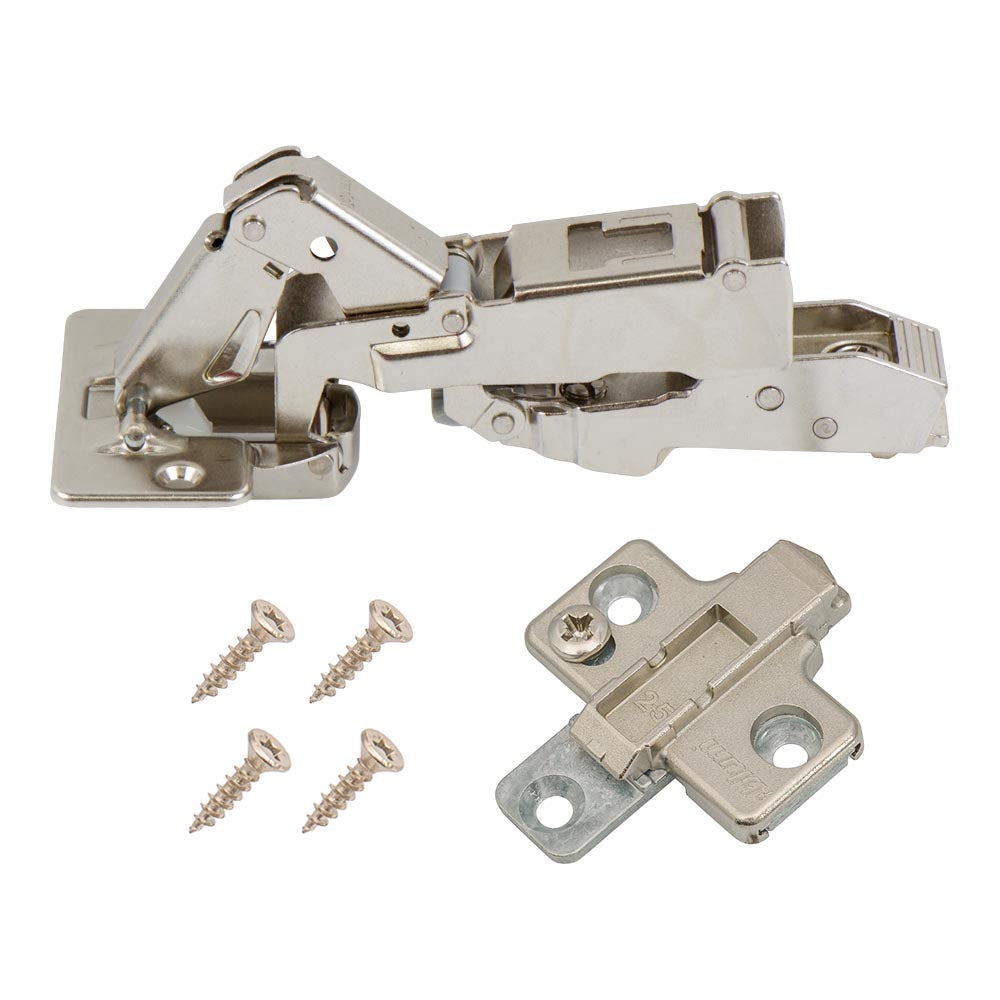

- This item is sold by the bundle: a bundle includes 1 hinge, 1 mounting plate, and 4 #6 x 5/8" Flat Head Screws for wood or metal.
- You will normally order two bundles per door
- When replacing hinges on a medicine cabinet it is necessary to replace all of the hinges and mounting plates on any door that you are working on. Mixing different brands of hinges can cause binding problems because the hinges may have slightly differing articulations.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10039
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeMedicine Cabinet
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle170 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
