Blum | SKU: 701808, 652304, 268000

Blum 120 Degree Inserta Hinge for Face Frame Overlay Cabinets - Bundle

Name: Blum 120 Degree Inserta Hinge for Face Frame Overlay Cabinets - Bundle
Brand: Blum
SKU: 701808, 652304, 268000
Price: 5.5 USD
Availability: InStock

$5⁵⁰Per Bundle

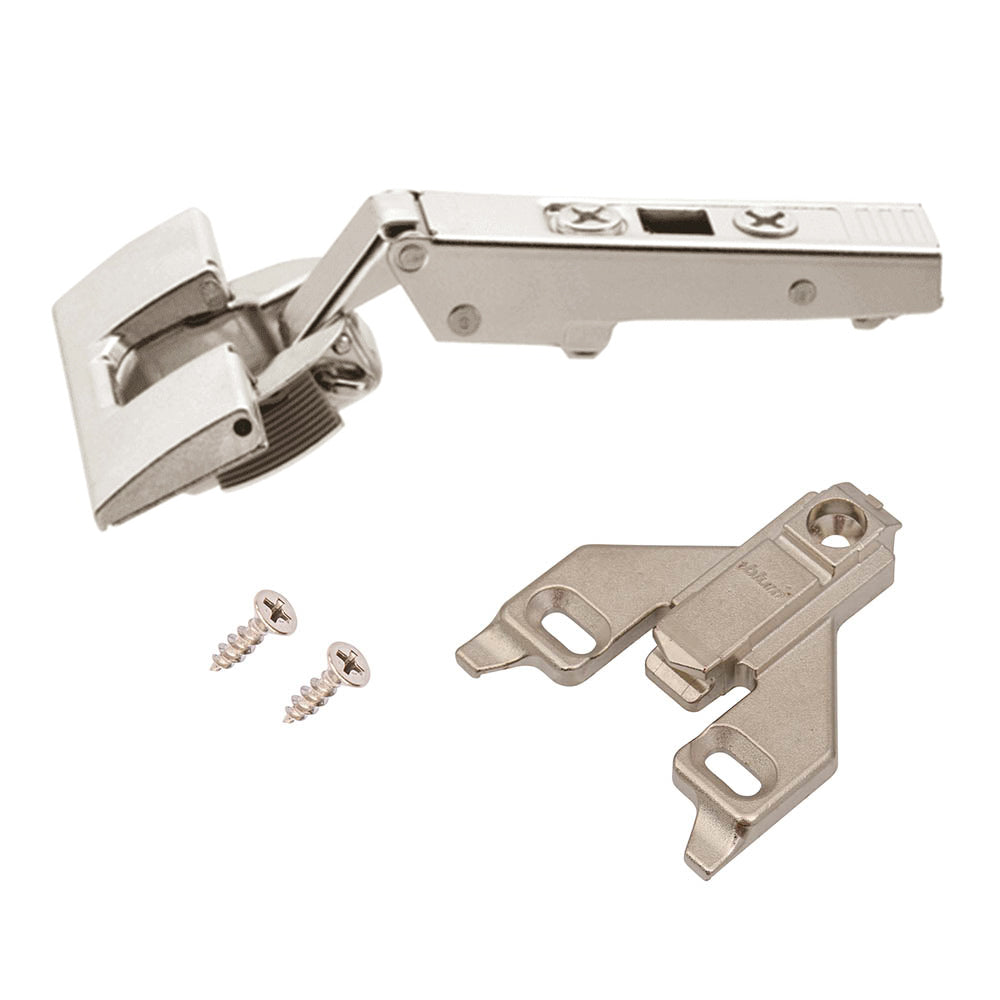

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Blum Clip Top Face Frame Mounting Plates (Mounting Plate Height)

0 mm 3 mm 6 mm

Product variants

Description

When using the INSERTA 120 Degree Hinge, the cabinet can open to a wider angle of 120 degrees, providing better accessibility to the interior. This feature is useful when the cabinet design allows for a broader door swing, or when improved accessibility is desired. While the 10-degree increase may seem insignificant, it can greatly affect functionality and user experience. Consider specific design factors, available space, and desired door movement when selecting between these hinges.

Blum Inserta straight arm hinge bundle for overlay doors on face frame cabinets.
Inserta hinges install on the door without using screws. On the hinge cup is a cover that acts as a lever. By pressing down on the lever, an anchor device is expanded which secures the hinge. This type of hinge is also known as a tool-free or toolless hinge.
This hinge uses two 8mm (5/16") holes where the wood screw holes would normally be to secure the hinge. See the document found under Downloads to view the Inserta screw hole pattern.
The hinge and mounting plate attach to each other by snapping on.

What's Included

1 x Blum Inserta Straight Arm Hinge
1 x Face Frame Mounting Plate:
- There are three possible mounting plates for face frame overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" document found under Downloads.
2 x #6 Wood Screws for the Mounting Plate

Available for purchase separately:

Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268001)
Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268230)
Restriction clip. Limits angle of opening to 86 degrees (SKU 701113)
Blum Touch Latch for Self-Closing Doors (SKU 268822)
35mm Forstner Bit, for new installations (SKU 204000)
Ecodrill, installation jig, for new installations (SKU 701000)

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10169

CA Prop 65 Warning

Manufacturer

Blum
Model Number

Hinge: 71T5590B
0mm Plate: 175L6600.22
3mm Plate: 175L6630.22
6mm Plate: 175L6660.22
Finish Name

Nickel
Material

Steel
Cabinet Door Type

Half Overlay, Full Overlay
Soft Close

No
Self-Closing

Yes
Plate Connection Type

Clip-On
Opening Angle

120 Degrees
Cup Diameter

35mm
Screw Hole Spacing

45mm (1-3/4")
Mounting Hardware Included

Yes
Mounting Hardware Type

Two #6 x 5/8" Flat Head Wood Screws
