Blum | SKU: 701158, 652304, 652360

Blum Inserta Hinge for Face Frame Overlay Cabinets - Bundle

Name: Blum Inserta Hinge for Face Frame Overlay Cabinets - Bundle
Brand: Blum
SKU: 701158, 652304, 652360
Price: 5.2 USD
Availability: InStock

$5²⁰Per Bundle

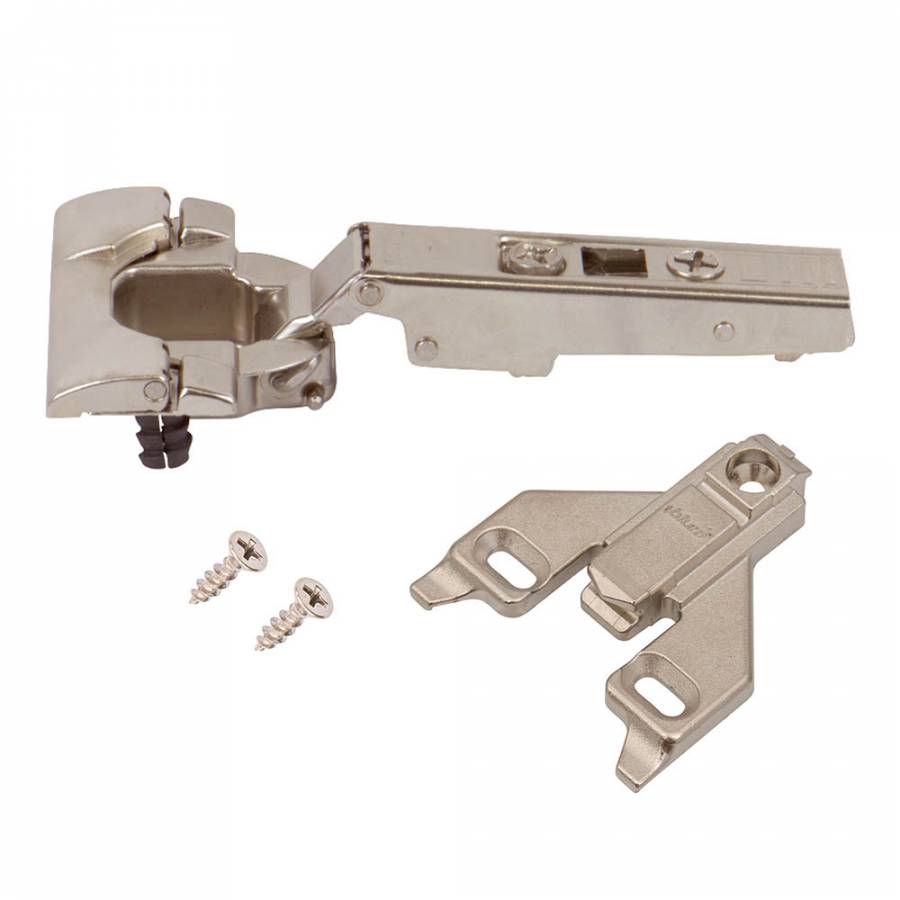

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Mounting Plate Height

0 mm 3 mm 6 mm

Product variants

Description

Blum Inserta straight arm hinge bundle for overlay doors on face-frame cabinets.
Inserta hinges install on the door without using screws. On the hinge cup is a cover that acts as a lever. By pressing down on the lever, an anchor device is expanded which secures the hinge. This type of hinge is also known as a tool-free or toolless hinge.
This hinge uses two 8mm (5/16") holes where the wood screw holes would normally be to secure the hinge. See the document found under Downloads to view the Inserta screw hole pattern.
The hinge and mounting plate attach to each other by snapping on.

What's Included

1 x Blum Inserta Straight Arm Hinge
1 Blum Face Frame Mounting Plate
- There are three possible mounting plates for face frame overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" document found under Downloads.
2 x #7 x5/8" Wood Screws for the Mounting Plate

Available for purchase separately:

Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268001)
Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268230)
Restriction clip. Limits angle of opening to 86 degrees (SKU 701113)
Blum Touch Latch for Self-Closing Doors (SKU 268822)
35mm Forstner Bit, for new installations (SKU 204000)
Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10088

CA Prop 65 Warning

Manufacturer

Blum
Model Number

Hinge: 71T3590
0mm Plate: 175L6600.22
3mm Plate: 175L6630.22
6mm Plate: 175L6660.22
Finish Name

Nickel
Material

Steel
Cabinet Door Type

Half Overlay, Full Overlay
Soft Close

No
Self-Closing

Yes
Plate Connection Type

Clip-On
Opening Angle

110 Degrees
Cup Diameter

35mm
Screw Hole Spacing

45mm (1-3/4")
Mounting Hardware Included

Yes
Mounting Hardware Type

Two #7 x 5/8" Flat Head Wood Screws
