Blum  |  SKU: 652281

Edge Mount Plates for Blum Compact 33 Hinge

$399 Each
Overlay

Important note: This page is for the edge mount plate ONLY, and does not include the Compact 33 hinge or screws. To view the bundle which includes these products, please see related products section.

Fasteners Not Included

Description

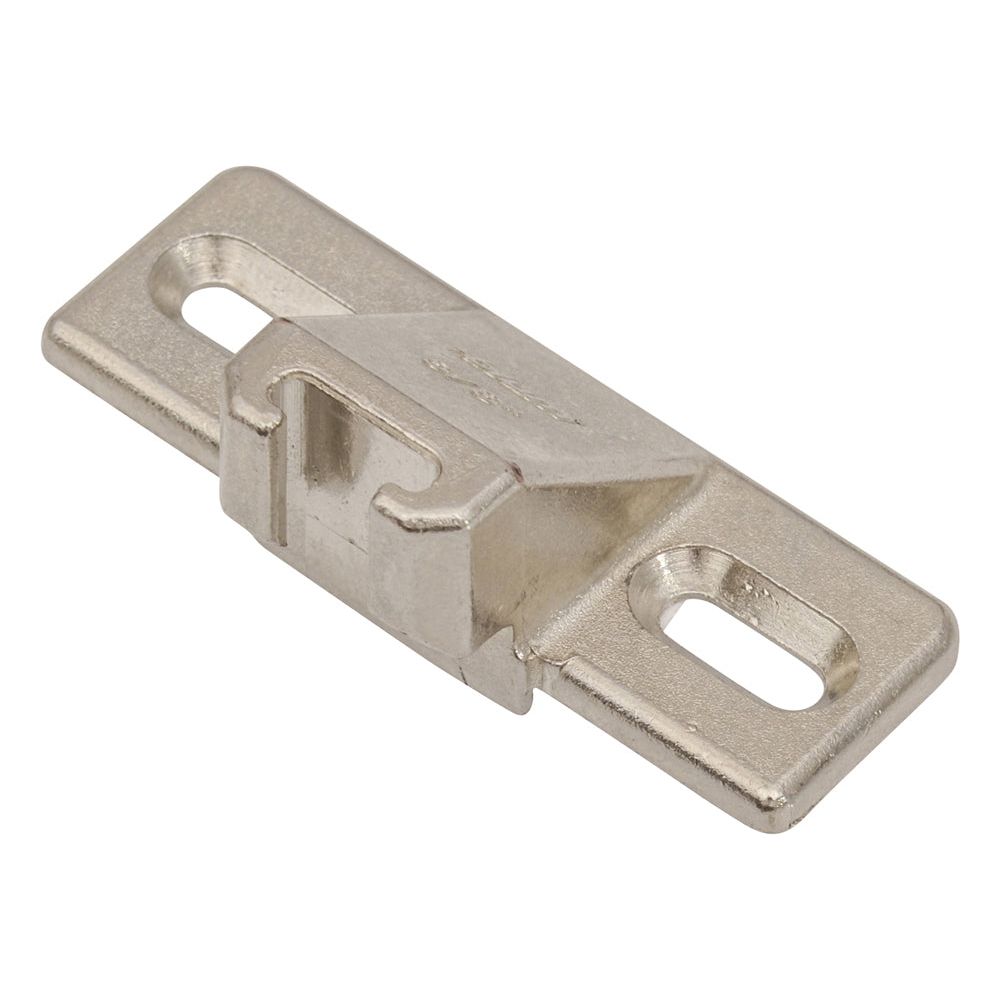

  • These mounting plates are for use with the Blum Compact 33 hinge (our SKU 652276).
  • These mounting plates mount on the inside edge of the cabinet face frame.
  • When replacing worn out or broken Blum hinges. It is a good idea to replace all the hinges on your door at the same time.
  • There are nine different mounting plates. Each plate is for a different door overlay. To choose which plate is correct for your door, simply measure your door overlay and match it up to the overlay dimension listed. There is a link found under Resources that will help you measure your overlay.
  • Screws are not included.

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10258

  • Manufacturer
    Blum
  • Model Number
    130.1100.24 (1/4")

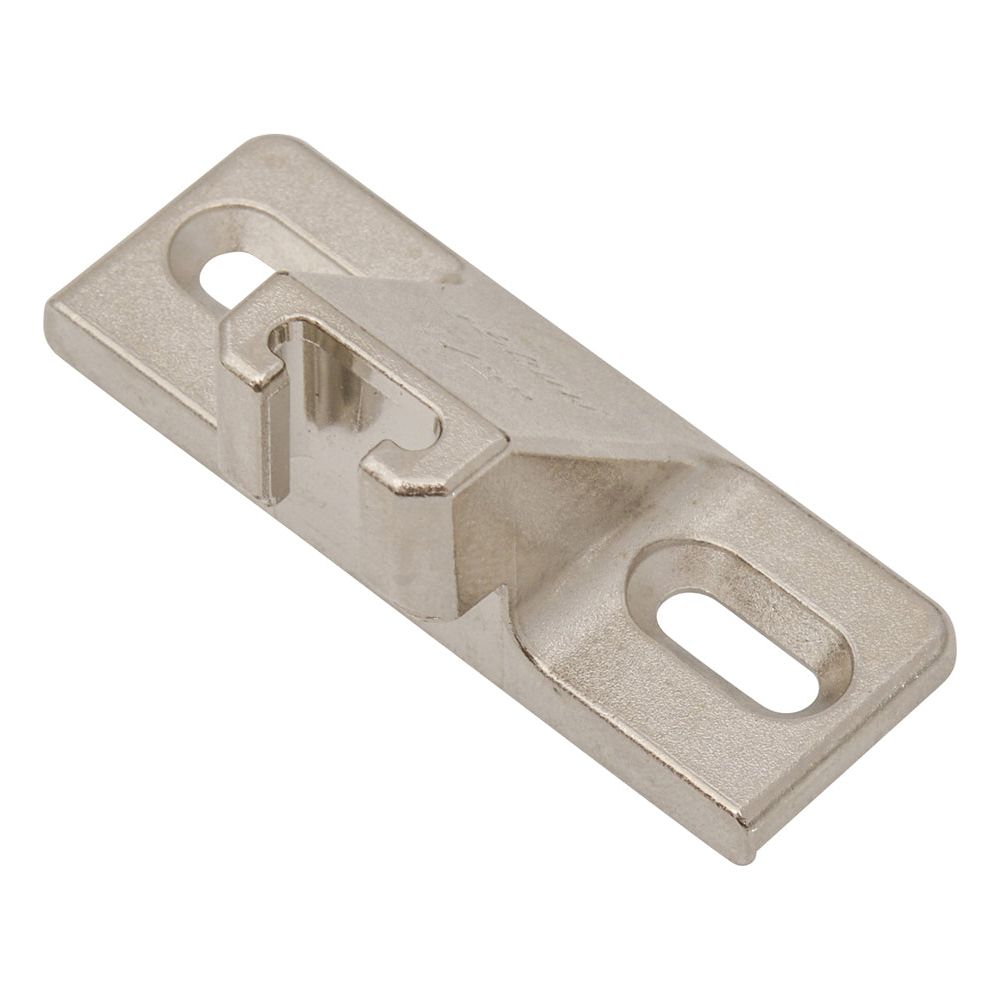

    130.1100.23 (1/2")
    130.1100.26 (5/8")

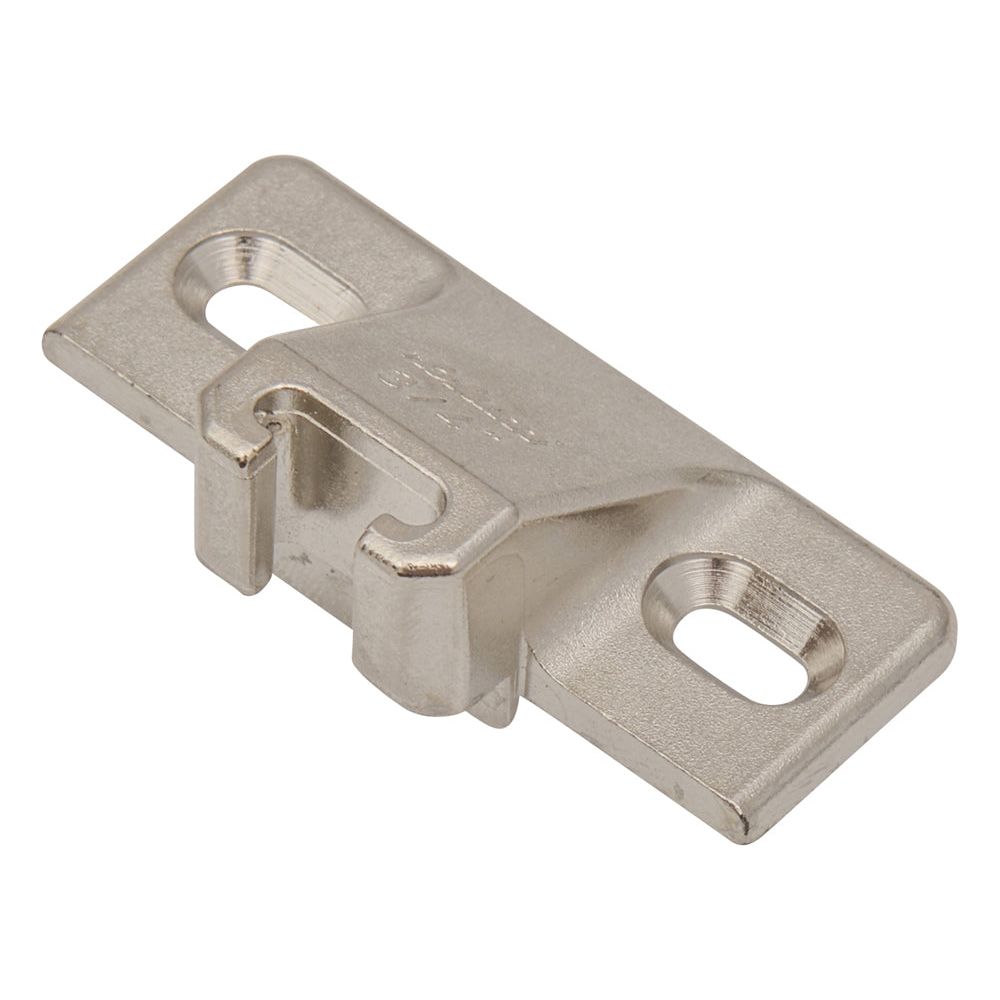

    130.1100.22 (3/4")
    130.1110.02 (1")
    130.1120.02 (1-1/8")
    130.1130.02 (1-1/4")
    130.1140.02 (1-3/8") - Discontinued
    130.1150.02 (1-1/2")
  • Finish Name
    Nickel
  • Material
    Cast Metal
  • Plate Connection Type
    Screw-On
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #6 Flat Head Screws (Our SKU 652360)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 21 reviews
90%
(19)
5%
(1)
5%
(1)
0%
(0)
0%
(0)
M
Maribeth K.

Exact part I needed to fix my cabinet door! Got the right size in one try because of the awesome measurement instructions provided! Also arrived in a timely manner

M
Mark L.
Blum edge mount

Finally … I was able to find the correct mounting plate I needed!

R
Roger G.
Hinge replacement

These hinges & mount plates were a perfect replacement for my 20+ year old cabinet hardware. I would order them again.

I
IAN M.
Kitchen cabinet door repairs

Excellent customer service

r
richard a.
Perfect replacement

Arrived timely, they fit the existing cutout perfectly, but required new drill holes both on the cabinet door and for the hinge connection on the cabinet, so 4 new holes per hinge. But it's great to have smoothly opening and closing cabinets that don't gap!
