Blum  |  SKU: 701100

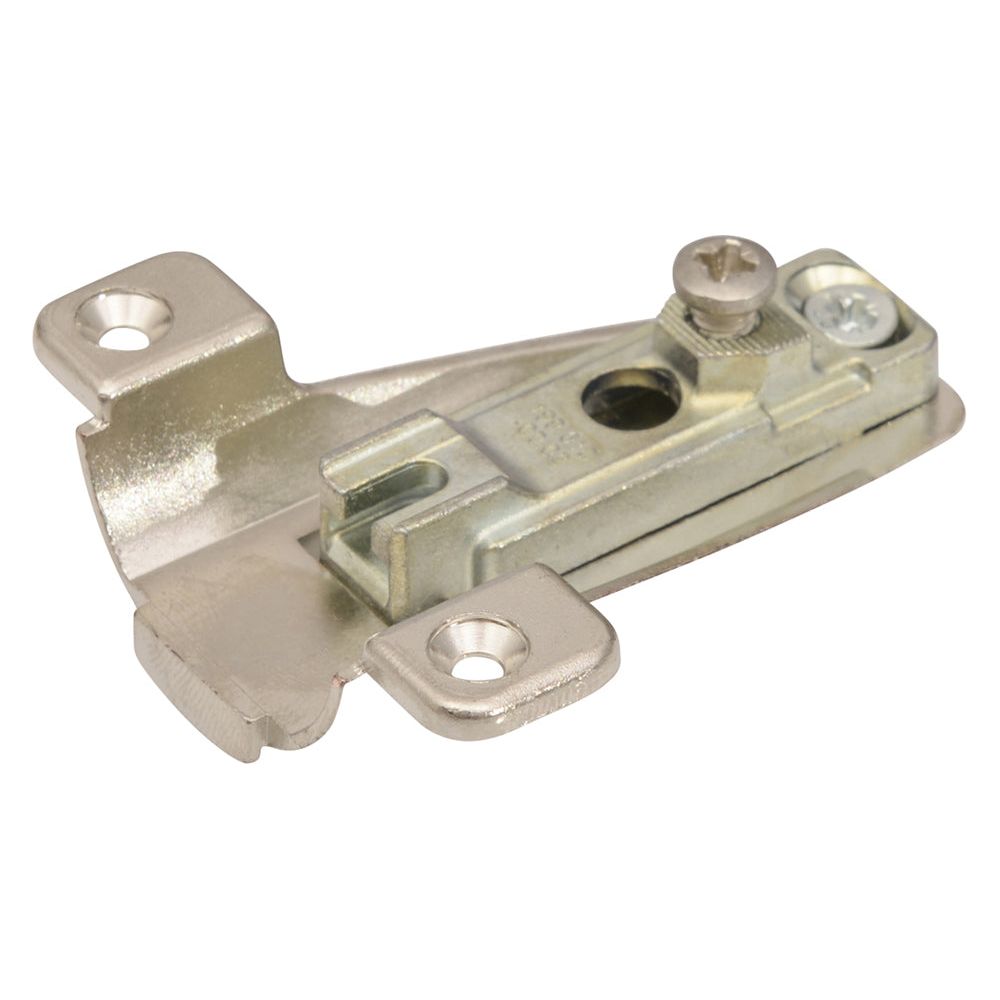

Blum Modul Mounting Plate for Pie Cut Corner Doors

$1686 Each

Fasteners Not Included

Description

  • Blum mounting plate for pie cut corner doors. Also used for non-pie cut corner doors.
  • This mounting plate attaches to a cutout in the cabinet face frame.
  • It is used with Blum's "Modul" 170 degree (SKU 652000) hinges. Does not work with Blum's "Clip Top" style hinges.
  • The hinge attaches to the mounting plate with a screw rather than the current clip on system.
  • In the case of a pie cut corner installation, this mounting plate holds the two doors to the cabinet face frame.

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 701100

  • Manufacturer
    Blum
  • Model Number
    199.0100.02
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Lazy Susan/Corner
  • Plate Connection Type
    Screw-On
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Screws (Our SKU 652360)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 13 reviews
92%
(12)
0%
(0)
8%
(1)
0%
(0)
0%
(0)
T
Tejesh S.
Blum Modul Mounting Plate for pie cut corner doors

Perfectly fit.
Excellent customer service

j
jaime
blum modem mounting plate

this was the exact piece we needed. it was a wonderful fact that we were able to find it in hardware source. they are the best!

R
Ronnie
Great Quality, fast delivery

The hardware description and photo was accurate. It’s an exact replacement of the original broken cabinet mounting plate. It was an easy, quick transaction and definitely will shop here again for hardware parts. Thank you

P
Peter S.
Cast metal and proprietary

Unfortunately, the Blum Modul Mounting Plates break with age due to being made from cast metal. And the pie cut design does not allow for replacement with other more readily available cabinet door hinges that seem to have adopted industry standard mounting measurements.

I feel fortunate to have found these mounts for our cabinets we installed in 2005 through Hardware Source. Could not find them anywhere else.

a
abbas t.

Blum Modul Mounting Plate for Pie Cut Corner Doors
