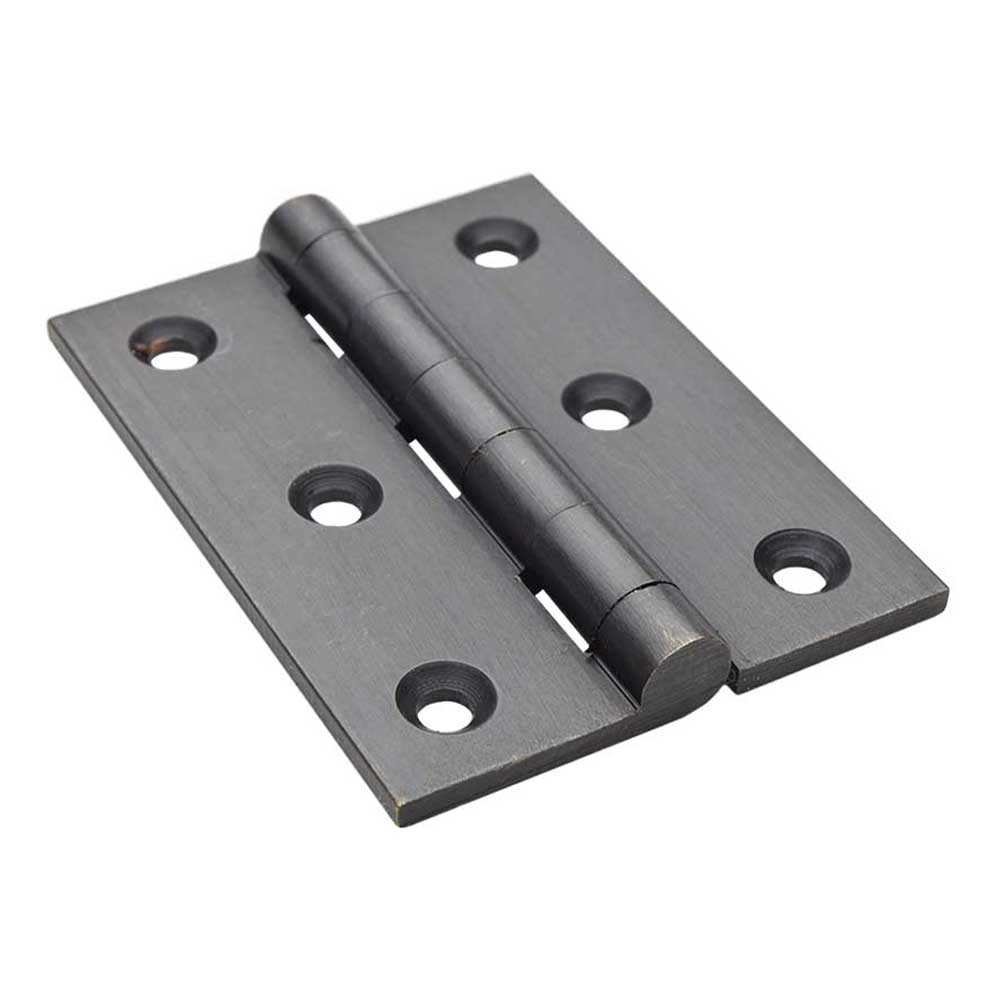

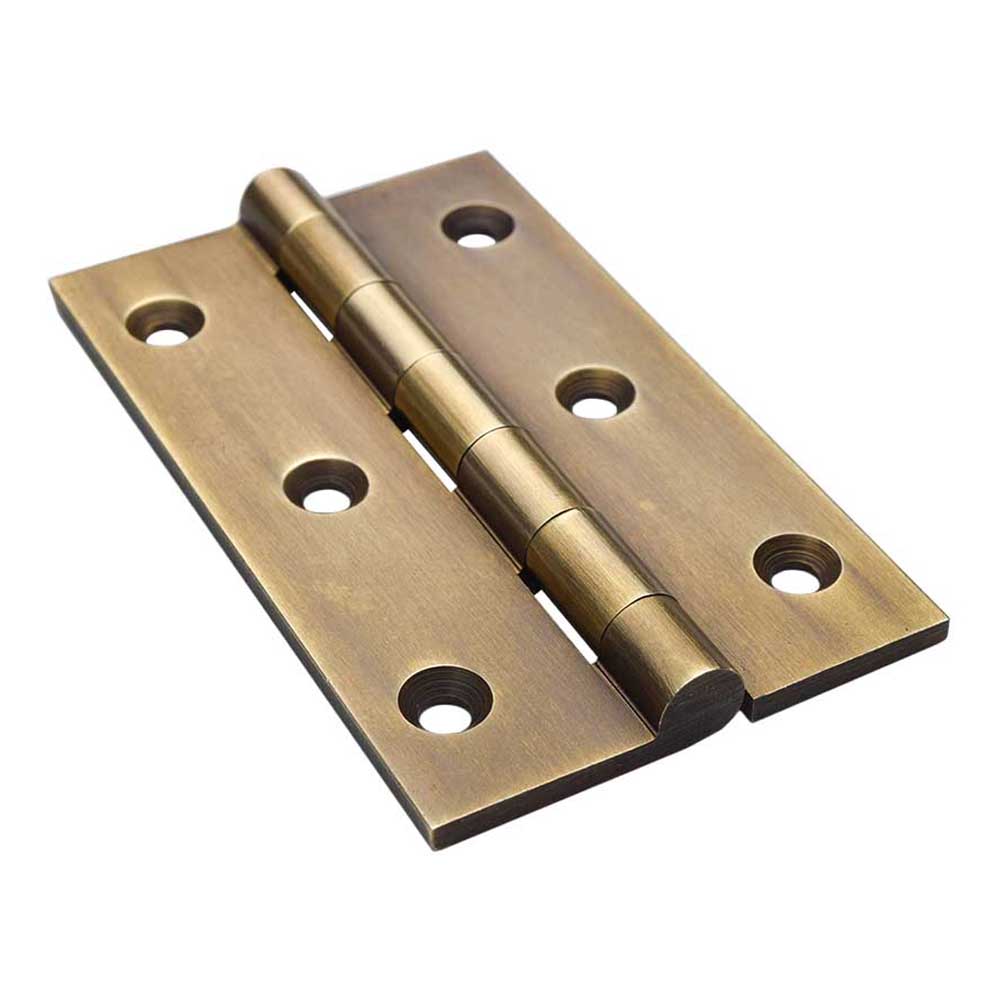

Precision Butt Hinge
Couldn't load pickup availability
Description
Description
- These high quality hinges are machined from solid brass extrusions for exceptional precision and heft. The knuckles are fitted with extremely close tolerances.
- Made for door thicknesses ranging from 5/8" to 3/4".
- Leaf thickness is 3/32"
Fasteners
- Two sets of flat head phillips wood screws are included. One set are "pre-installation" screws. Installing these screws first facilitates the installation of the permanent screws, allowing them to be installed with less force to preserve the finish. The permanent screws are made from solid brass and finished to match the hinge. It is highly recommended that you do not install the permanent brass screws with a power screwdriver.
- 2" H x 1-1/2" W
- Made for doors 5/8" to 3/4" thick
- #5 x 3/4" screws
- 2-1/2" H x 1-1/2" W
- Made for doors 5/8" to 3/4" thick
- #5 x 3/4" screws
- 2" H x 1-3/4" W
- Made for doors 7/8" to 1-1/8" thick
- 3/32" leaf thickness
- #6 x 3/4" screws
- 2-1/2" H x 1-3/4" W
- Made for doors 7/8" to 1-1/8" thick
- #6 x 3/4" screws
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10285
-
MaterialBrass
-
Material Thickness
-
Removable PinNo
-
Decorative TipsNo
-
Mounting Hardware Included
-
Mounting Hardware Type
