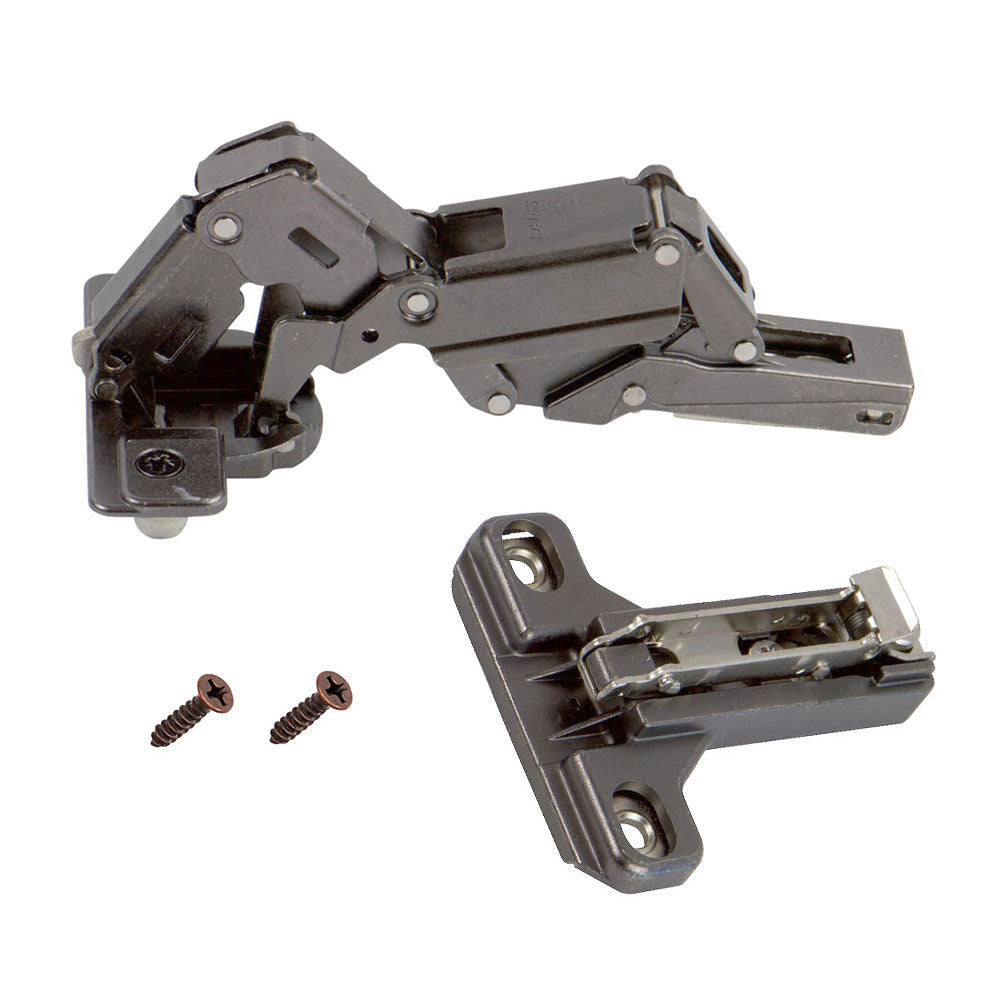

155 Degree Soft Close Hinge for Face Frame Cabinets - Bundle
Couldn't load pickup availability
Description
Description
- Titanium finish European style hinge with 155 degree opening angle.
- For face-frame overlay doors.
- Titanium plating over steel base material. This plating provides a nice aesthetic while offering superior corrosion resistance.
- Please note that these hinges do have some nickel parts that are visible. For example, the adjustment screw, rivet ends and some visible internal parts are nickel finish.
Zero Protrusion Feature
- This hinge also features "zero protrusion" for cabinets with pull outs (drawers, pull out shelves, etc).
- With this hinge installed, once the doors reaches a 90 degree opening angle, the inside corner of the door will be completely clear of the opening so that the door will not interfere with the pull out.
- As with any zero protrusion hinge, the hinge must be located either above or below the pull out.
Installation
- Hinge cup installs in a 35mm (1-3/8") diameter cup drilled in the back of the door
- Cup depth needs to be a minimum of 11 mm deep (7/16").
- This hinge and the proper mounting plate will accommodate any overlay from 3/8" to just under 7/8".
- European hinges are a two part hinge, made up of the hinge and a mounting plate. Use the document found under Downloads for information on how to choose the correct mounting plate.
- Each hinge comes with two plastic dowels and two dowel screws.
- Dowels and dowel screws are recommended for doors that are made from pressed or manufactured wood
- Dowel screws are regular wood screws that are a slightly shortened and blunt version of a wood screw.
- For solid wood doors, wood screws (no dowels) are recommended.
- For solid wood doors, discard the plastic dowels and either use the dowel screws or purchase regular bronze #6 flat head wood screws (2 each per hinge, our SKU 286255)

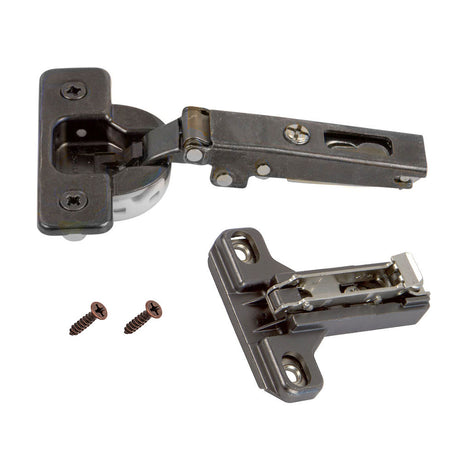

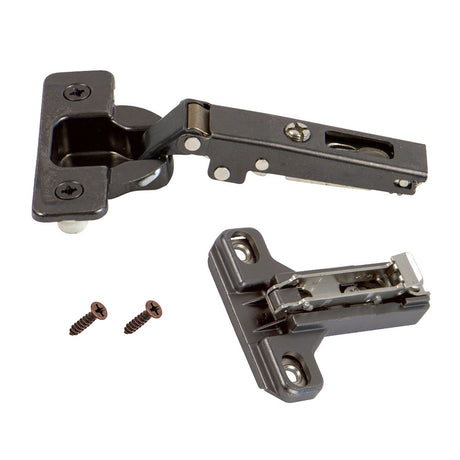

What's Included
- 1 x Titanium Finish 155 Degree Soft Close European Hinge
- 1 x Face Frame Mounting Plate (two options available).
- 2 x Plastic Dowels and Dowel Screws (preattached to hinge)
- 2 x #6 Screws for Mounting Plate
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10061
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeHalf Overlay, Full Overlay
-
Soft CloseYes
-
Plate Connection Type
-
Opening Angle155 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
