Blum  |  SKU: 652308, 268225, 652360

Blum 120 Degree Hinge for Face Frame Inset Cabinets - Bundle

$810 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 2 screws for the hinge. Screws for the mounting plate sold separately.

Description

  • Please reference the minimum reveal information document under Downloads to verify if this bundle will work for you.
  • Blum's half cranked clip top hinge for face frame inset cabinets.

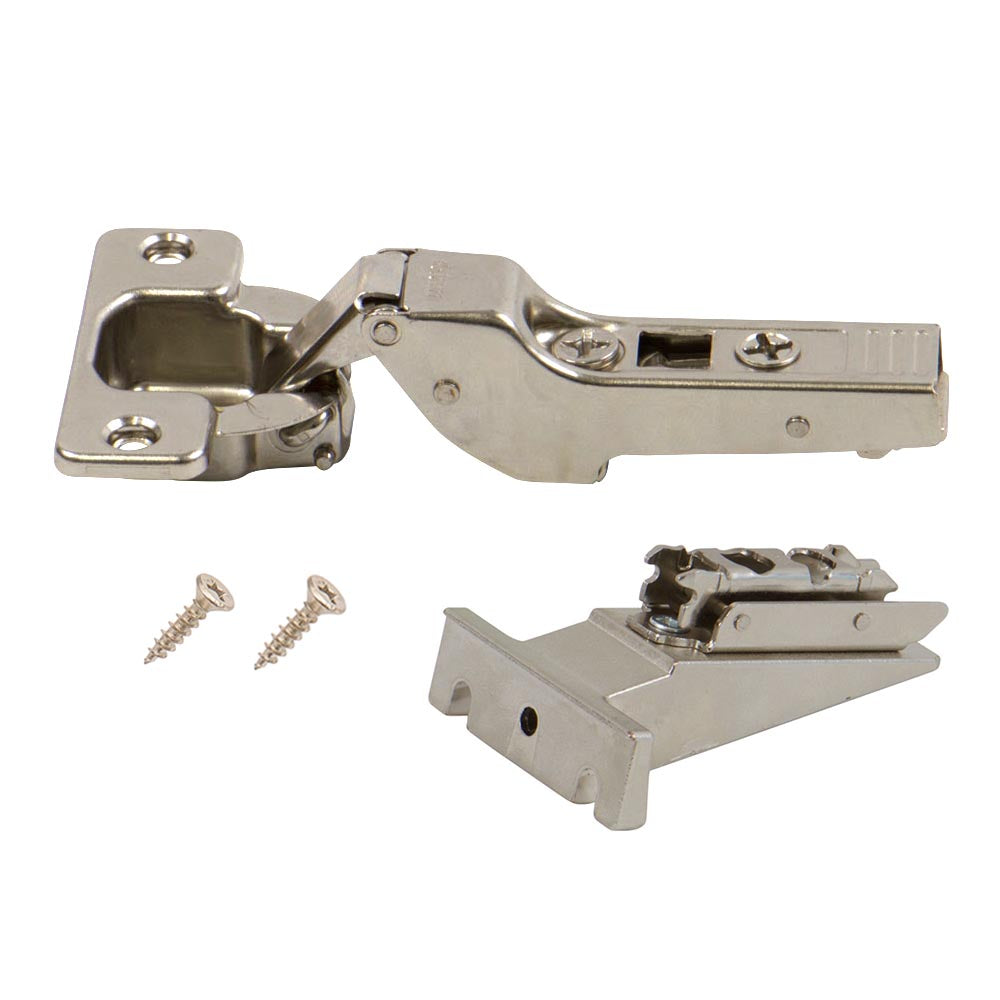

What's Included

  • 1 Blum Half Cranked Hinge (Blum #71T5650)
  • 1 Blum Face Frame Adapter Mounting Plate
  • Two #6 x 5/8" screws for the hinge

Mounting Screws for Mounting Plate (Not Included):

  • Two #8 pan head screws are required for the mounting plate but are not included in this bundle. This is because at the time we only sell these screws in packs of 5. To purchase these screws, please see the related products (SKU 135410).

Available for purchase separately:

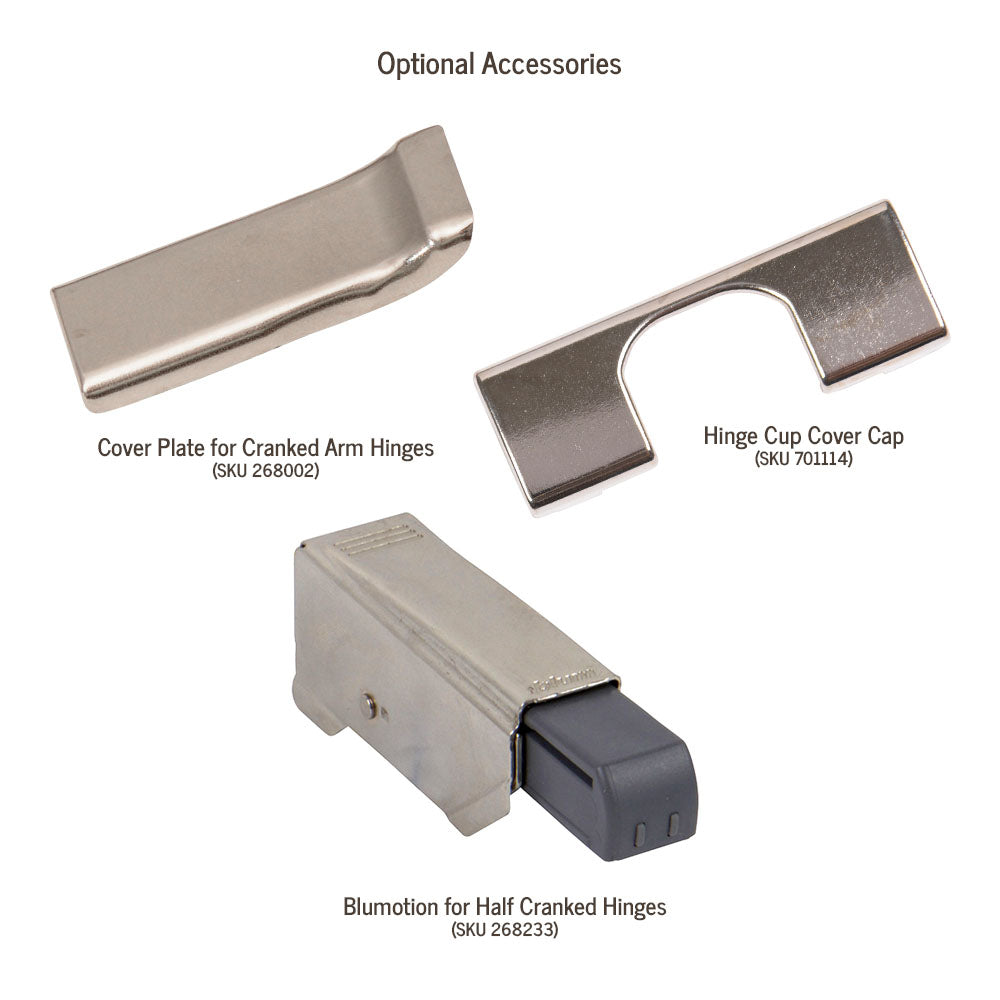

  • Cover Plate for Arm Part of Hinge - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268002)
  • Cover Plate for Cup Side of Hinge - Hides the screws on the cup side providing a cleaner appearance (SKU 701114)
  • Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268233)

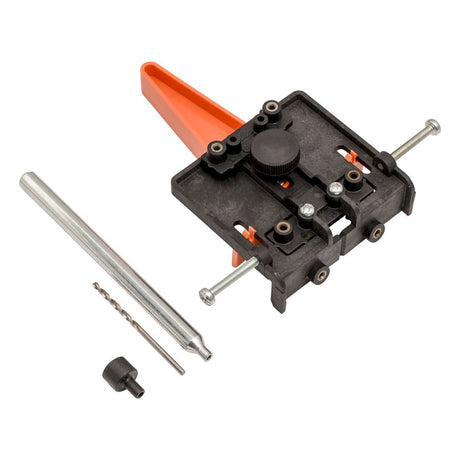

  • Blum Platemate. To drill the angled holes for the adapter plate the purchase of the Blum Platemate is highly recommended although not absolutely necessary. The Blum Platemate clamps on the edge of the face frame and allows accurate drilling of the adapter plate screw holes. PLEASE NOTE: THE BLUM PLATEMATE IS A NON-RETURNABLE ITEM. (SKU 268227)
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)
  • 35mm Forstner Bit, for new installations (SKU 204000)
  • Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10110

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71T5650
    Mounting Plate: 175H5030.21
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Flush Inset
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    120 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Type
    #6 x 5/8" Screws included for the hinge side. Screws for the mounting plate sold separately (see description for details)
