Blum  |  SKU: 652296

Blum Clip Top Frameless Mounting Plate

$322 Each
Mounting Plate Height

Fasteners Not Included

Description



  • This Blum mounting plate mounts on the inside wall of the cabinet (not on the face frame).
  • For use with Blum's Clip Top hinges.
  • Mounting plates are sized by height. Each mounting plate in combination with the bore distance of the hinge creates the door overlay (for an overlay door) or the reveal (for an inset door or back to back door)
  • For back-to-back door installations, we offer Back-to-Back screws. Back-to-Back installations are where two doors are installed to the same cabinet side panel. It is recommended that the mounting plates for these hinges be installed with Back-to-Back screws (a male/female type screw) so that the screws do not interfere with each other.



Replacements

  • When replacing worn out or broken Blum hinges, it is a good idea to replace all the hinges and mounting plates on your door at the same time.
  • If you have an existing Blum mounting plate that you would like to replace, simply match the height of your plate to the height of one of these plates. See the document found under Downloads to learn how to measure the size of your existing plate.

Actual Mounting Plate Heights

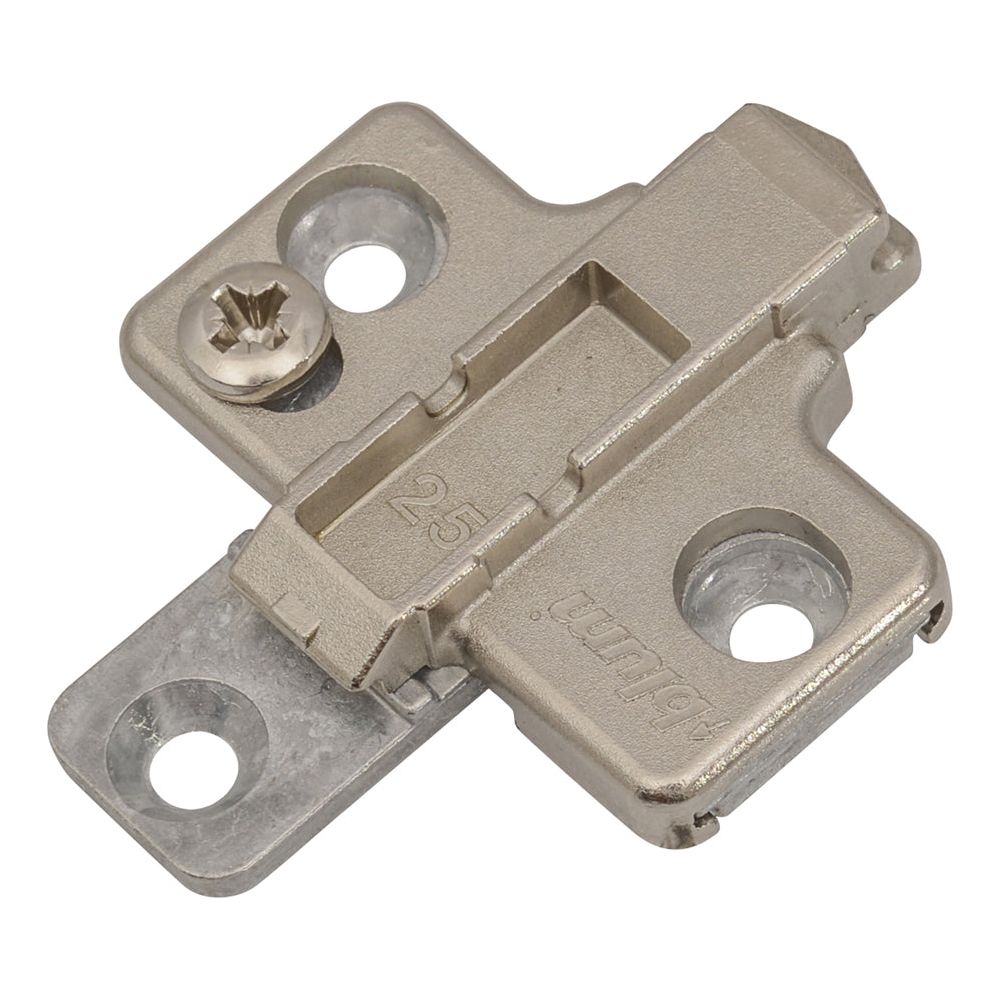

  • 0mm (Blum #175H710): 5/16"

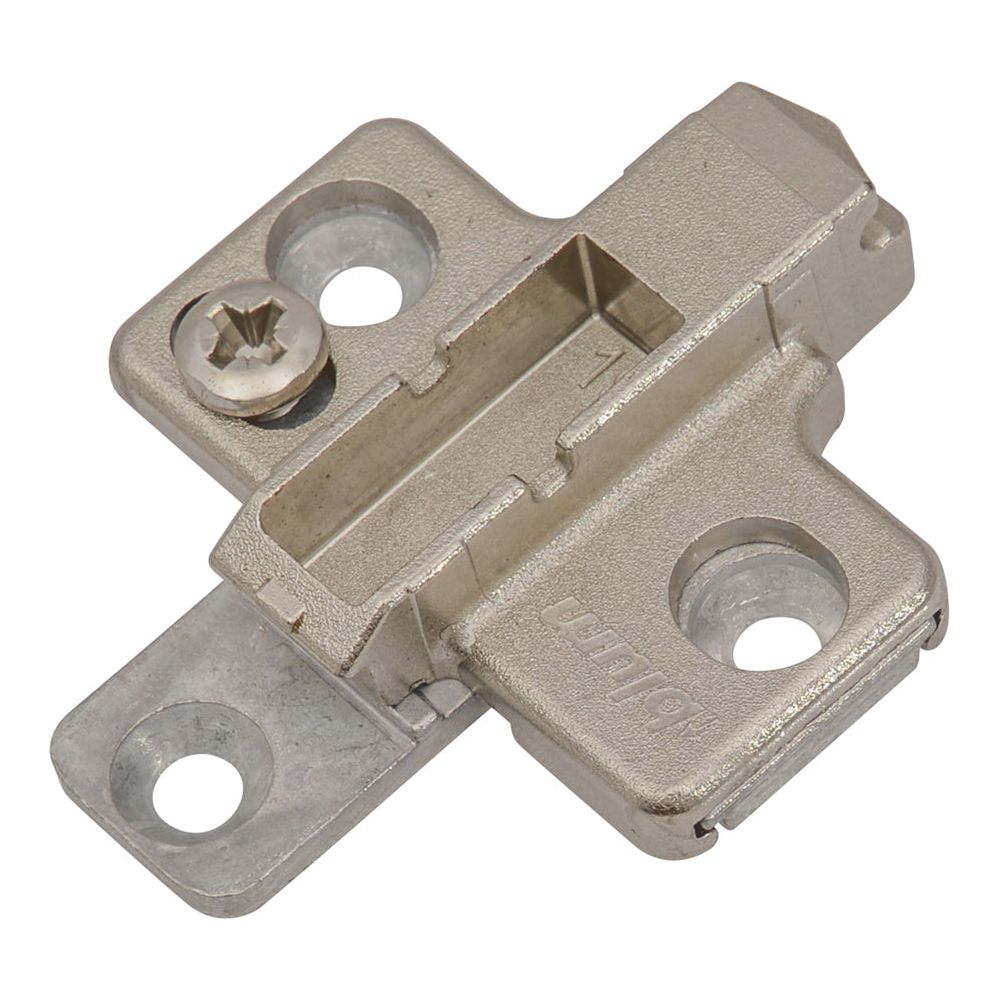

  • 3mm (Blum #175H713): 7/16"

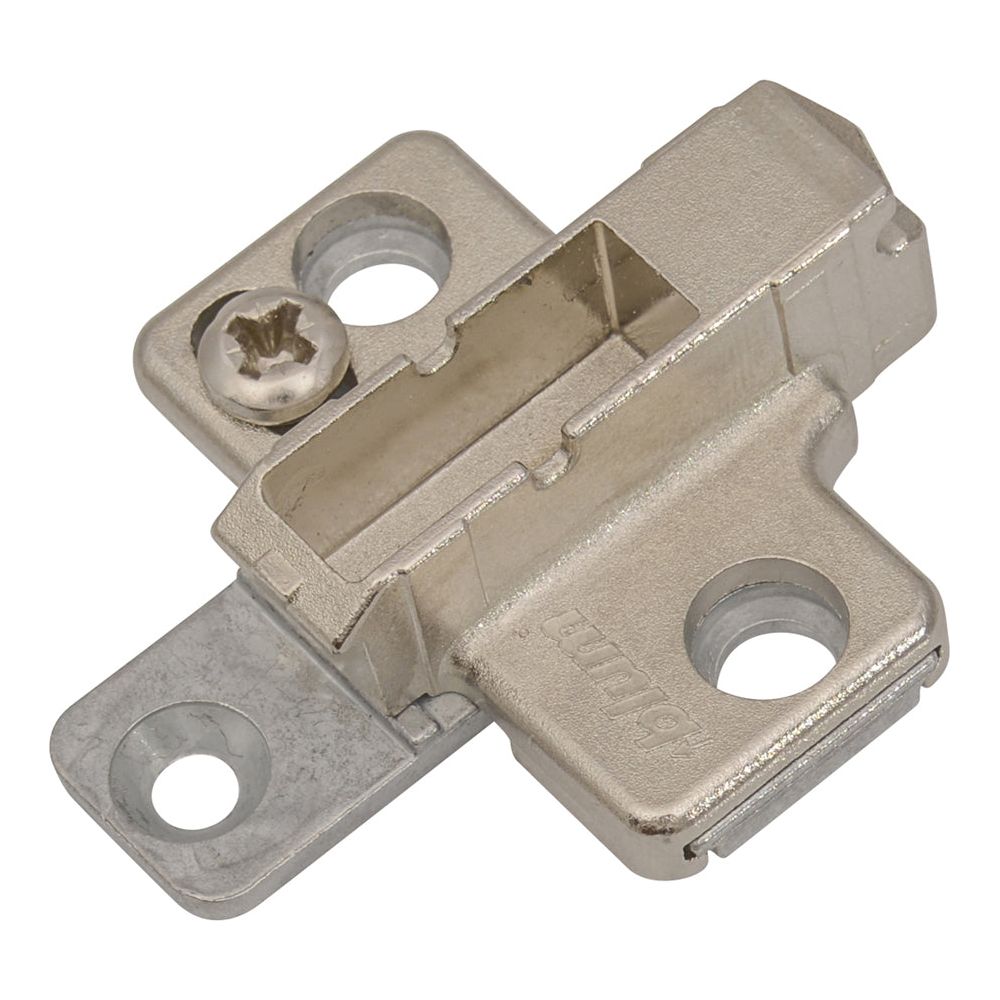

  • 6mm (Blum #175H916): 9/16"

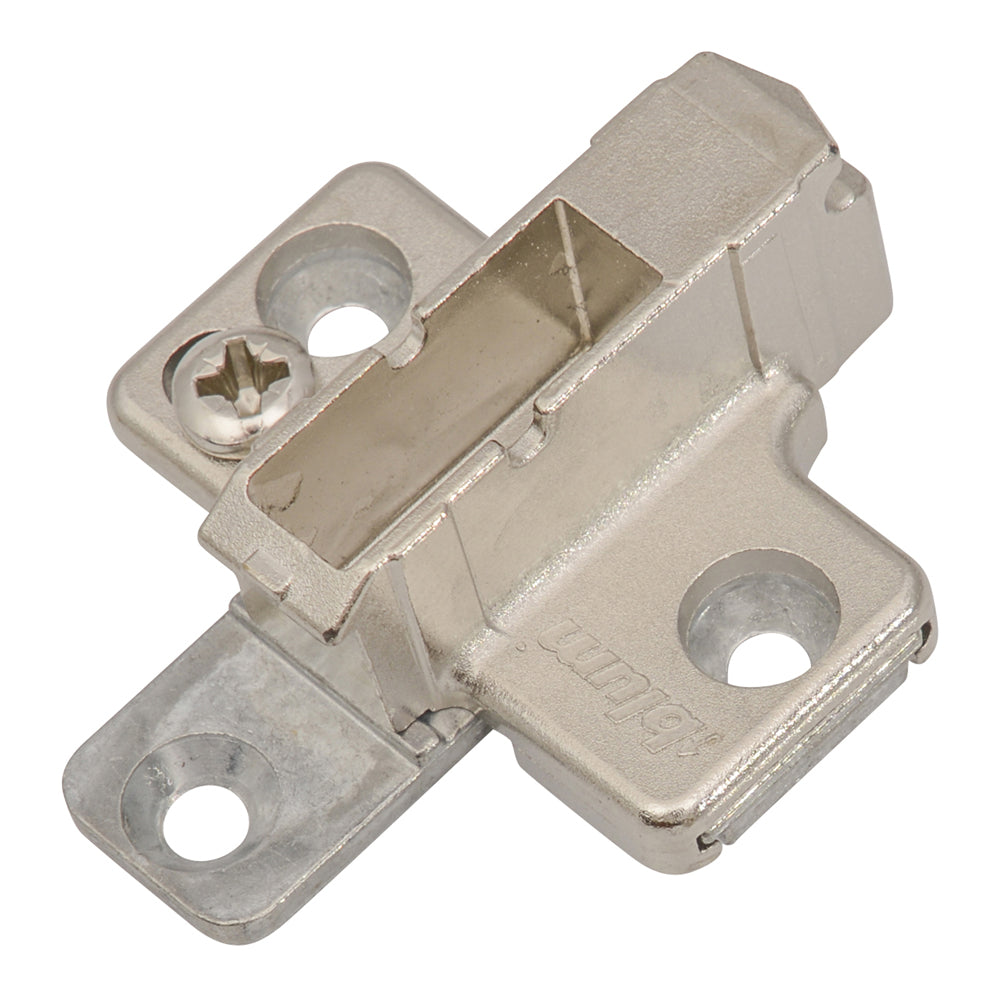

  • 9mm (Blum #175H719): 11/16"

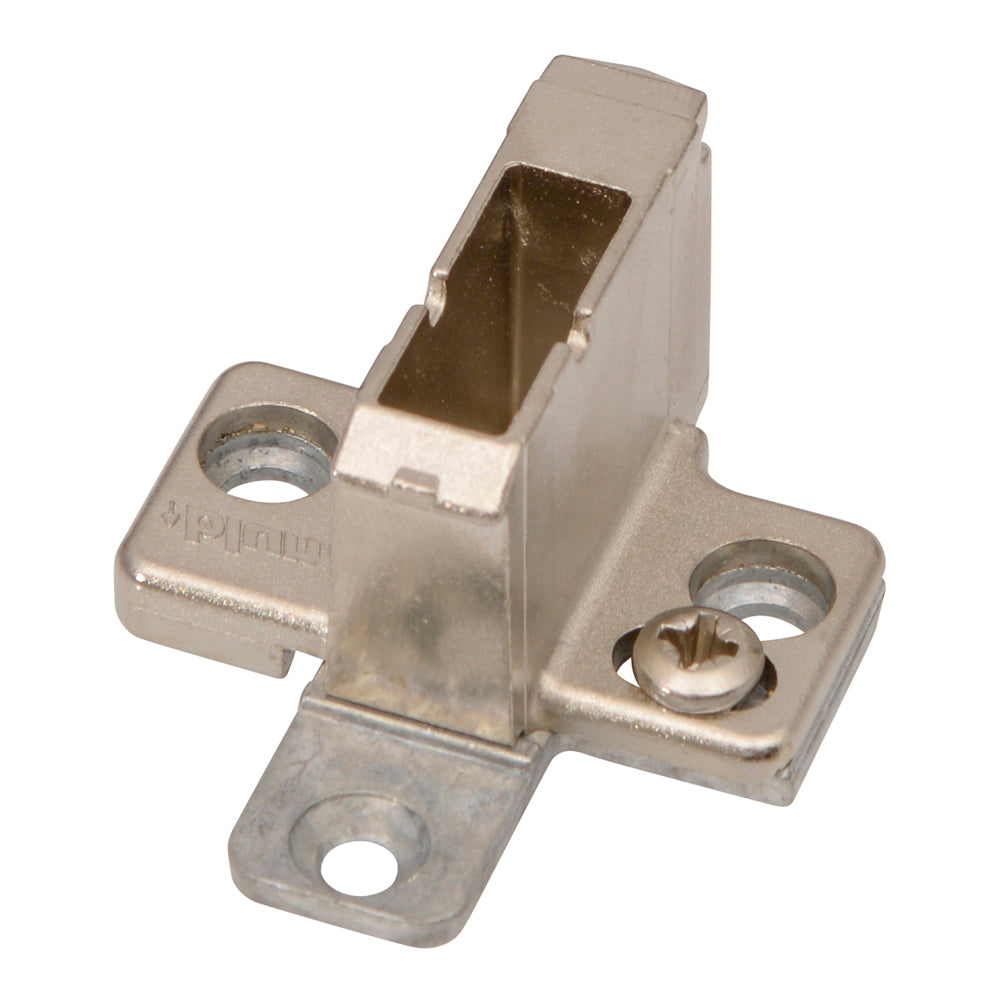

  • 18mm (Blum #175H719.22):

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10262

  • Manufacturer
    Blum
  • Finish Name
    Nickel
  • Material
    Cast Metal
  • Plate Connection Type
    Clip-On
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #6 Flat Head Screws (Our SKU 652360)
