Generic Pie Cut Corner Hinge - Bundle
Couldn't load pickup availability
Description
Description
- Generic European style hinge designed for corner cabinets. Also known as "Pie Cut" cabinet doors.
- This hinge attaches the middle door to the outer door.
- A pie cut corner door typically uses separate 170 degree European style hinges to attach the two door assembly to the cabinet frame.
Installation
- Hinge cup size is 35mm.
- Maximum opening angle is 105 degrees.
- Requires a 3mm bore distance. This is the distance from the edge of the door to the edge of the 35mm cup drilled in the back of the door.
- Hinge and mounting plates are fully adjustable after installation.
- For door thicknesses of 5/8" and 3/4".
- For a 5/8" thick door order the 3mm mounting plate.
- For a 3/4" thick door order the 0mm mounting plate.
What's Included

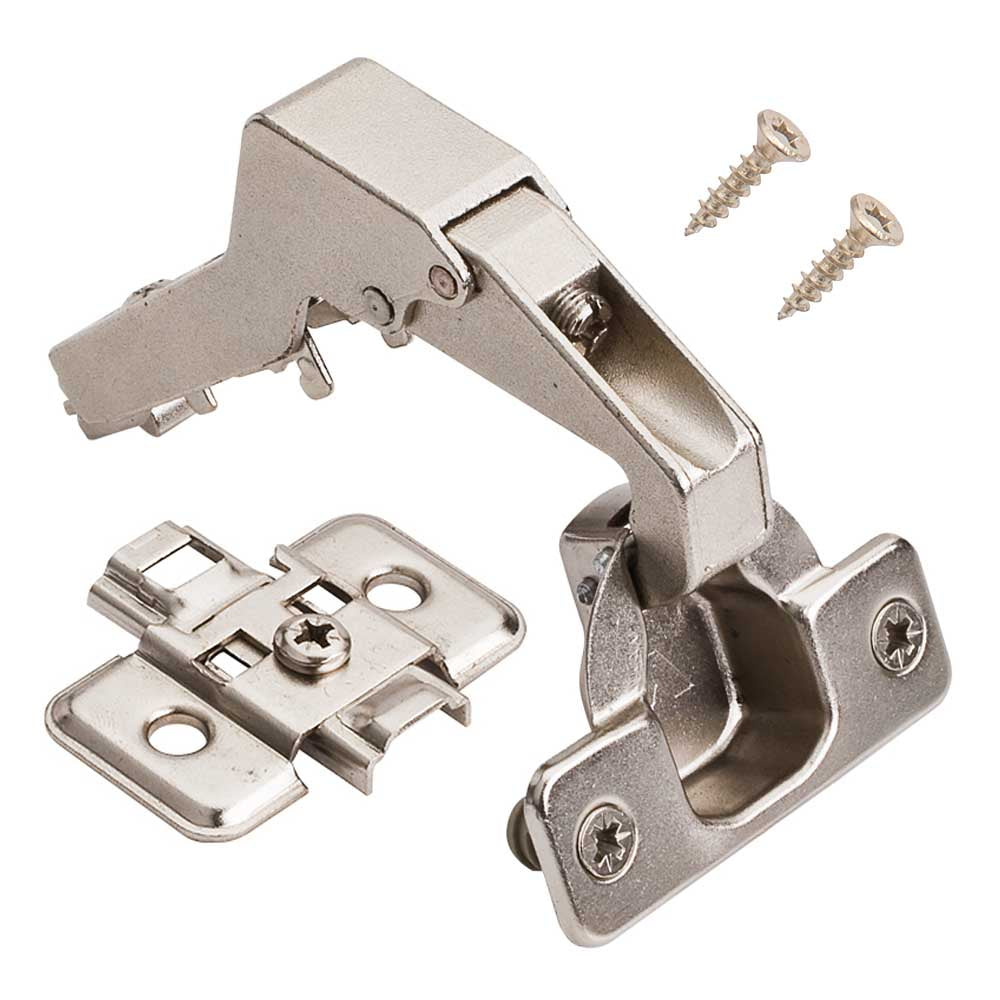

- 1 x Pie Cut Corner Hinge
- 1 x Frameless Mounting Plate. Two sizes depending on door thickness:
- For a 5/8" thick door order the 3mm mounting plate.
- For a 3/4" thick door order the 0mm mounting plate.
- 2 x #6 Screws for the Mounting Plate
- 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).
Available for purchase separately:
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- #6 flat head wood screws for the hinge side, can be used in place of the included plastic dowels and dowel screws (SKU 652360)
- 35mm Forstner Bit, for new installations (SKU 204000)
