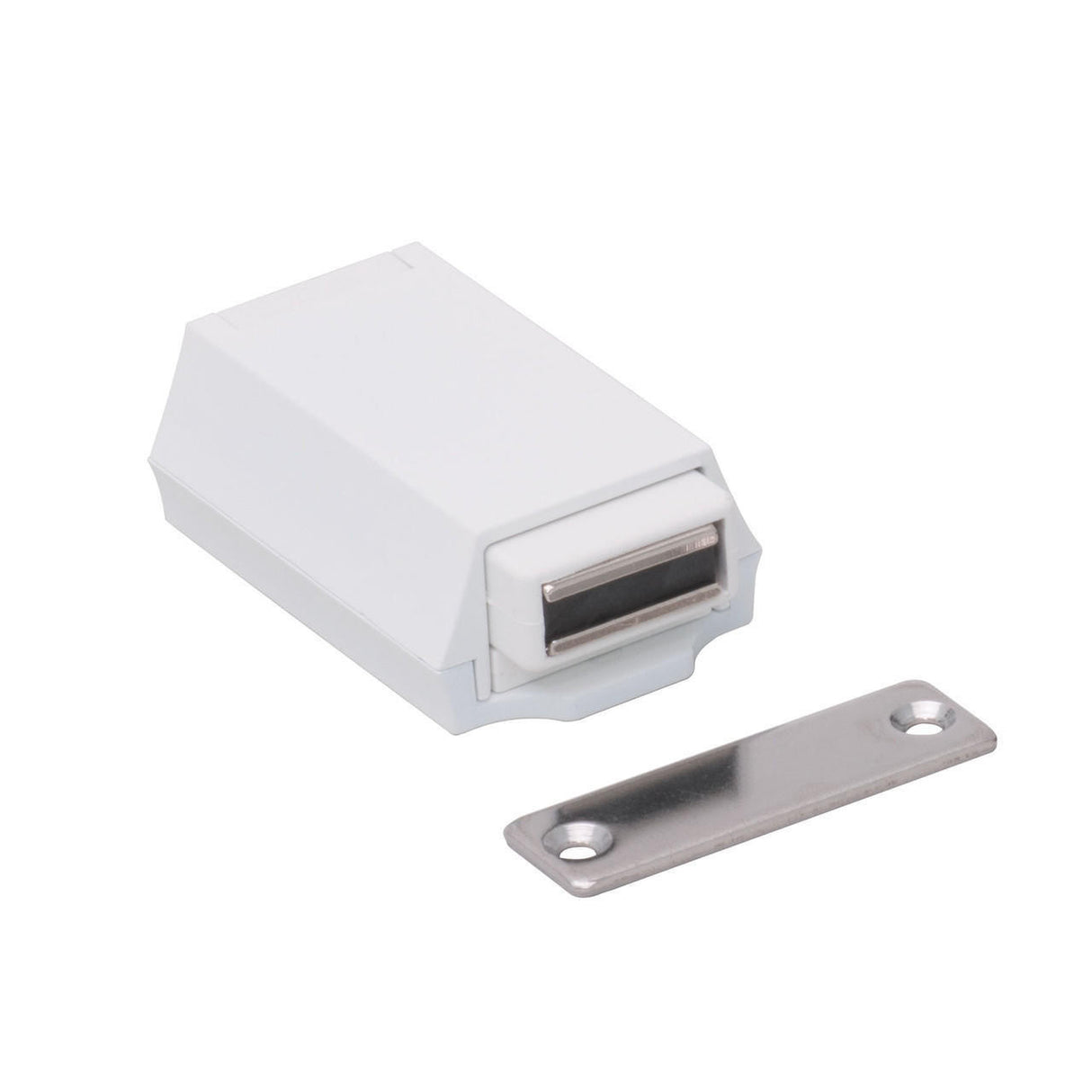

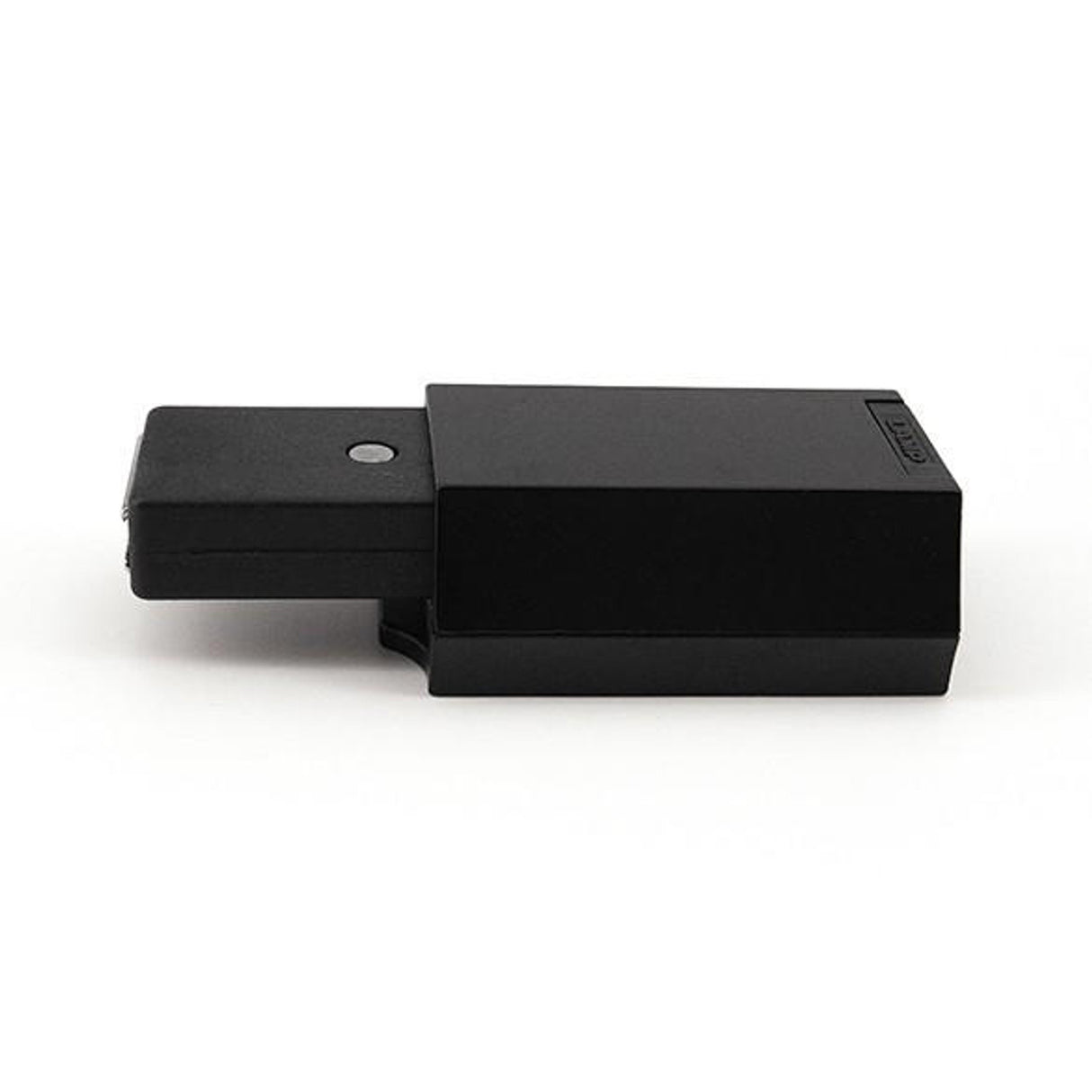

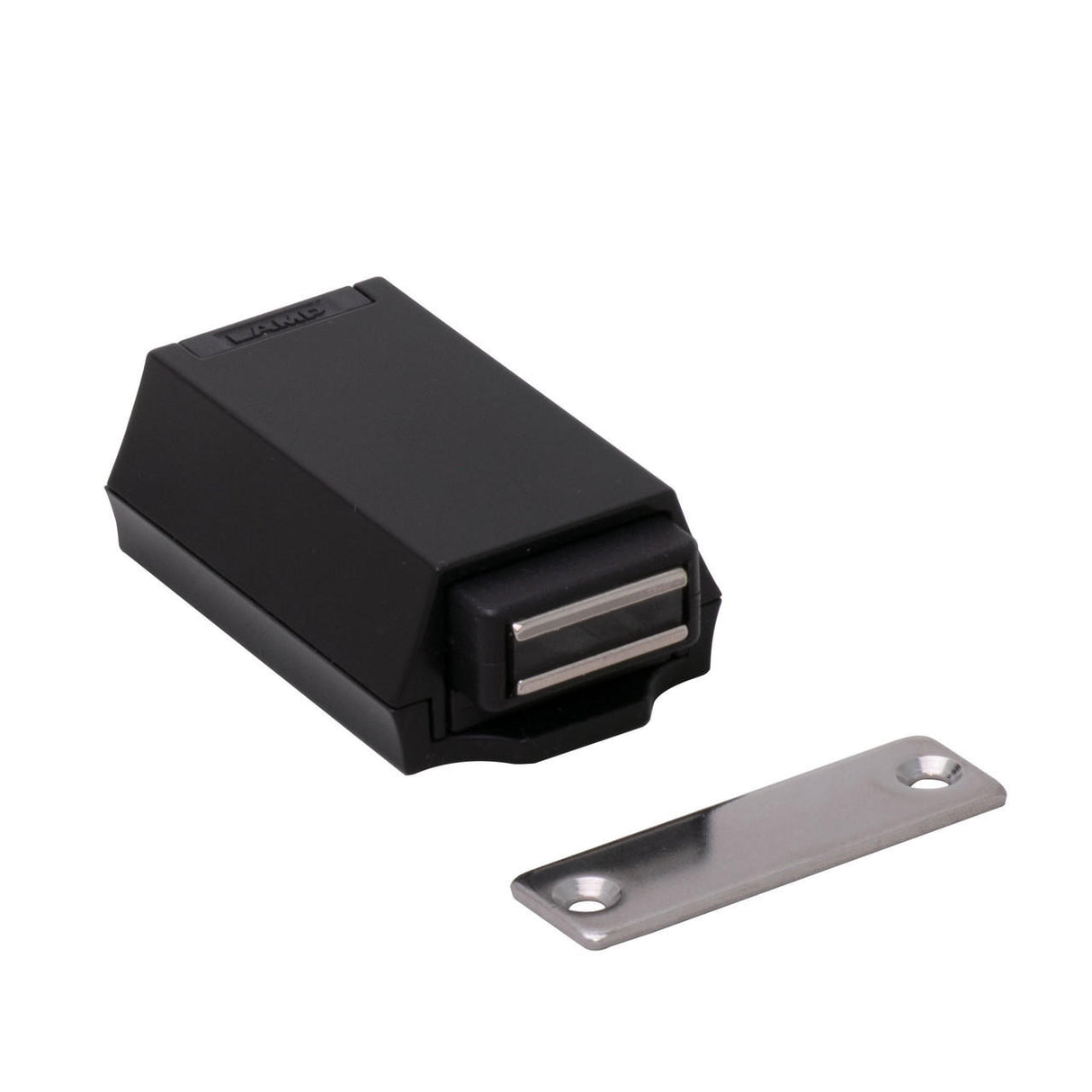

Push-To-Open Door Latch for Full Size Doors
Couldn't load pickup availability
Description
Description
- The best results are achieved when the touch latch is installed directly behind where you will be pushing the door to release the latch.
- This touch latch is invisible from the outside of the door.
- When you use a touch latch, no other hardware (e.g., a knob, pull, or latch) is needed on your door, giving it a clean look.

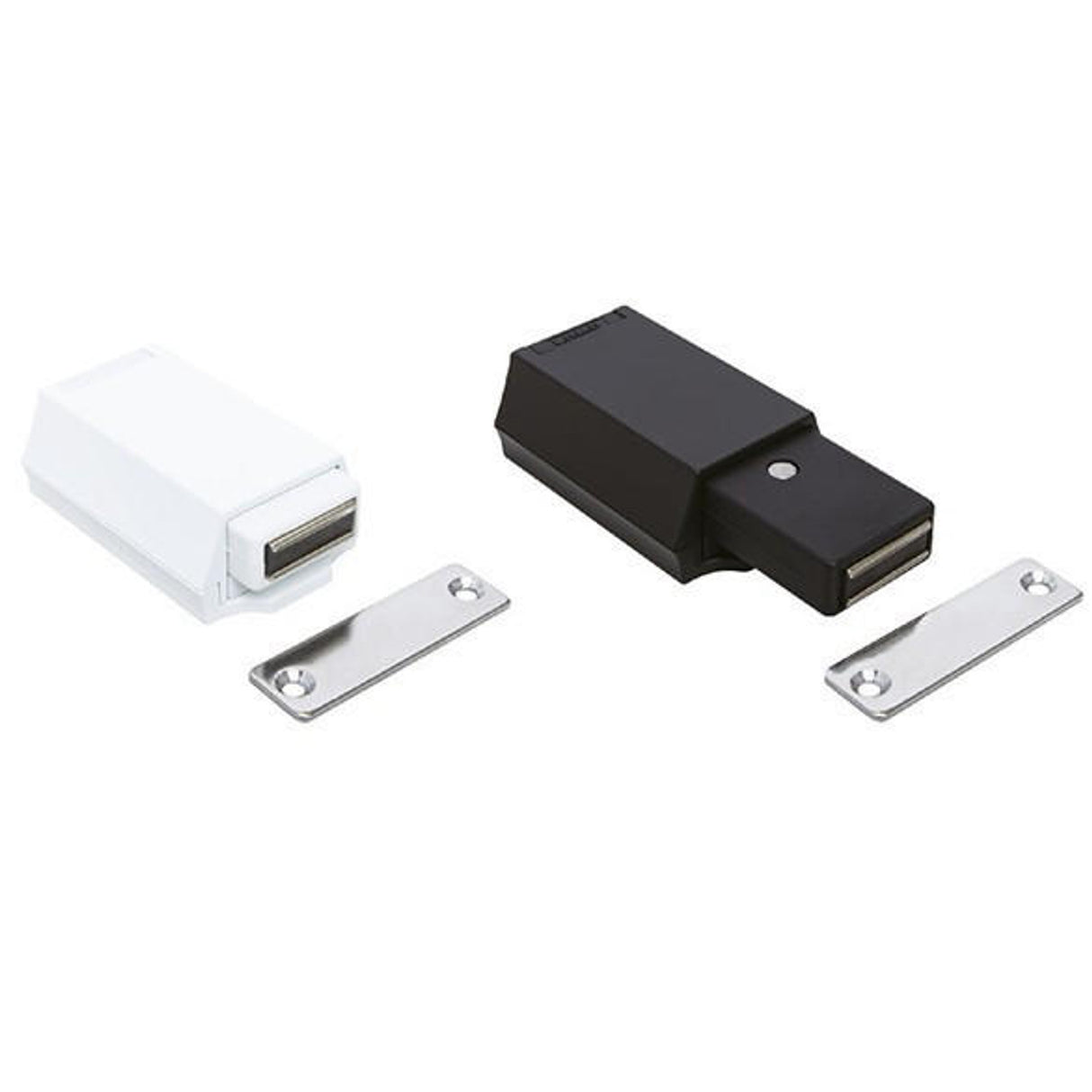

- Available in either black or white finishes only.

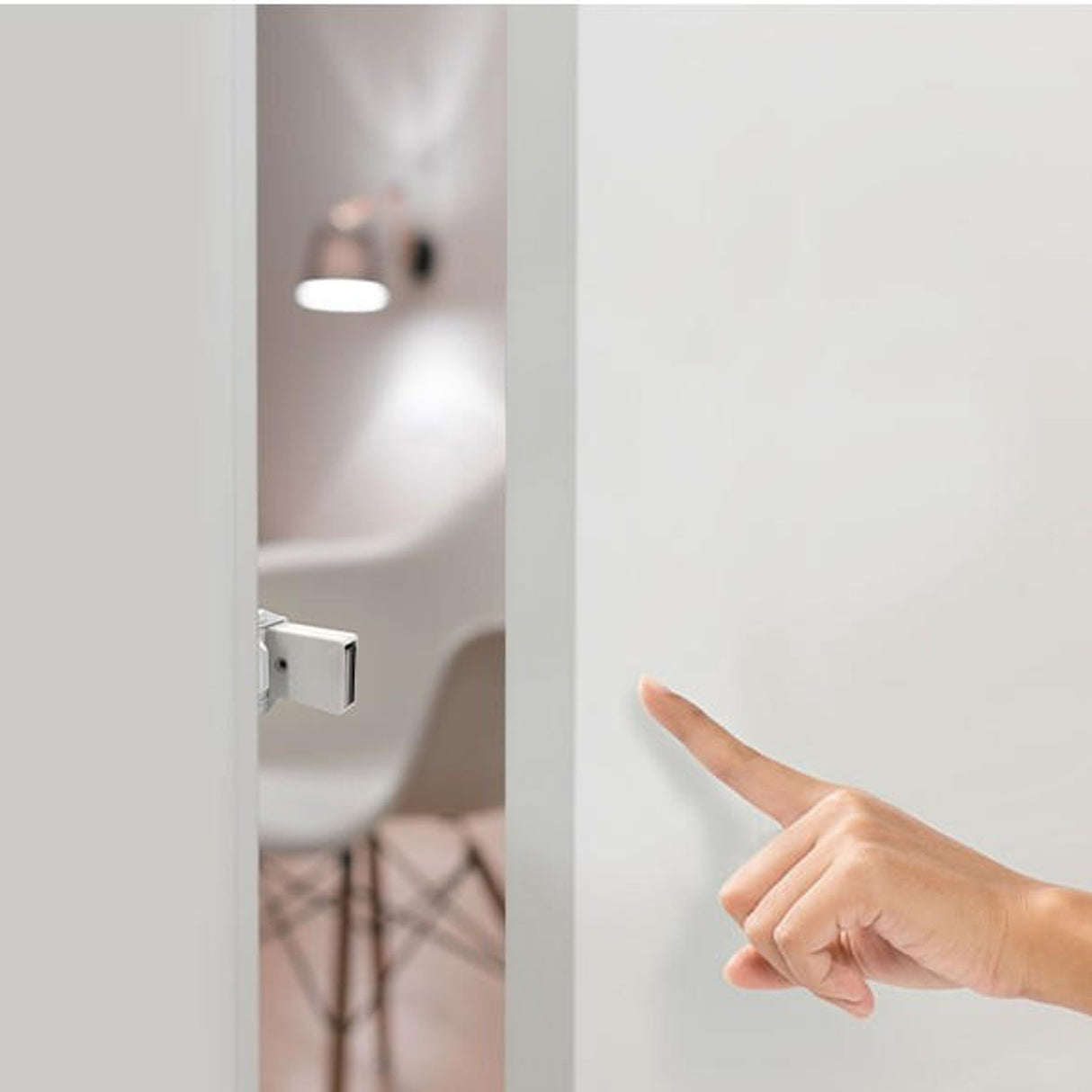

- How it works: Gently push in on the outside surface of the door. The door releases from the latch and pops outward.
- All mounting fasteners are included.
- The body and mounting plate are made from Zinc Alloy, the latch is a strong plastic polymer, the magnet is ferrite, and the strike plate is Stainless Steel.
- It is made for doors up to 96" tall and 36" wide, with a maximum weight of 275 pounds and a push force of 11 pounds.
- Ideal for use with the Sugatsune HES3D-E190 hinges found HERE.
- Passed the 100,000 open/close private cycle test.
- Magnetic force of 6.6 pounds.
- Will work on overlay and inset full size doors.
Warranty
Warranty
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C11123
-
Manufacturer
-
Model Number
-
MaterialZinc Alloy, Plastic, Stainless Steel (304)
-
Mounting Hardware Included
-
Mounting Hardware Type
