Heavy Duty British Style Strap Hinge
Couldn't load pickup availability
Description
Description
- Heavy Duty Hinges that can be reversed to use on Left Swing or Right Swing Wood Gates.
- Great for field gates, sheds, large doors.
- Size Range from 12″ to 42″.
- Premium Shell Black Powder Coating over Hot Dip Galvanized steel.
- Stainless Steel Screws included
12" Size
- Strap: 12" length, 3/16" thick, 2" wide
- Pin diameter: 1/2"
- Hardware installed on the post side of the hinge: Approximately 6-1/2" H x 2-1/4" W
- Weight rated for 60 lb per pair
18" Size
- Strap: 18" length, 3/16" thick, 2" wide
- Pin diameter: 5/8"
- Hardware installed on the post side of the hinge measures approximately 6-1/2" H x 2-1/4" W
- Weight rated for 120 lb per pair
24" Size
- Strap: 24" length, 3/16" thick, 2" wide
- Pin diameter: 5/8"
- Hardware installed on the post side of the hinge measures approximately 6-1/2" H x 2-1/4" W
- Weight rated for 160 lb per pair
30" Size
- Strap: 30" length, 3/16" thick, 2" wide
- Pin diameter: 3/4"
- Hardware installed on the post side of the hinge: Approximately 6-1/2" H x 2-1/4" W
- Weight rated for 240 lb per pair
36" Size
- Strap: 36" length, 3/16" thick, 2" wide
- Pin diameter: 3/4"
- Hardware installed on the post side of the hinge: Approximately 6-1/2" H x 2-1/4" W
- Weight rated for 240 lb per pair
42" Size
- Strap: 42" length, 7/32" thick, 2-3/4" wide
- Pin diameter: 7/8"
- Hardware installed on the post side of the hinge: Approximately 9-1/2" H x 3" W
- Weight rated for 340 lb per pair
Read More
Read More

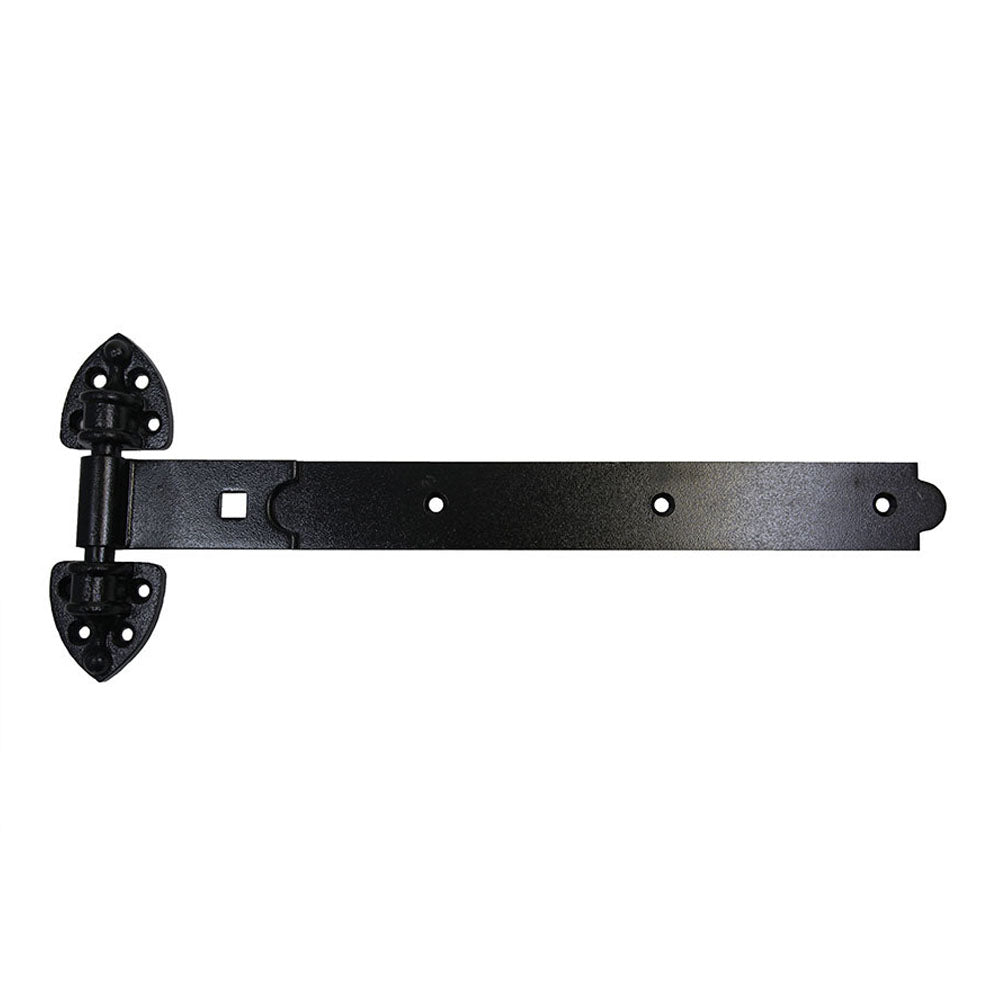

For door and gate hinges with more stylish design than typical options, the heavy-duty British style strap hinge is an excellent choice. The pad area takes a more triangular design instead of the commonly seen rectangular pad. Crafted with traditional British hardware styling, this unique hinge is offered in two finishes to perfectly complement your home or other location where it will be installed.

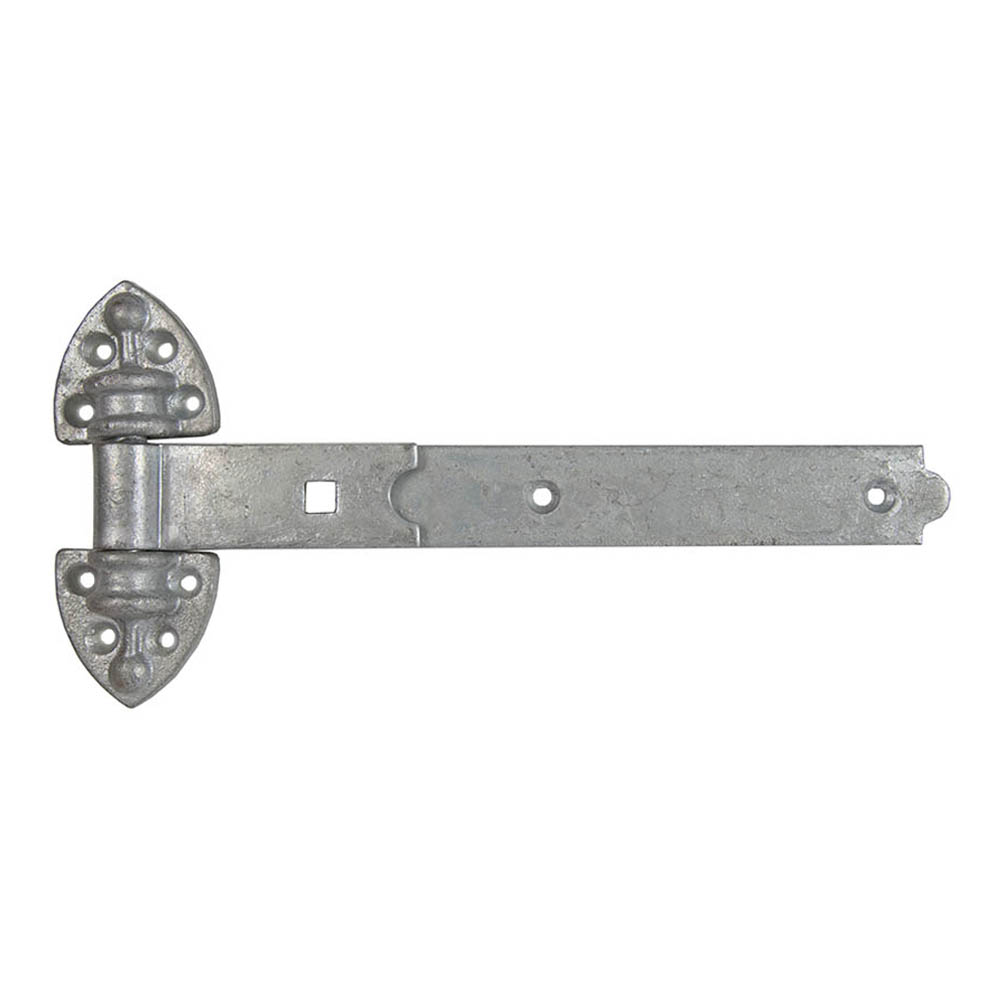

This British hinge will look sophisticated no matter where you install it. It's made of strong, durable steel and is available in two finish options; matte black and galvanized steel. For harsh outdoor environments, we recommend the galvanized option. There are six different sizes to choose from 12", 18", 24", 30", 36", and 42". Each of these has its weight rating. For the 12" hinge, the weight rating is 60 lbs. per pair, whereas for the 42", it's 340 lbs. per pair. Choose the option that's best suited for each of your doors or gates. Ensure that both the dimensions and weight rating of the hinges are right, as miscalculating could result in a failed installation. The mounting hardware is included with your order, which is one galvanized through bolt for mounting in the hinge's square hole. Once you receive your shipment, you'll be ready to go. Use them for front or back doors, gates to properties, barns, and much more.
The hinges are sold per pair. Once you've placed your order, we'll have your hinges shipped within one business day. Have a quick question for us before ordering? Use our convenient LiveChat system on our website to connect with one of our online agents. They'll answer your questions and help determine if the heavy-duty British style strap hinge is right for your doors or gates. If you have any other questions about the heavy-duty British style strap hinge or would like to learn more about our large inventory of hinges, please feel free to contact us for additional information.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10340
-
MaterialSteel
-
Mounting Hardware Included
