D&D Technologies  |  SKU: 980012

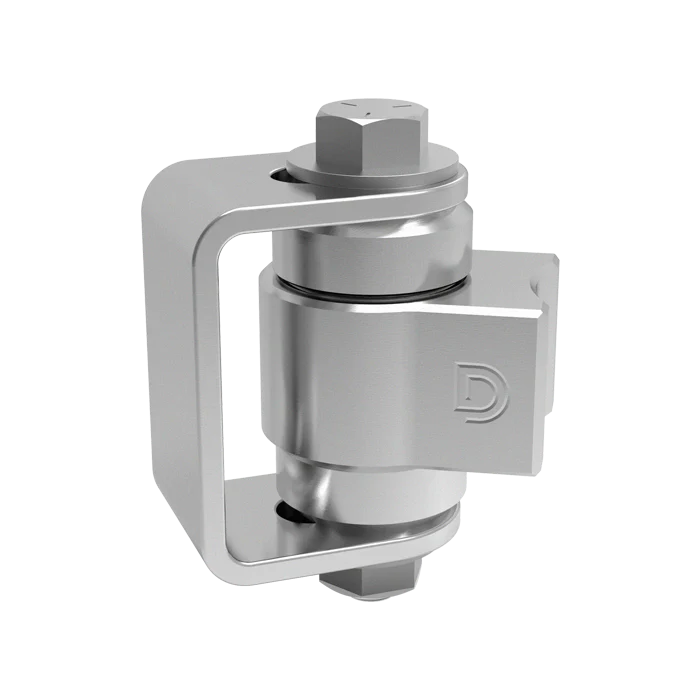

Roller Bearing Weld-On Hinge, Stainless Steel

$14491 Each

Description

  • Stainless steel Roller Bearing Weld on hinge.
  • This Weld-On hinge is designed to attach to a flat gate frame and either a round or flat gate post.
  • Weight rated for a gate weighing up to 2000 lbs per pair of hinges.
  • The pivot arm has an oval slot for adjustability.
  • 1/2" of adjustment between the gate-frame and the post after installation.
  • This hinge is sold by the each. You would normally order 2 hinges for each gate.
  • Construction:
    • Made from 304 stainless steel.
    • All components are stainless steel, including the bearings, pivot bolt, washers, nut, etc.
    • Features two sealed roller bearings, no greasing required.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 980012

  • Manufacturer
    D & D Technologies
  • Finish Name
    Satin Stainless Steel
  • Material
    Stainless Steel (304)
  • Weight Rating
    2,000 lb. Per Pair
  • Width
    2.40" - 2.90"
  • Height
    2.80"
  • Bearings
    Roller Bearing
