Grass  |  SKU: 701301

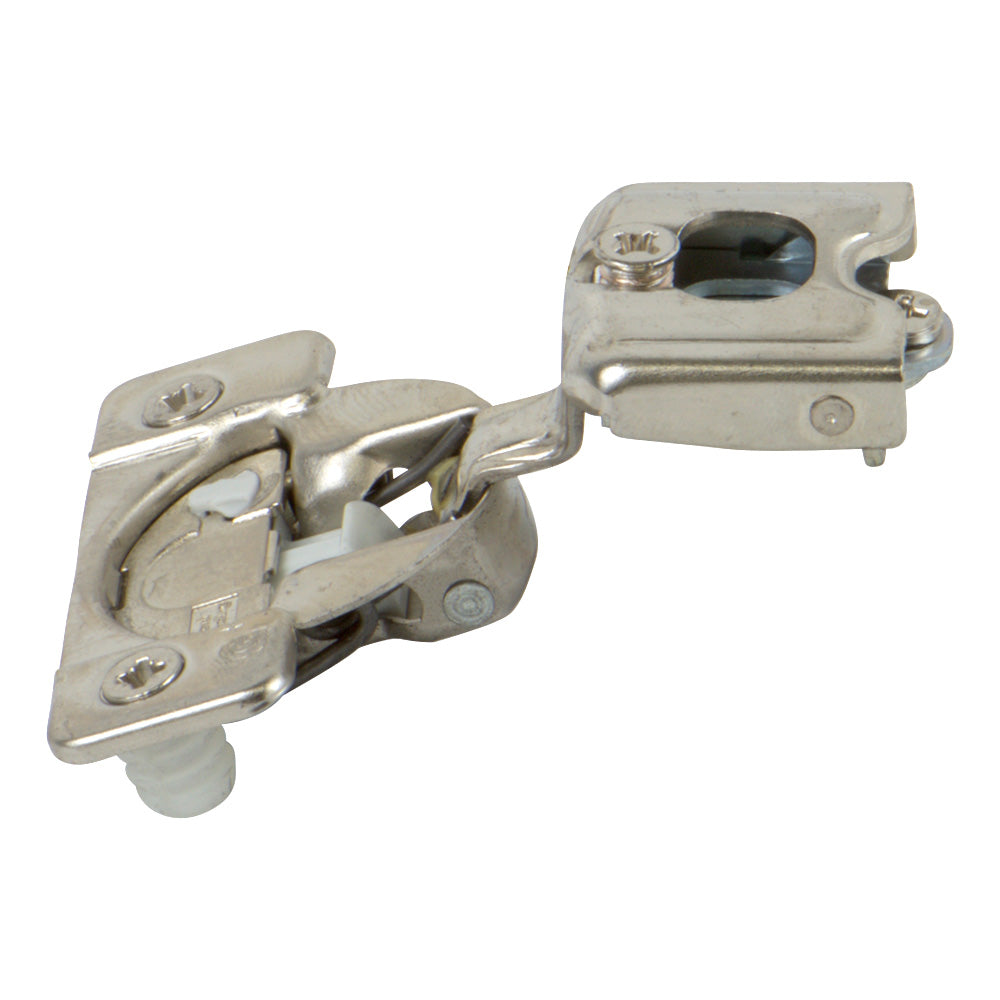

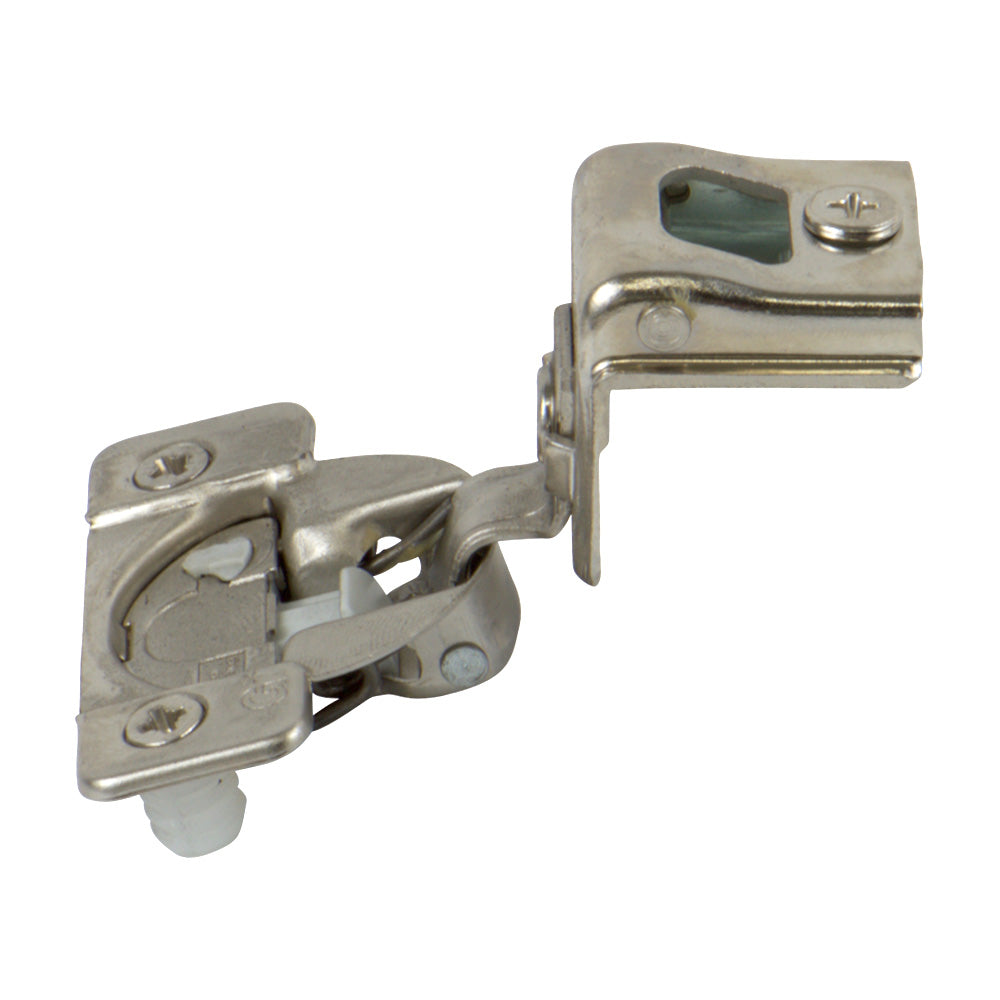

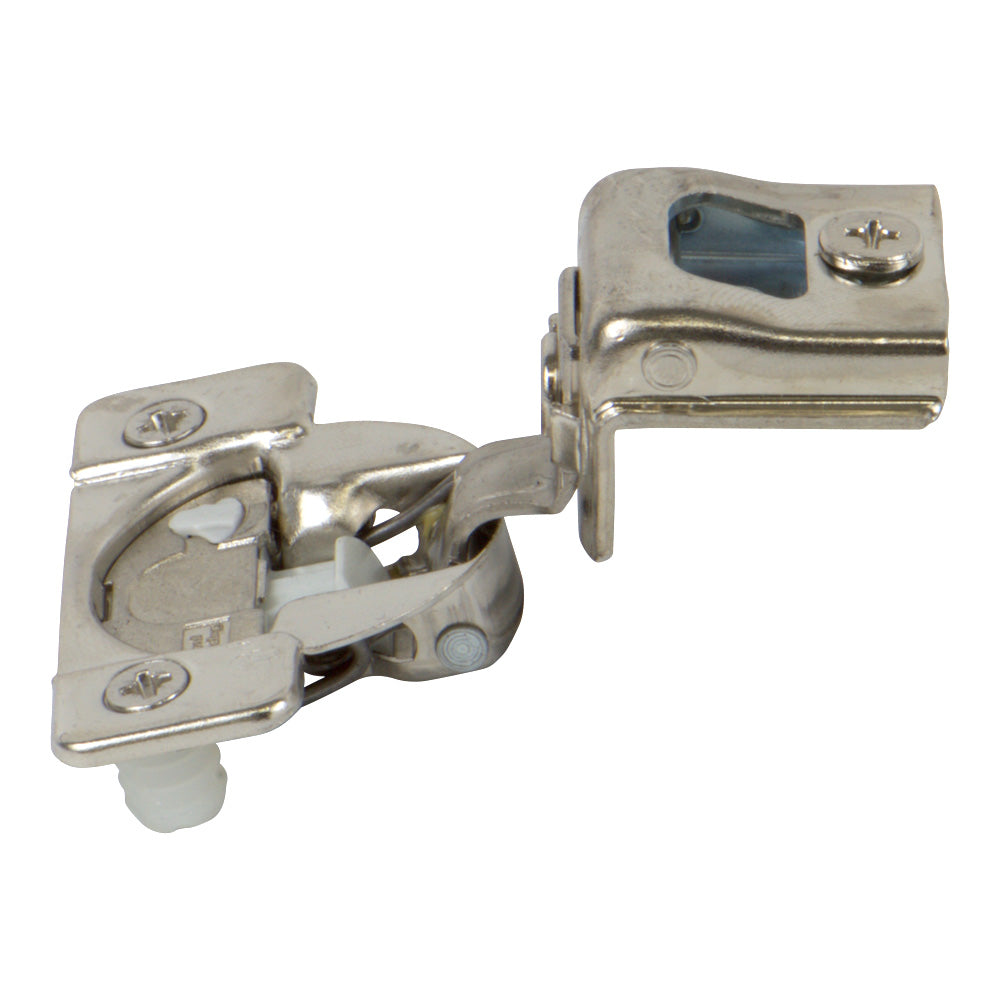

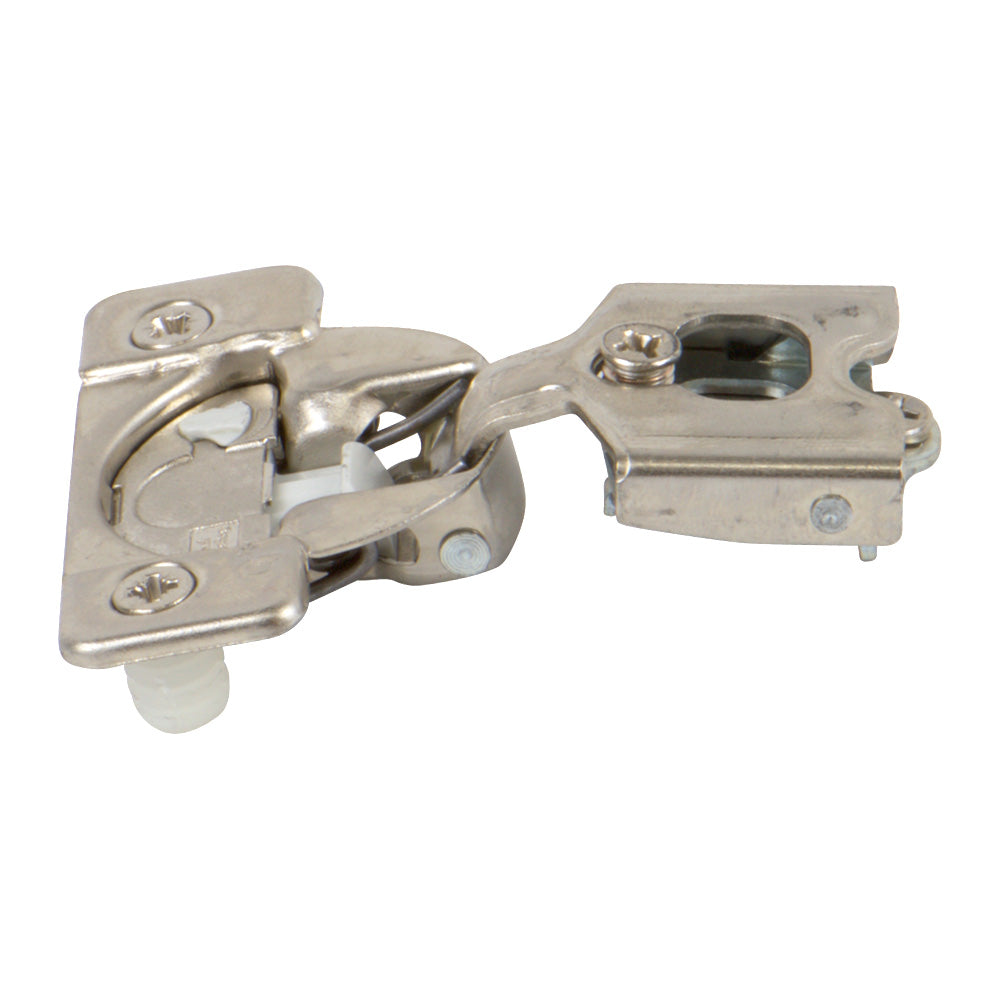

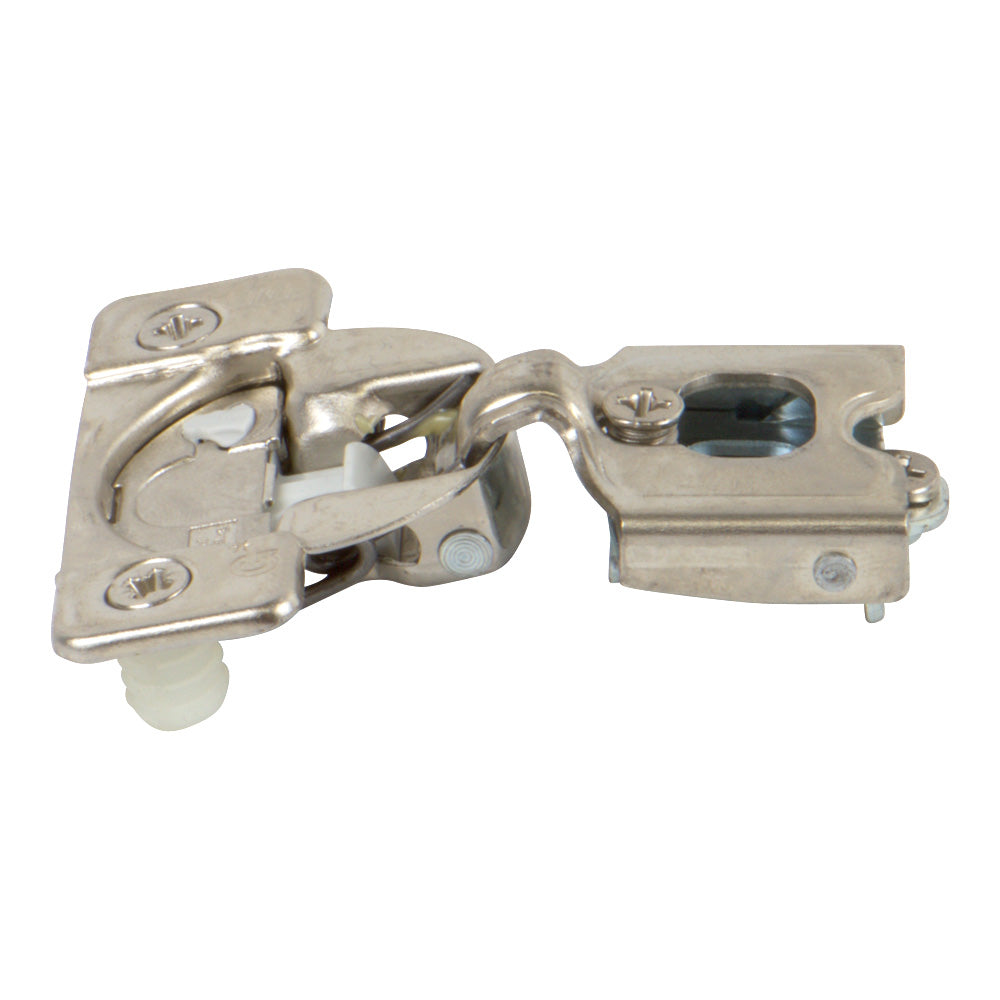

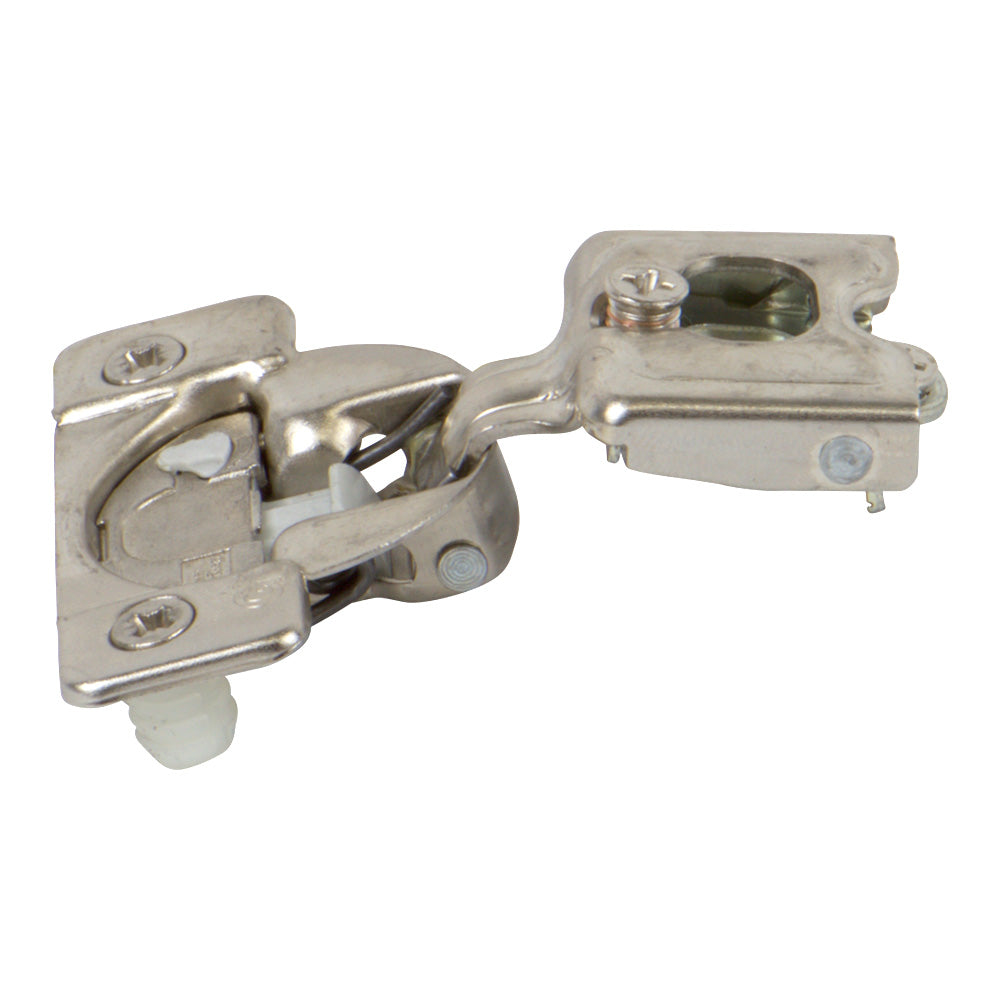

Grass Soft-Close Compact Hinges

$895 Each
Overlay

Fasteners Not Included

Description

  • Compact European style face frame hinges by Grass
  • Made in the USA.
  • Soft closing action eliminates door "slamming".
  • Compact cabinet hinge cup screw hole spacing is 42 mm (1-5/8") instead of the more typical 45 mm (1-3/4).
  • Drilling Depth is 11 mm (7/16").

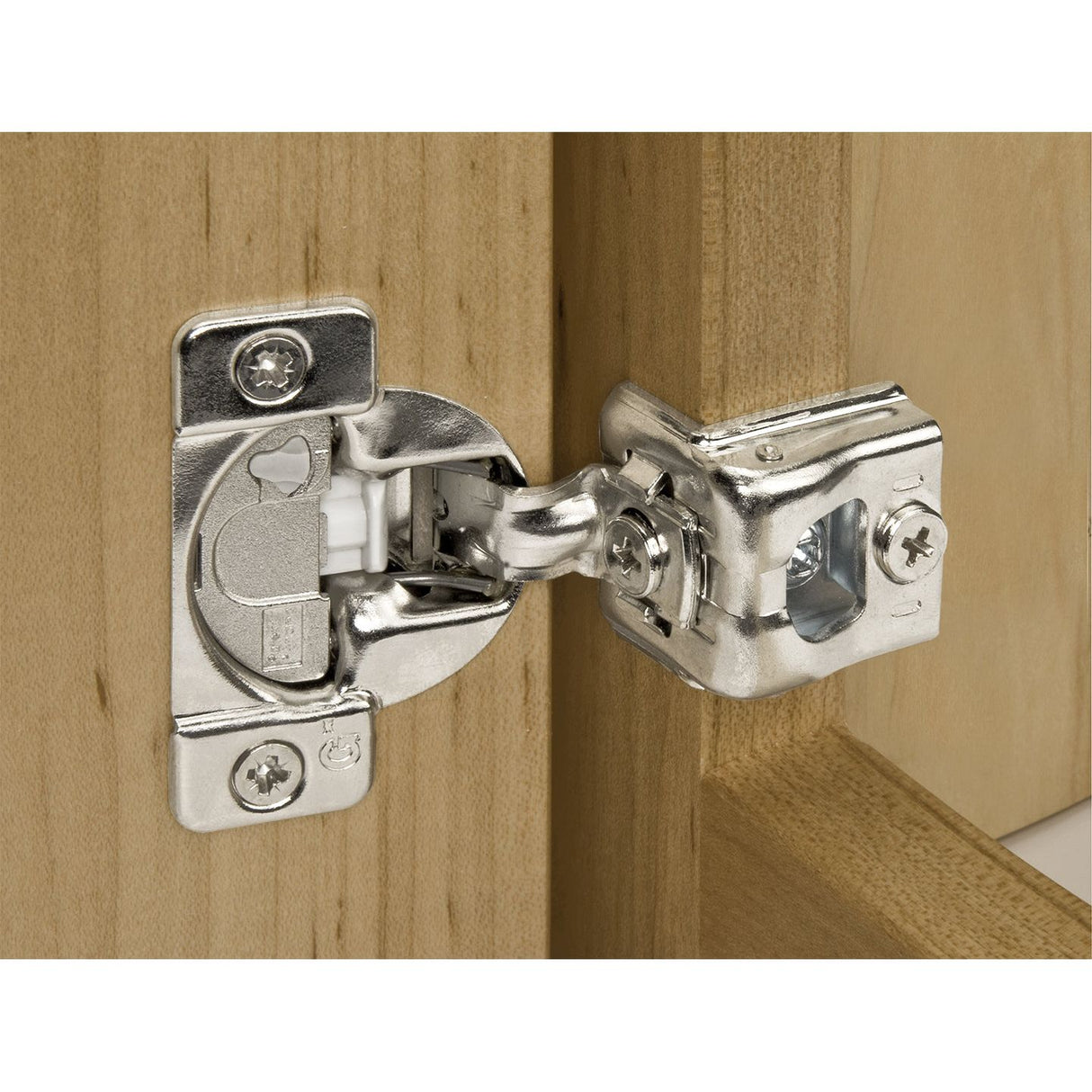

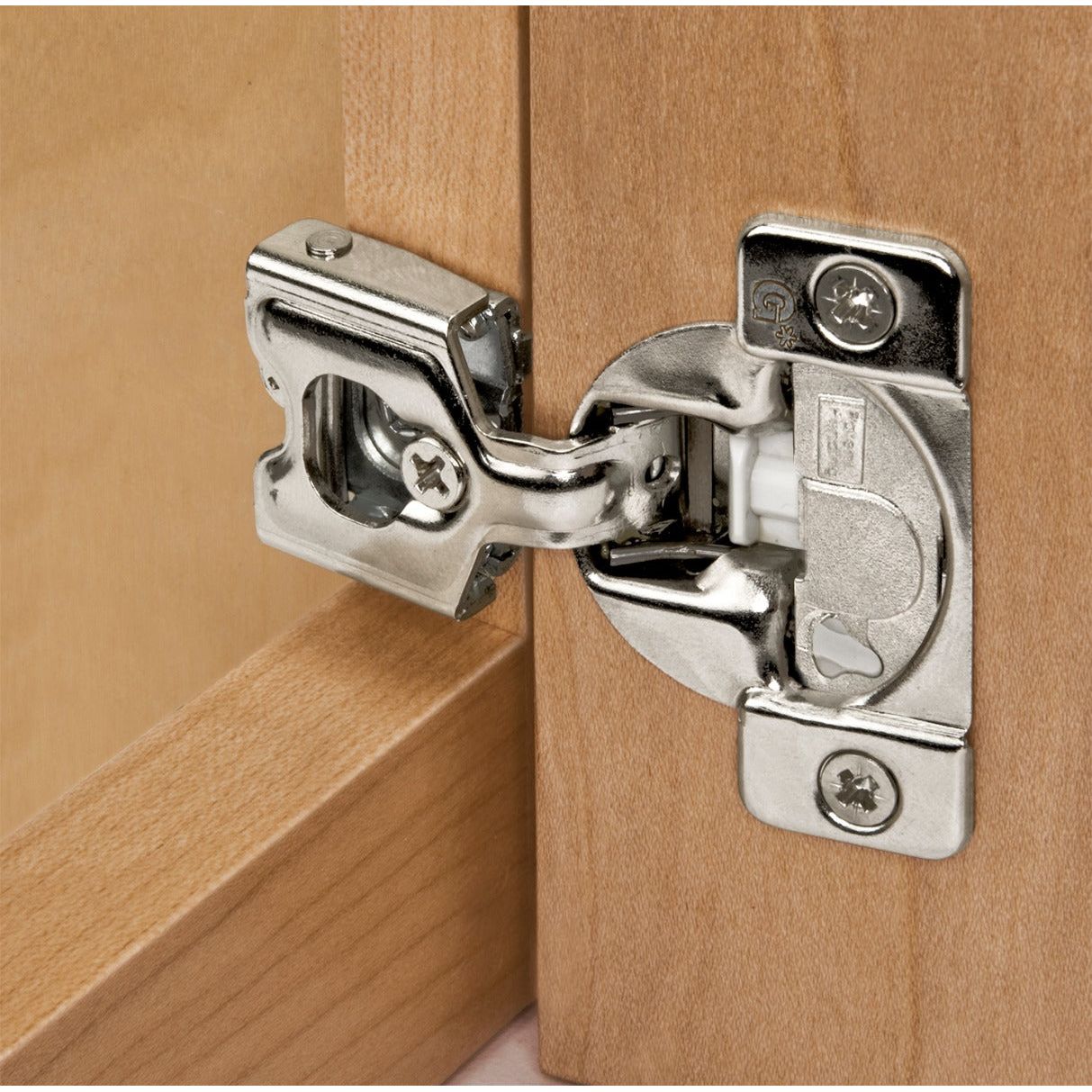

  • Works only for face frame thicknesses of 3/4". Attachment plate wraps around back of face frame.

Adjustability

  • Cam side adjustment.
  • Cam depth adjustment.
  • Height adjustment using the face frame mounting screw.
  • Switch in the hinge cup adjusts the closing action between three options.

Screws

  • Included are plastic dowels and steel dowel screws. If your cabinet does not use plastic dowels you can discard the dowels and use the shortened dowel screws directly into the wood or you can order two #6 European hinge screws (our SKU 652360) per hinge.
  • The mounting plate screw is not included. Each hinge needs one of these (#6 pan head x 3/4", our SKU 135406).

Warranty

Limited Warranty
Grass America, Inc. (“Grass”) warrants to the original consumer (the “Consumer”) its hinges, drawer slides, or accessory hardware manufactured by Grass against defects in materials and workmanship, as determined by Grass for the lifetime of the cabinetry, considered to be in a range of seven years.

This warranty does not cover any causes of malfunction such as misuse, abuse, neglect, accident, modification, commercial use, or improper installation.
Grass will send a replacement product to the Consumer for items that fall under the Limited Warranty. The Consumer shall be responsible for the shipping and handling costs currently in effect at the time of the replacement. This warranty covers replacement of defective parts only. The cost of removal, reinstallation and any incidental charges is the responsibility of the Consumer.

If the defective product has been discontinued, Grass reserves the right to replace the defective product with a comparable product currently manufactured. There is no guarantee of full interchangeability offered. The warranty does not apply to a discontinued product if at Grass’ discretion a comparable
product is not available. For items that do not fall under the Limited Warranty, Grass will continue to support the consumer by providing the most comparable replacements at a reasonable cost.

Machinery parts are not covered under this warranty.

ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED AS SET FORTH ABOVE. However, some states do not allow limitations on how long an implied warranty lasts, so the above limitations might not apply to you. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER ORAL, WRITTEN, EXPRESS, OR IMPLIED. GRASS’ WARRANTY OBLIGATIONS AND THE CONSUMER’S REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HEREIN. IN NO EVENT SHALL GRASS BE LIABLE FOR ANY LOSS OF REVENUE OR PROFITS, LOSS OF USE OF EQUIPMENT, OR OTHER CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE, OR FAILURE OF ITS PRODUCTS. However, some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions
might not apply to you. This warranty gives you specific legal rights, and you may also have other rights that may vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10270

  • Manufacturer
    Grass
  • Country of Manufacture
    United States
  • Finish Name
    Nickel
  • Material
    Steel
  • Soft Close
    Yes
  • Self-Closing
    Yes
  • Plate Connection Type
    One-Piece
  • Opening Angle
    108 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    42mm (1-5/8")
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    One #6 x 3/4" Pan Head Screw (Our SKU 135416)
