Grass Soft-Close Straight Arm for Frameless Cabinets - Bundle

• Straight Arm hinge bundle for frameless cabinets with overlay doors
• This hinge can be used for new construction or to replace worn out or obsolete Grass straight arm hinges that open approximately 110 degrees.
• This hinge is available with either 42mm (1-5/8") or 45mm (1-3/4") screw hole spacings for the hinge cup. Screw holes are measured from center to center (center of one hole to the center of the other hole). See the document found under Downloads to view a diagram showing the screw hole spacing.
• An optional restriction clip is not included (restricts door opening to 85 degrees) is available for purchase separately (our SKU 701349).

Features

• A soft close feature which eliminates the slamming door sound that you get with typical self-closing European hinges.
  • This hinge has a lever one the back that adjusts the soft close speed by choosing one of three different closing pressure settings.
  • The soft close mechanism is fully integrated into the hinge arm rather than the hinge cup.
• Four different adjustments:
  • Soft close pressure
  • Depth adjustment (+3 mm and -2 mm)
  • Side adjustment (overlay on this hinge) +2 mm and -2 mm
  • Height adjustment (+2 mm and -2 mm)
  • See the document found under Downloads for information on how to adjust

Details

• Hinge cup size is 35 mm (1-3/8"). Cup depth is 1/2".
• Door opening angle is 110 degrees
• Works for bore distances of from 3 mm to 7 mm
• Works for the following overlay dimensions 13 mm (1/2") to 24 mm (15/16")
• Works for door thicknesses 16 mm to 24 mm
• An optional restriction clip (restricts door opening to 85 degrees) is available (our SKU 701349).

What's Included

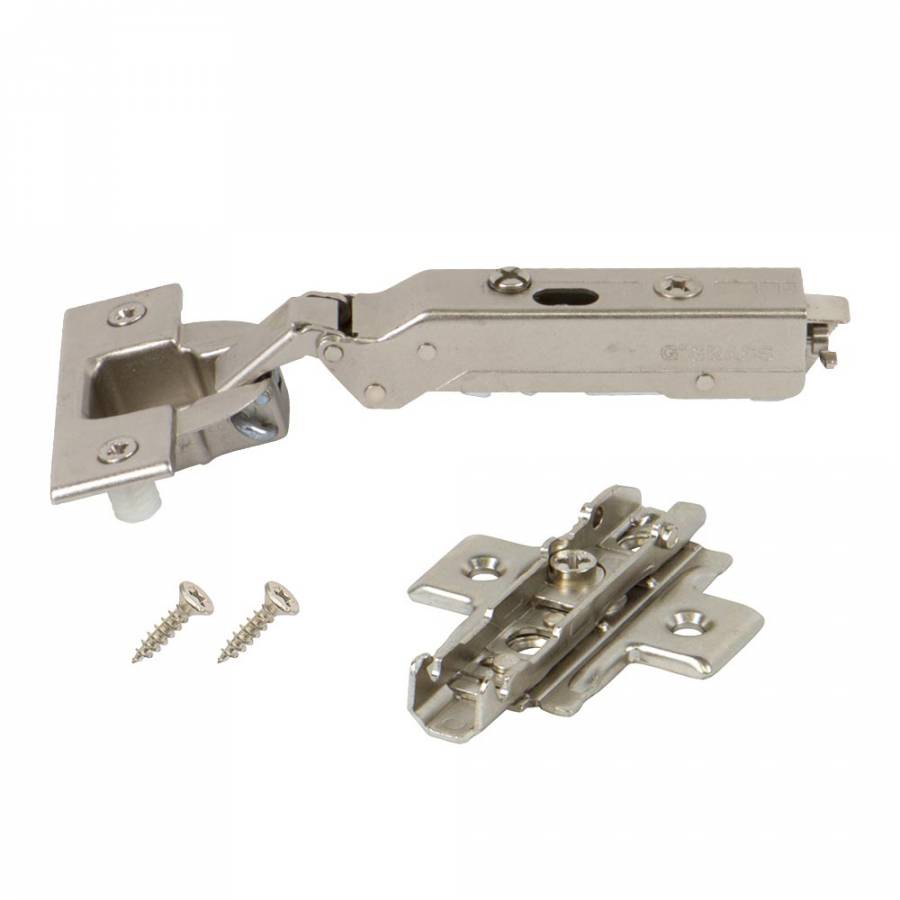

• 1 x Grass Tiomos Straight Arm Soft-Close Hinge
• 1 x Frameless Mounting Plate (three options)
• 2 x #6 Screws for the Mounting Plate
• 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).
