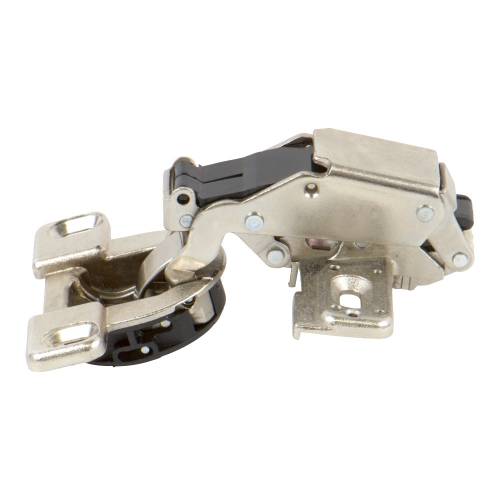

One Piece Face Frame Hinge, Minimal Gap (Discontinued)
Couldn't load pickup availability
Description
Description
Please Note: This hinge has been discontinued by the manufacturer. We have left this product page up for reference only. This was a very unique hinge (due to many different factors) that has no exact replacement options. The unique factors were as follows:
- 48mm Screwhole center to center
- 1-1/8" Overlay
- 135 Degree opening angle
- One piece compact design
The closest replacement option we carry would be a Grass 170 Degree hinge for face frame cabinets. This is our SKU# B10152 which can be found by clicking here or under related products below. This hinge provides a large opening angle (170 degrees) while also having a 48 mm screwhole center to center. It only provides a 3/4" overlay, however, and would require you to notch out your cabinet frame (as seen here) to achieve a 1-1/8" overlay. The Grass hinge is also a much larger two piece setup as opposed to the small one piece design that this hinge provided.
- One piece compact European hinge
- For face frame cabinets with overlay doors
- Accommodates overlays from 26 mm to 29 mm (1-1/32" to 1-1/8")
- Shallow cup depth of 10 mm
- Made for door thicknesses from 5/8" to 3/4".
- Made for face frame thickness of 3/4".
- This hinge requires a 6 mm (1/4") bore distance. The bore distance is the distance from the edge of the door to the edge of the 35mm cup drilled in the back of the door.
