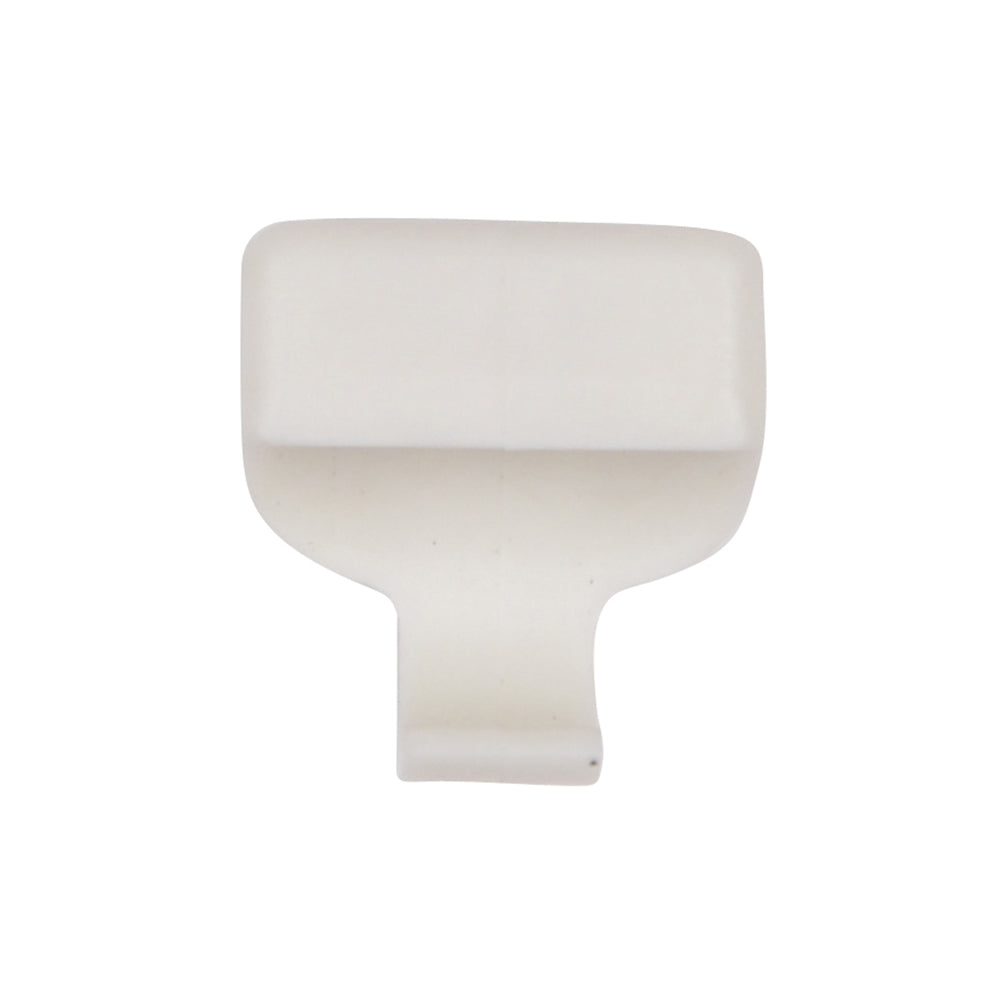

Restriction Clip for Grass Compact Hinges
Couldn't load pickup availability
Description
Description
- Optional nylon clip for Grass Compact European Hinges
- Clip restricts door opening angle to 85 degrees.
- This is important if your door opens wide enough to hit another cabinet, wall, glass door, TV screen, etc
To install:
- Remove hinge from door
- Put hinge arm in "door closed" position
- Insert clip under pivoting arm of the hinge with curved part of clip orientated towards the bottom of the hinge cup
- Put hinge arm in "door open" position to make sure that it is restricting the final opening angle of the hinge
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 701189
-
Manufacturer
-
Model Number
-
MaterialNylon
