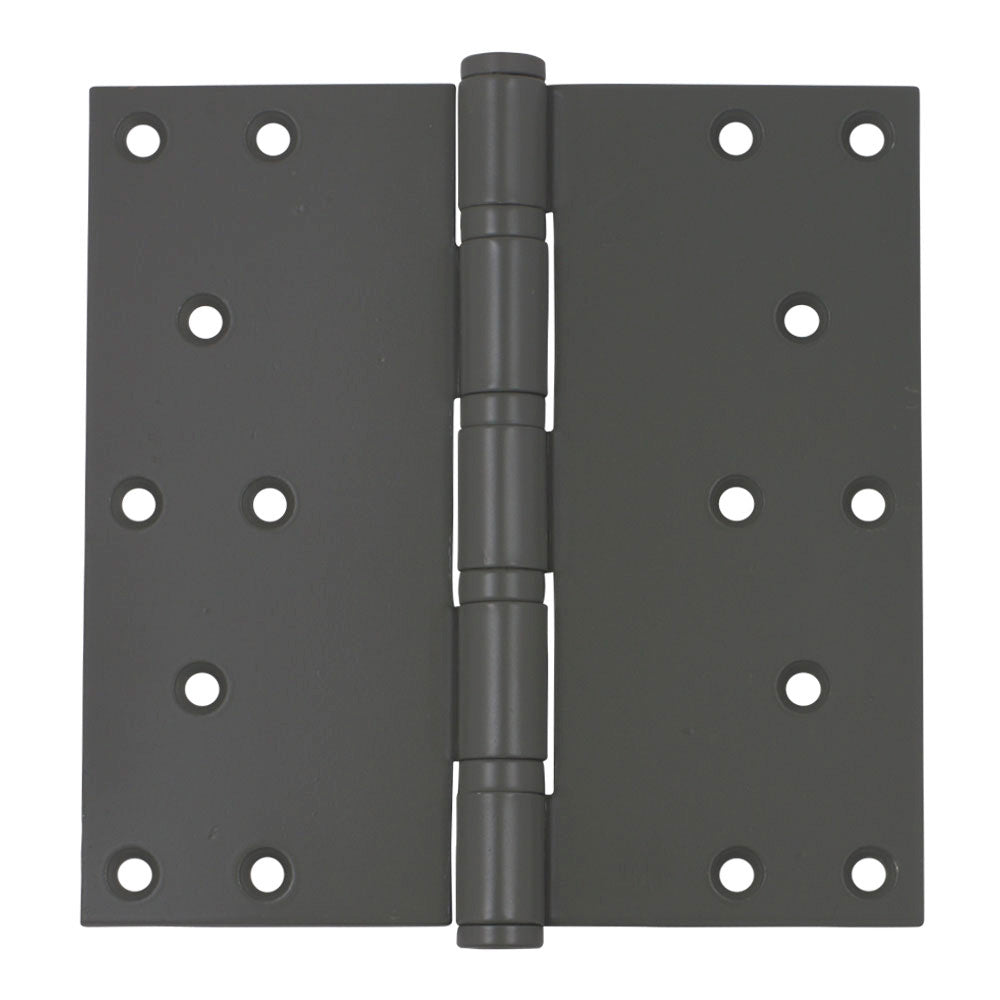

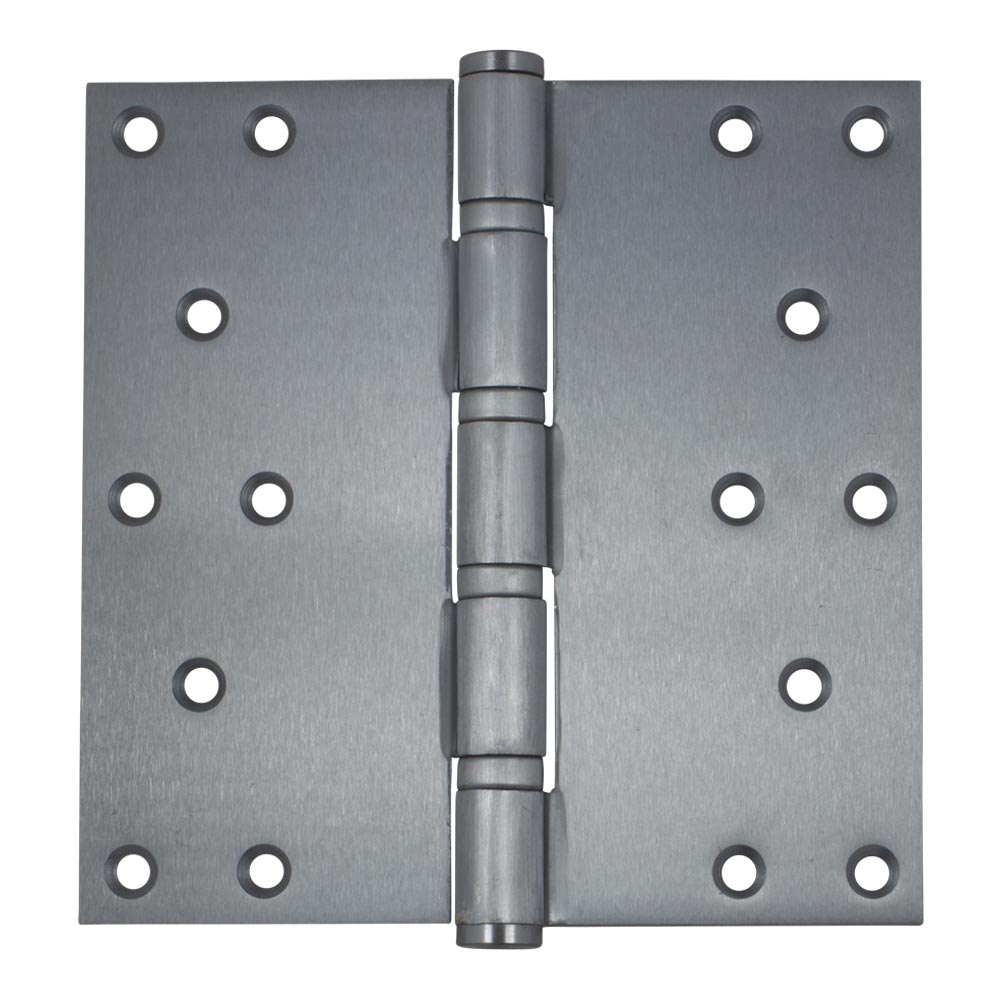

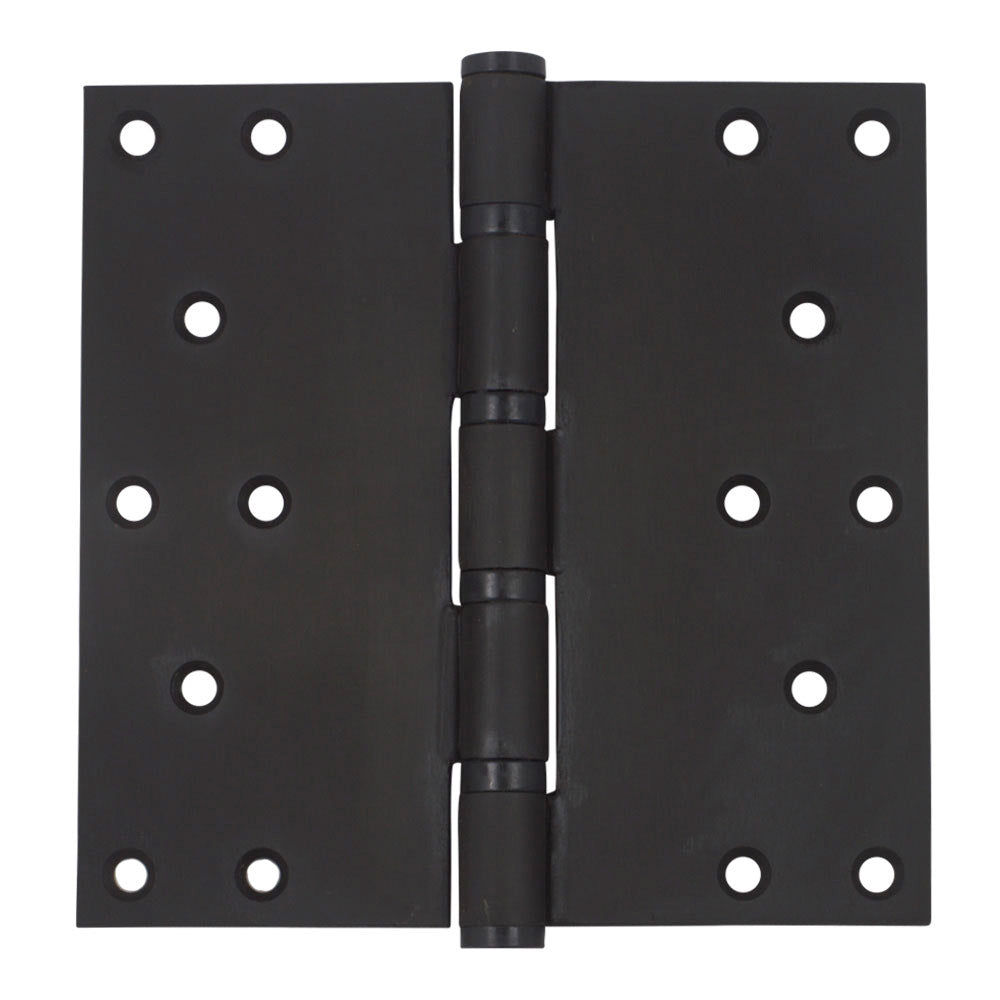

Steel Heavy Duty Ball Bearing Hinge, 8" x 8"
Couldn't load pickup availability
Description
Description
- Heavy duty butt hinge made for heavy doors and gates.
- Designed to be installed as a full mortise hinge.
- Made from extra thick steel material. Thickness of steel is 0.2"
- Features 4 maintenance-free ball bearings.
- Fits door thicknesses of 2-1/4" to 3".
Weight Ratings
Weight ratings given are a general guide for doors used in residential (low frequency) use under normal situations. The weight, width, and number of hinges on the door are the major factors that affect hinge selection. When selecting hinges for your door, keep in mind that other factors such as abuse, impacts, hostile atmospheres and other similar conditions can affect the choice of hinges.
- For door width up to 3': 800 lbs.
- For door widths 3' to 3'6": 670 lbs.
- For door widths 3'6" to 4': 600 lbs.
Number of Hinges to use per Door
- Up to 5' high: 2 hinges
- 5' to 7'6" high: 3 hinges
- 7'6" to 10' high: 4 hinges
- 10' to 12'6" high: 5 hinges
- 12'6" to 15' high: 6 hinges
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10133
-
MaterialSteel
-
Weight Rating
-
Size8" x 8"
-
Grade
-
CornerSquare
-
BearingsBall Bearing
-
Removable PinYes
-
Decorative TipsNo
-
Mounting Hardware Included
-
Mounting Hardware Type
