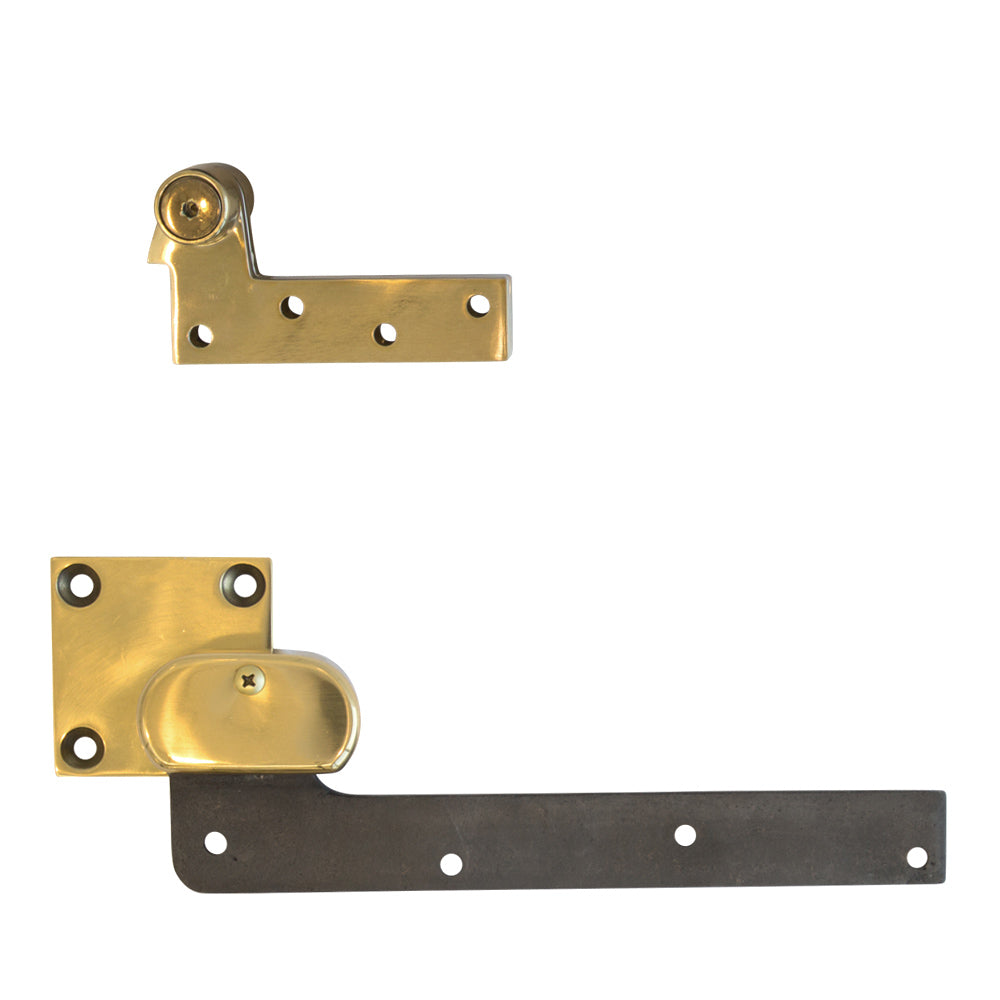

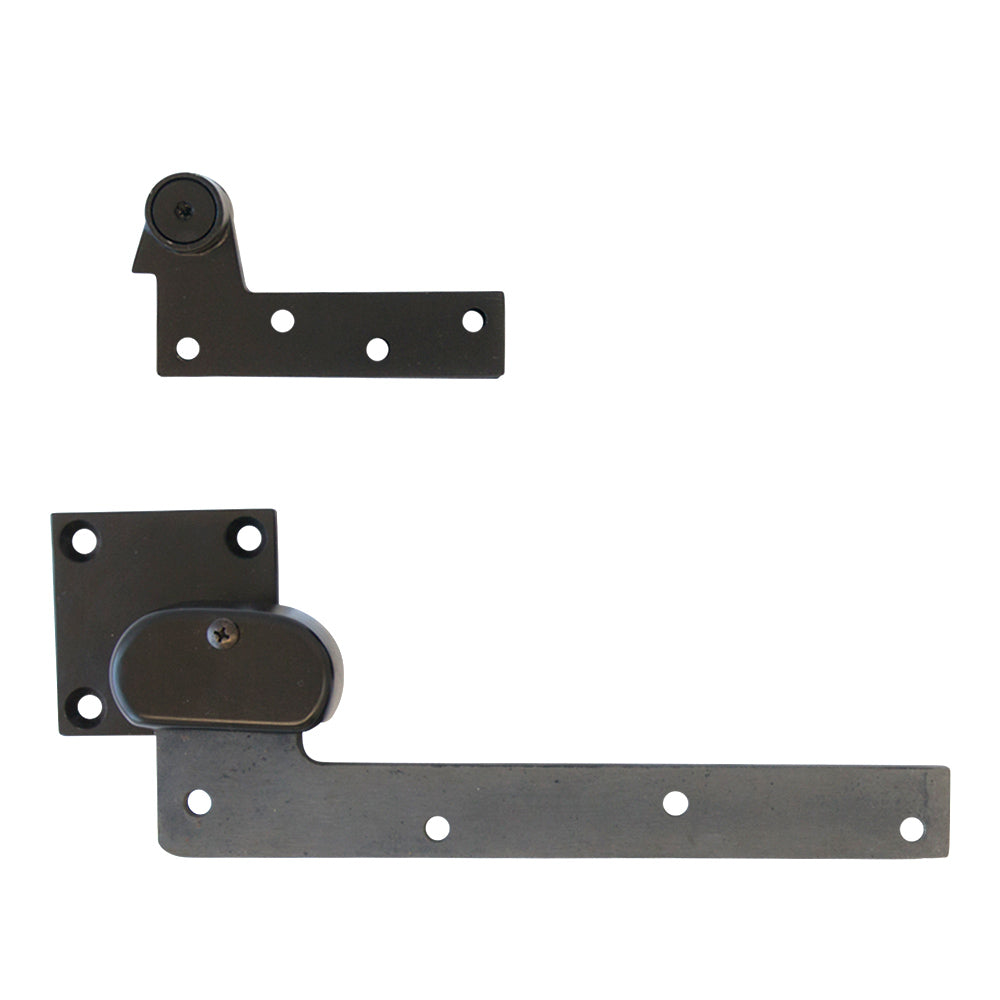

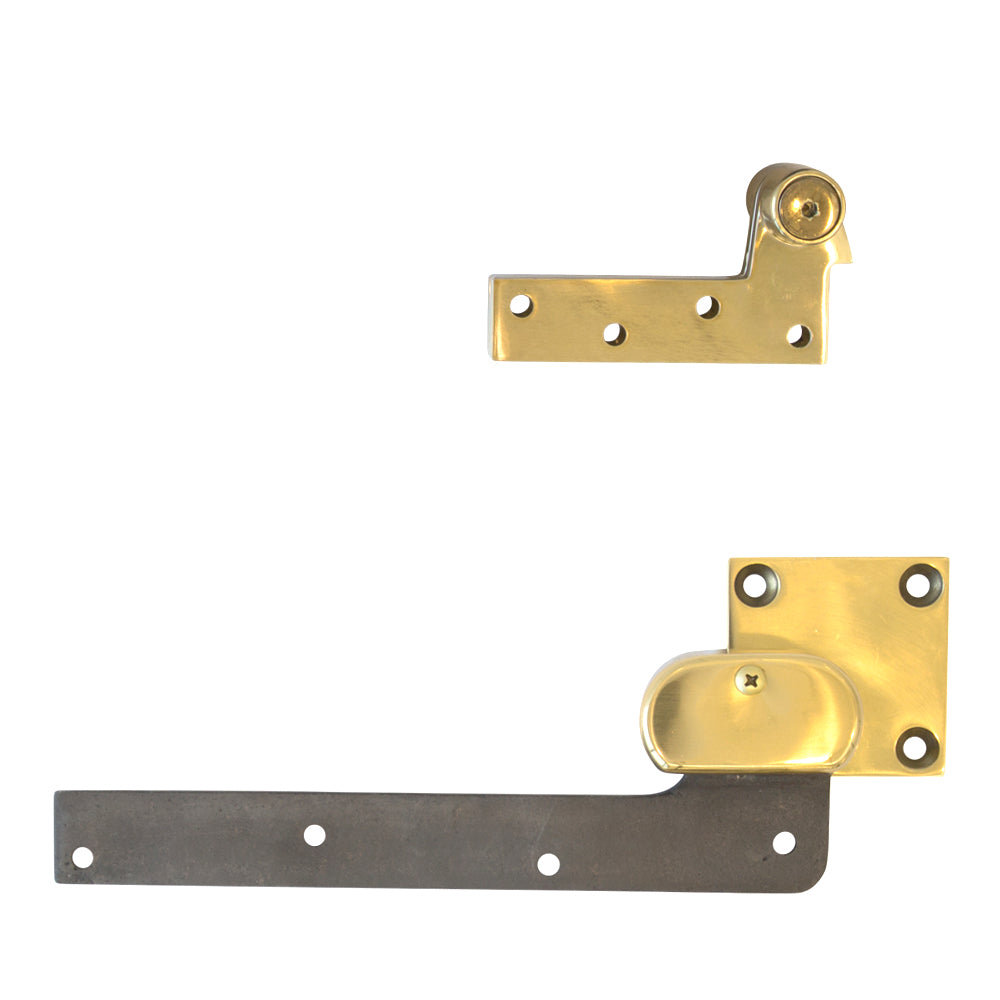

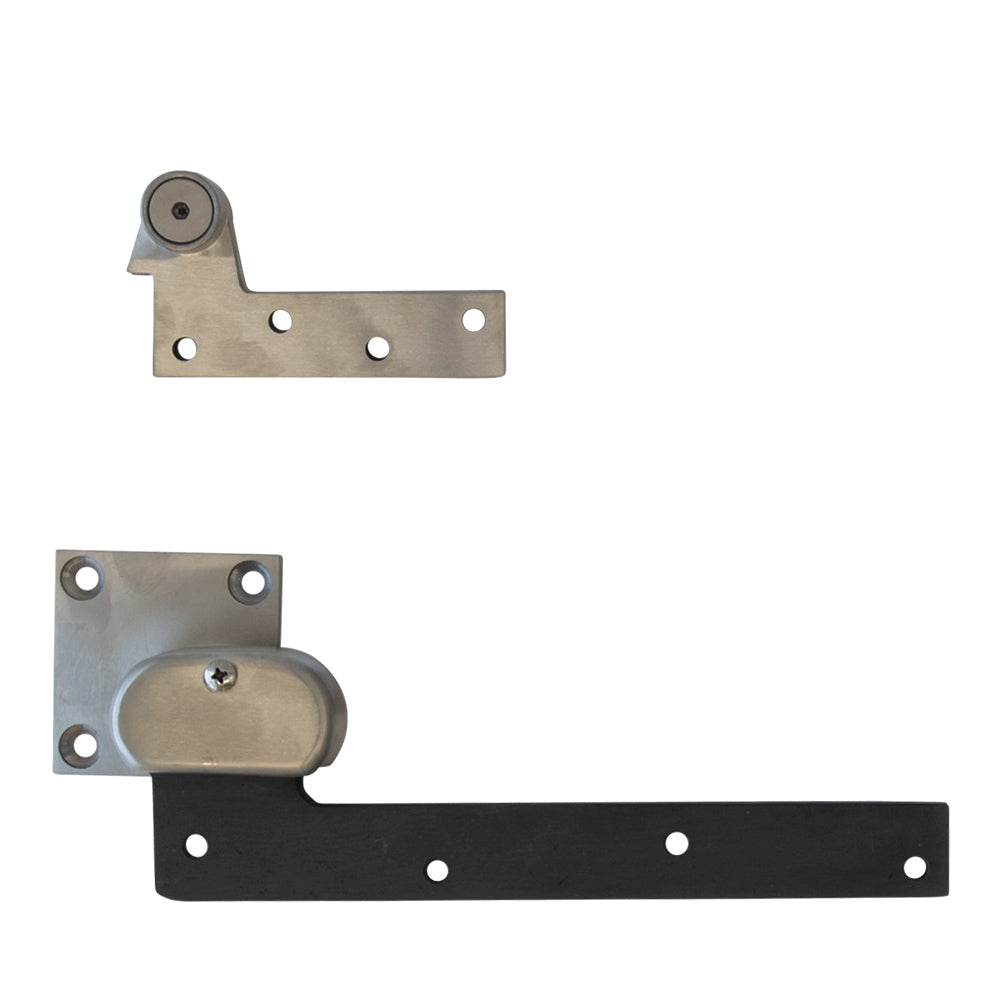

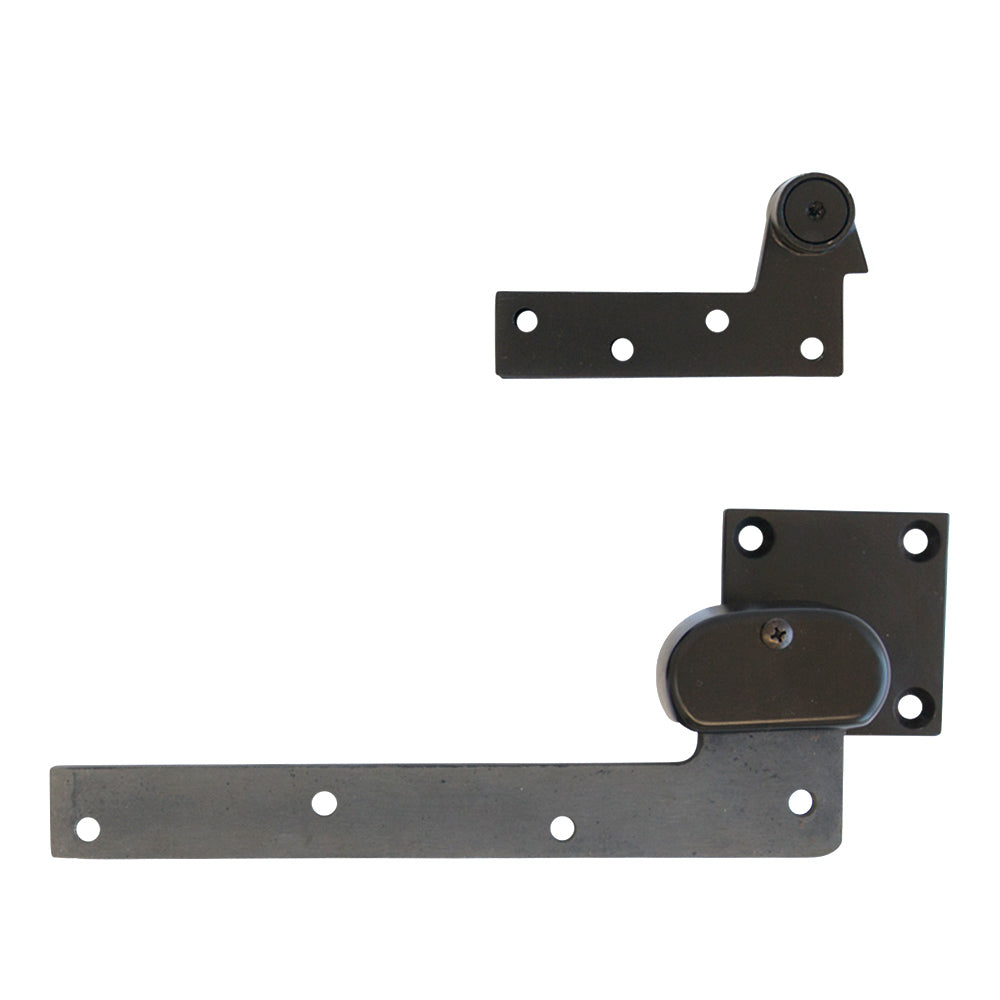

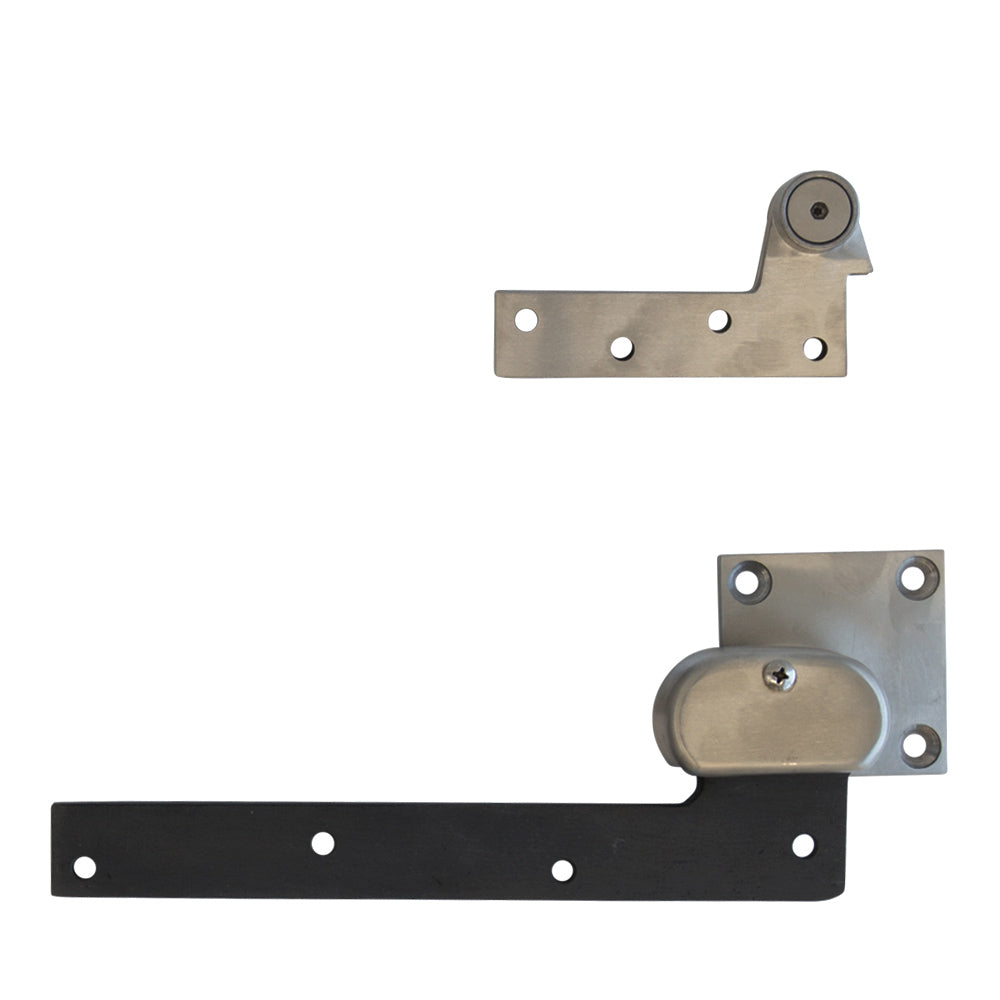

3/4" Offset Hung Pivot Set, 600 lbs
Couldn't load pickup availability
Description
Description
- High quality Rixon style offset hinge at a great price.
- Features sealed ball bearing raceway on the floor pivot.
- Bronze bearing with hardened and ground steel stud in top pivot.
- 3/4" offset hung pivot sets locate the pivot point 3/4" from the heel edge of the door and 3/4" from the face of the door.
- Doors over 60" require the use of an intermediate pivot. Every additional 30" of door height warrants the addition of another intermediate pivot. For an intermediate pivot use our 3/4" Offset Intermediate Pivot.
- For exterior door widths up to 3'0" and interior door widths up to 3"6".
- Door pivot mounts directly to floor.
- Door will swing 180 degrees (trim permitting).
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10535
-
MaterialSteel
-
Weight Rating
-
ActionSingle Acting
-
Mounting Hardware Included
-
Mounting Hardware Type
