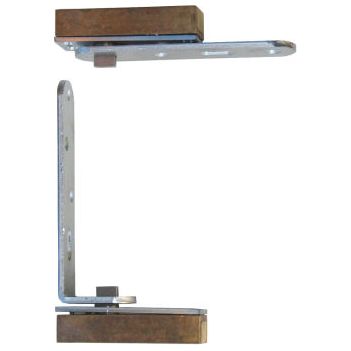

Camtrol Double Action Pivot Hinge
Couldn't load pickup availability
Description
Description
- Also known as a Double Acting Hinge.
- Spring loaded pivot set, free swings between 90 & 31 degrees, self closes at 30 degrees.
- Do not open beyond 90 degrees or damage to the pivot will occur.
- We highly recommend using a stopping device so the door does not swing past 90 degrees.
- For use on wood or metal doors up to 100 lb., not larger than 3.5 feet wide and 7 feet tall.
- Camtrol hinge is a type of invisible hinge.
- The door edges do not need to be beveled or rounded.
- Camtrol action makes possible a snug application without rounding of the door edge.
- Cam box is designed to be installed flush with the finished floor.
- Wood floors that can be mortised work best with this hinge.
- For door thicknesses of 1-3/8" to 1-3/4".
- Cam boxes are brass, door brackets are steel (satin chrome plated), cam box trim plates are brass (satin chrome plated).
- Each cam box measures 3-7/8" by 1-1/4" by 29/32" tall.
