SKU: 219629

Extra Heavy Duty Reversible Wardrobe Pivot Hinge

$6021 Per Set

Description

  • For doors up to 150 lbs
  • For overlay doors 1-3/8" to 1-3/4" thick (35mm to 44mm).
  • Doors can be installed floor to ceiling.
  • Full 180 degree opening.

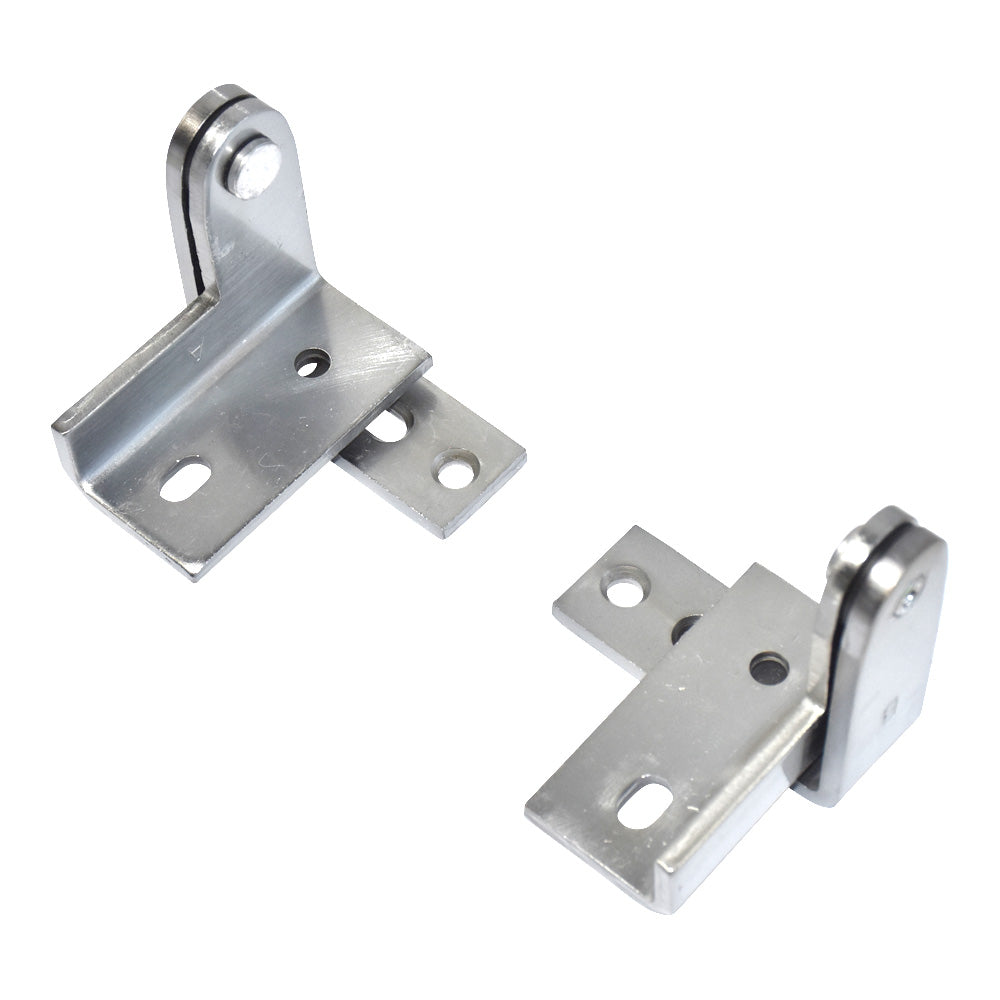

  • Horizontal piece (as shown in photo)measures 3" by 1-1/2"
  • Vertical flat piece (which mounts to wall) measures 3" x 1-1/8"
  • Sold by the set. A set is what is needed to install one door.
  • Bearings take vertical and lateral loads.

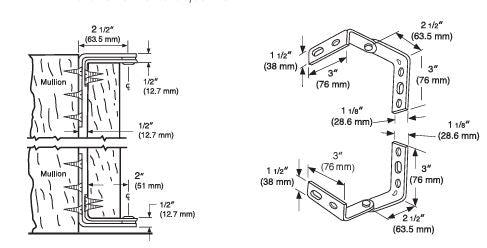

  • Designed for mullion or face frame mounting.
  • Screw holes allow for vertical and horizontal adjustment.
  • Non-Handed.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 219629

  • Finish Name
    Satin Chrome
  • Material
    Steel
  • Projection
    3"
  • Action
    Single Acting
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Matching Wood Screws
