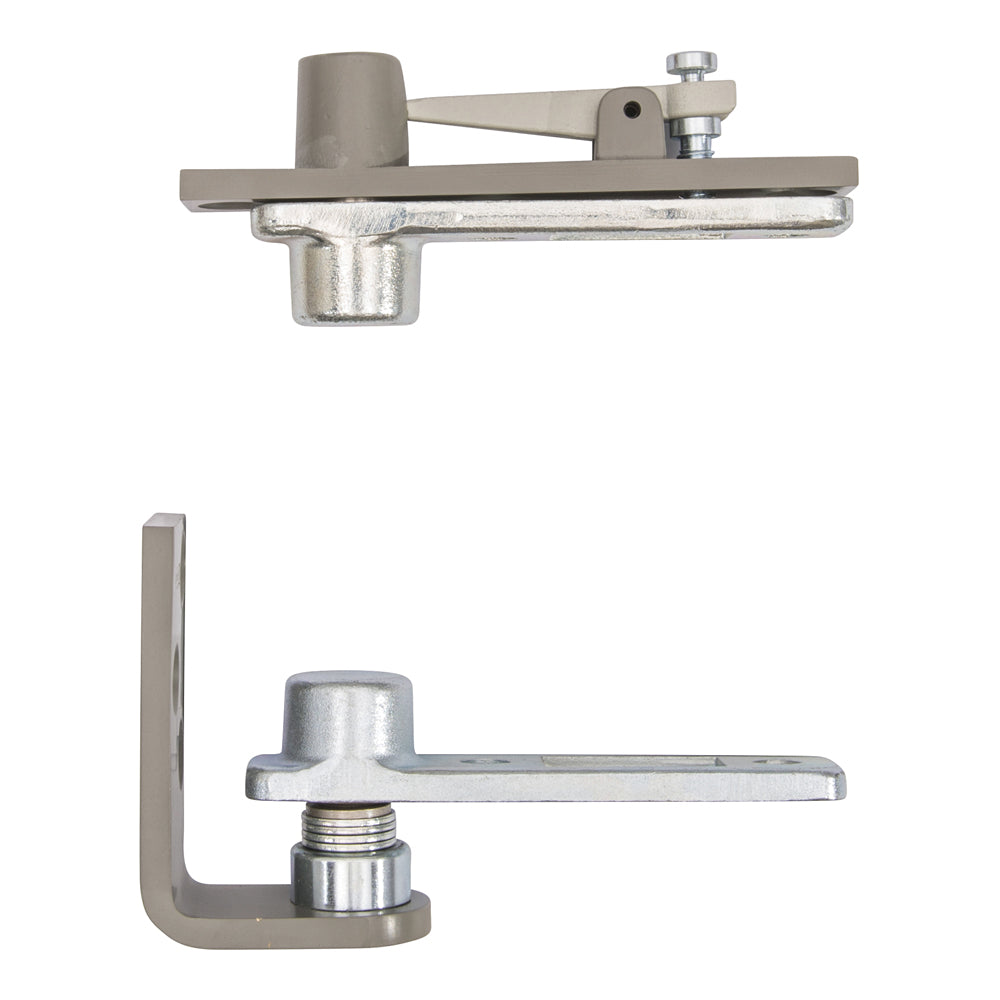

Frame Mounted Center Hung Pivot Set
Couldn't load pickup availability
Description
Description
- Rixson style heavy duty pivot assembly for commercial double acting interior doors of average frequency use.
- For door thickness of 1-3/8" and 1-3/4"
- Top door plate has an oil impregnated bronze bearing.
- Bottom door plate has smooth acting ball bearing unit.
- Bottom bracket is frame mounted and must be floor supported.
- Pivot point 1-1/4" from jamb.
- PLEASE NOTE: This is not a self-closing hinge. The hinge does not return to center automatically.
- Top and Bottom Brackets are prime coated. Brackets are exposed when the door is in the open position.
- Prime coated brackets allow for painting to match the surrounding materials.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 219534
-
Finish Name
-
MaterialSteel
-
Weight Rating
-
ActionDouble Acting
-
Mounting Hardware Included
-
Mounting Hardware Type
