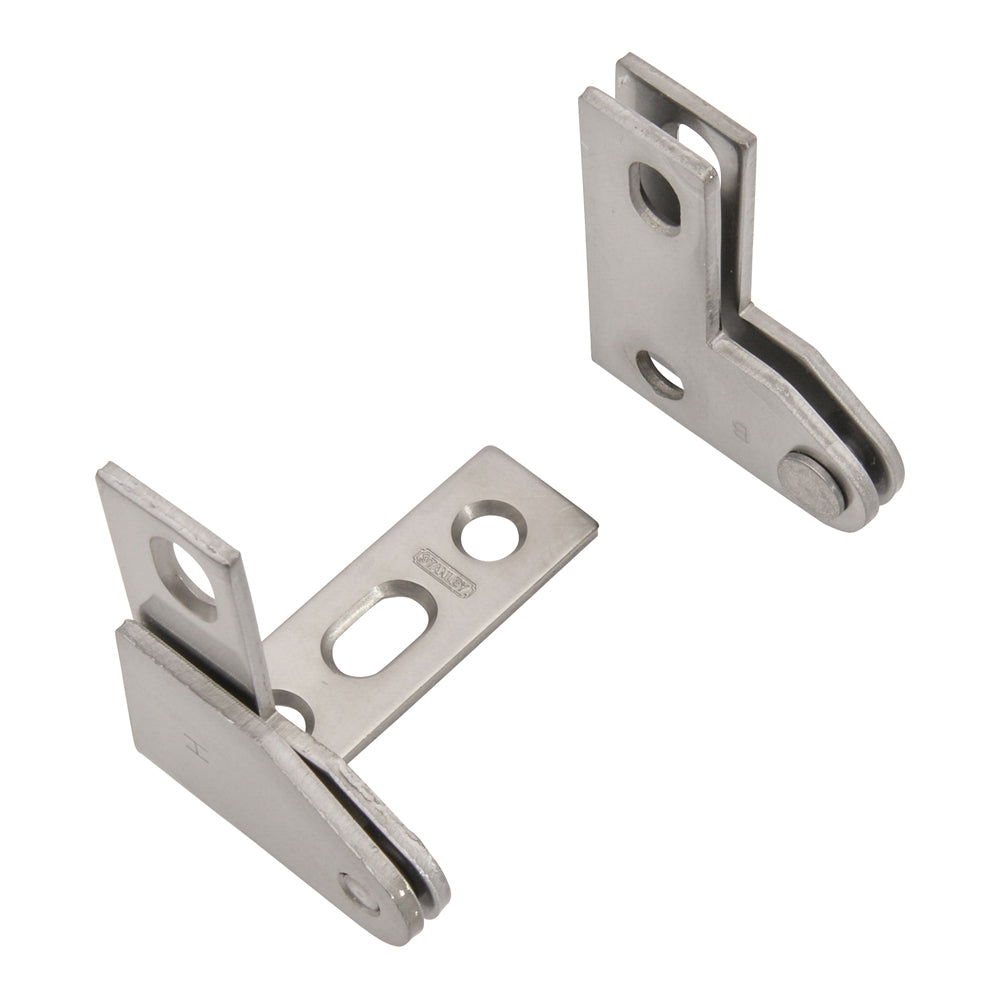

Heavy Duty Pivot Hinge Stanley 341
Couldn't load pickup availability
Description
Description
- For flush or recessed doors and wardrobe doors.
- For 1-1/8" to 1-3/8" thick door.
- Not to exceed 75lb per pair.
- Top header and bottom side frame mounted.
- Suitable for floor-to-ceiling door applications.
- Elongated screw holes for easy alignment.
- The bottom pivot separates for easy installation and removal.
- Bushings assure smooth, silent operation.
- Edge mortise bottom pivot vertical leaf for a minimum gap.
- Heavy-duty wardrobe pivot hinge.

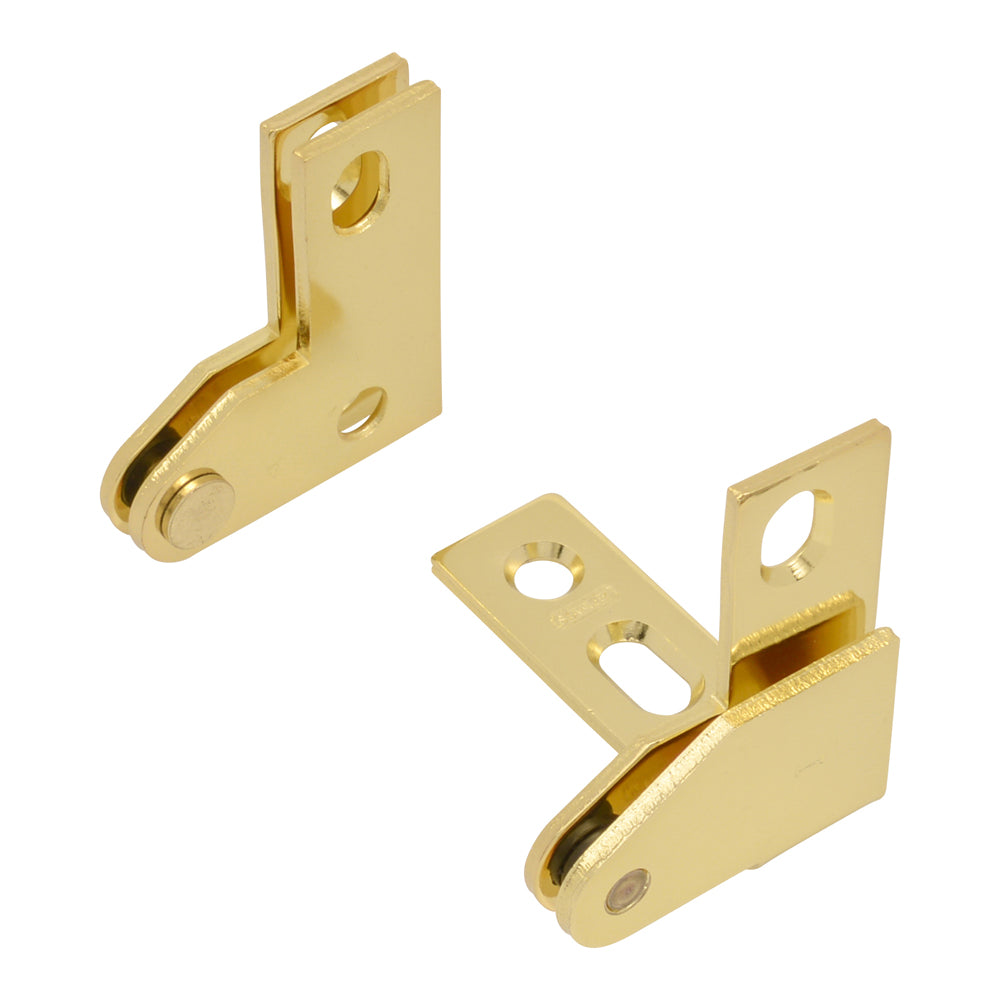

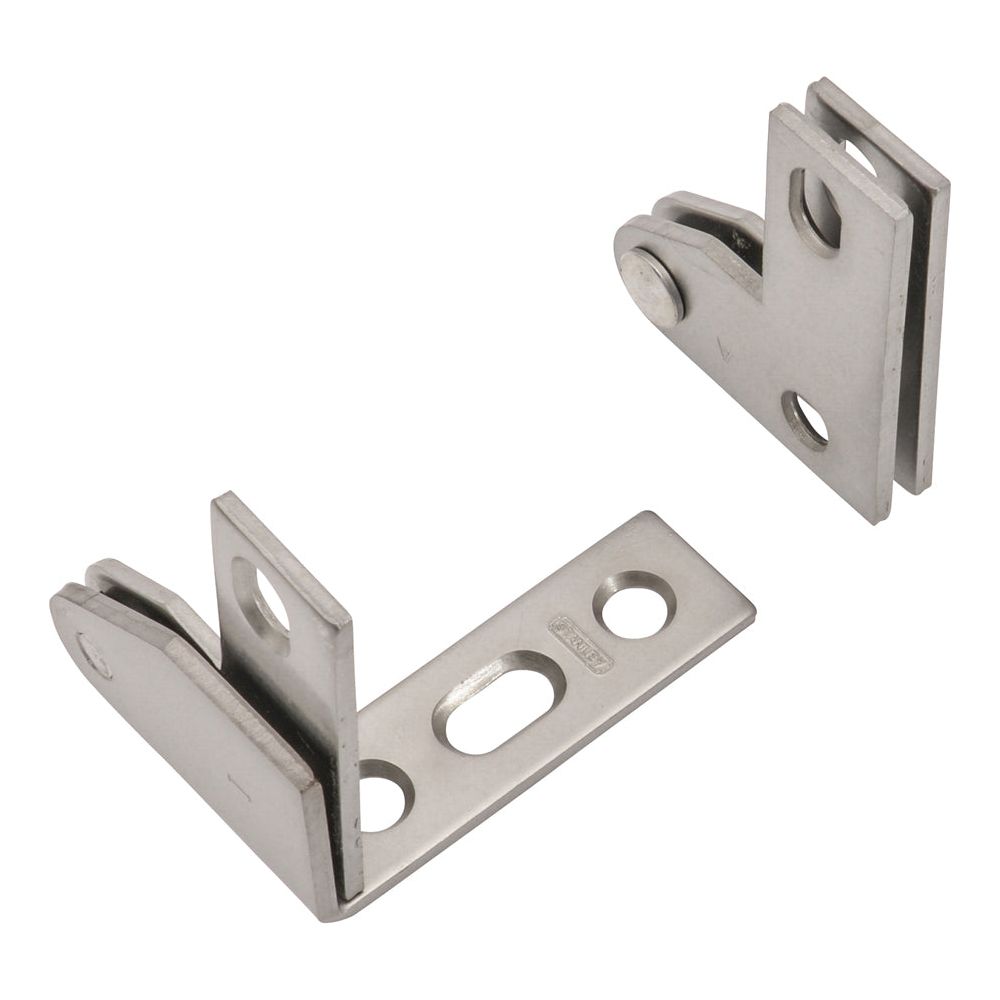

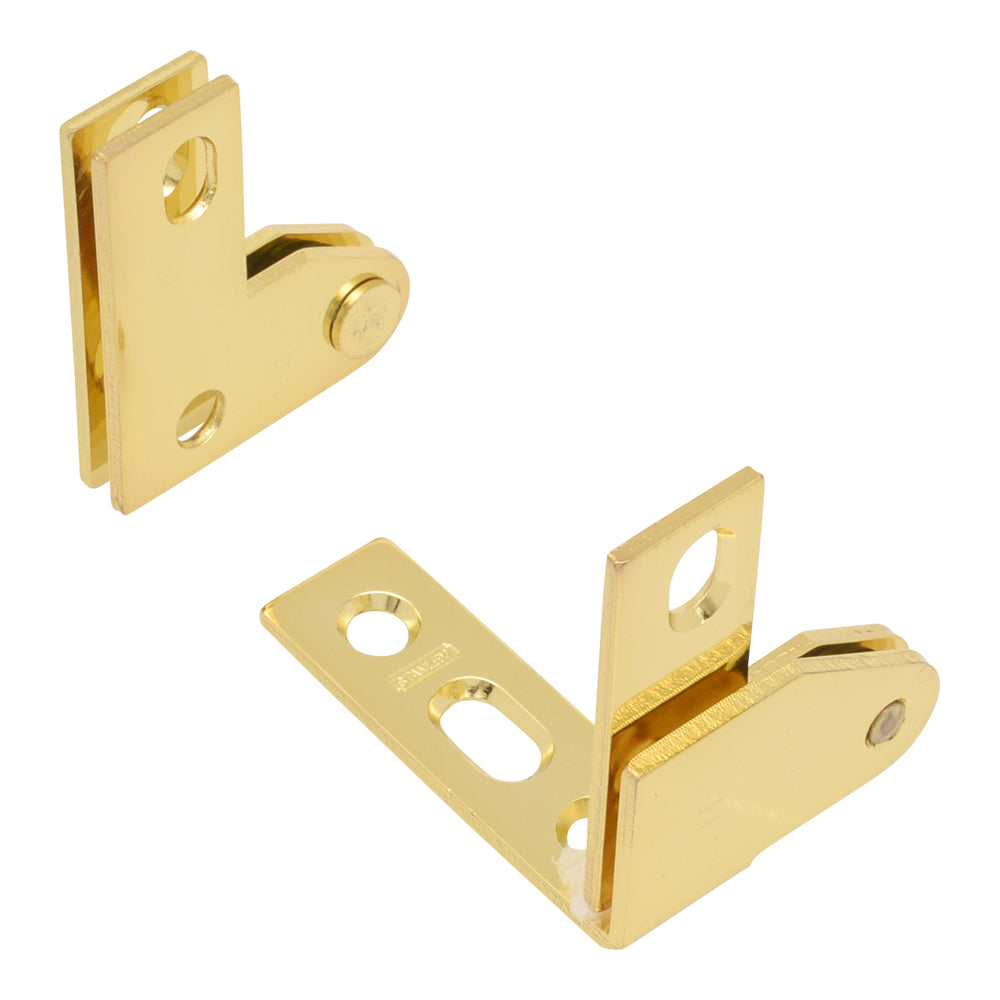

- These pivot hinges are handed (Right Hand or Left Hand)

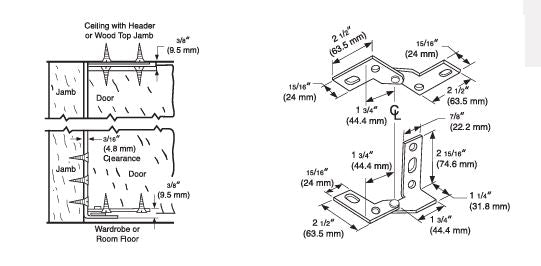

- Approximate measurements for top pivot: 2-1/2" long by 2-1/8" wide.
- Approximate measurements for bottom pivot: 2-1/2" long by 3" tall by 2-1/8" wide.
- Complete instructions are included.
- Sold by the set. A set is needed to install one door.
- See HD options under related products below.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10392
-
MaterialSteel
-
ActionSingle Acting
-
Mounting Hardware Included
-
Mounting Hardware Type
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
| Facet | |||||
|---|---|---|---|---|---|
| Price | |||||
| Price |
From
$3297
Per Set
Unit price
/
Unavailable
|
From
$3705
Per Set
Unit price
/
Unavailable
|
$5990
Per Set
Unit price
/
Unavailable
|
From
$13520
Per Set
Unit price
/
Unavailable
|
From
$6200
Per Pair
Unit price
/
Unavailable
|
| Description | |||||

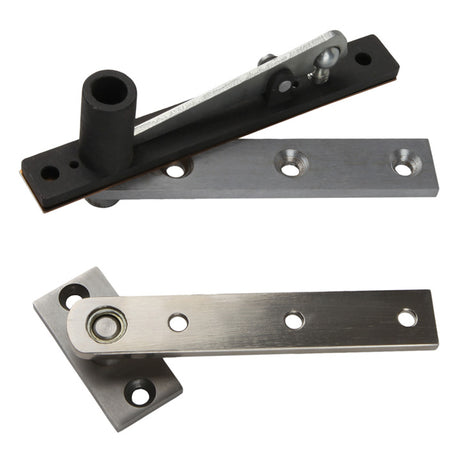

| Description | Ceiling and Floor mounted for a clean contemporary look. Only the hinge pivot shows when door is in the closed position. Floor-to-ceiling door... | For cabinet and wardrobe applications. Fits 1-1/8" to 1-3/8" thick doors Reversible (non-handed) for Right Hand or Left Hand installations For doors up... | Extra Heavy Duty for doors up to 150 lbs For overlay doors 1-3/8" to 1-3/4" thick (35mm to 44mm). Ideal for wardrobe doors... | This Rixon style pivot hinge is high quality at a great price. Features oil impregnated sintered bronze bearing on top pivot. Center hung... | Pivot hinge for large cabinet doors and fullz size doors. Made of solid brass with steel pins For tall doors an intermediate pivot... |
