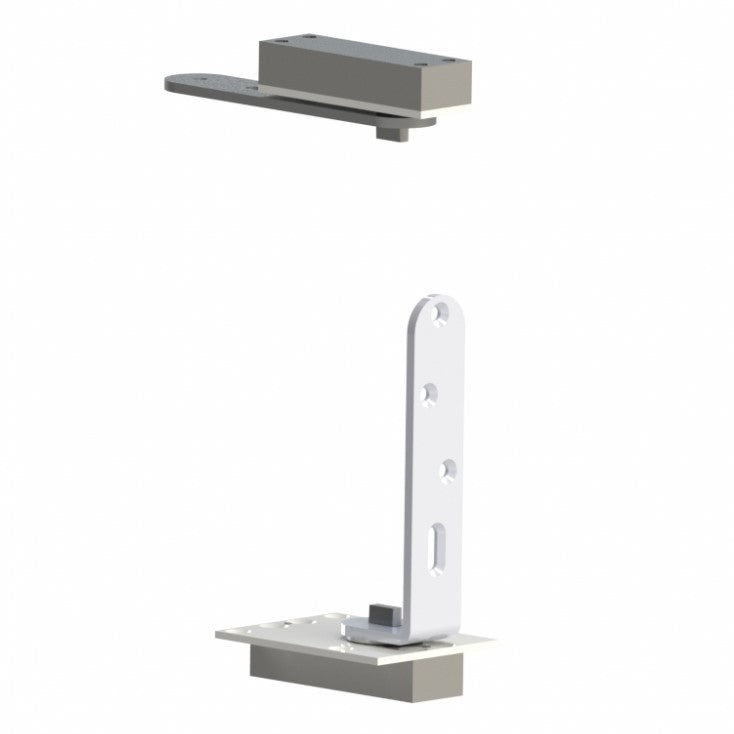

Mortised Camtrol Double Action Pivot Set
Couldn't load pickup availability
Description
Description
- Also known as a Double Acting Hinge.
- Spring loaded pivot set, free swing between 90 & 31 degrees, self closes at 30 degrees.
- Do not open beyond 90 degress or damage to the pivot will occur.
- This product is the same as our SKU 234025 except that the bottom pivot mounts in a mortise instead of installing surface mounting.
- Made for masonry or wood floor installations. This application requires a minimum 3/8" gap and a maximum 1" gap between the bottom of the door and the surface of your floor.
- For use on wood or metal doors not larger than 3.5 feet wide and 7 feet tall.
- Camtrol action makes possible a snug application without rounding of the door edge.
- Cam boxes are solid brass, door brackets are steel (satin chrome plated).
- Cam box trim plates are brass (satin chrome plated).
- For door thicknesses of 1-3/8" to 1-3/4".
- Top cam box measures 3-7/8" by 1-1/4" by 7/8" tall.
- Bottom surface mount plate measures 3-7/8" by 3".
