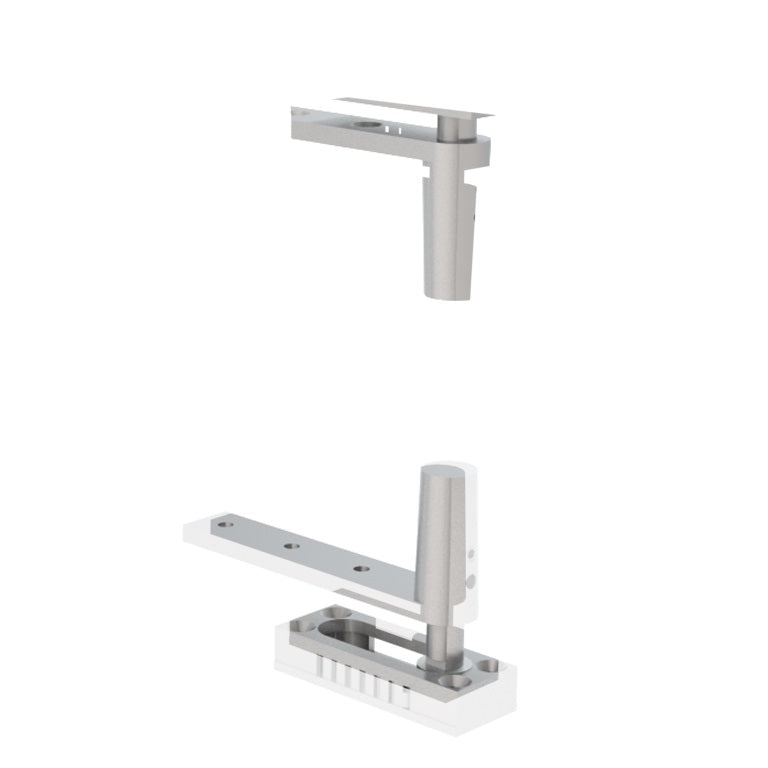

Rack And Pinion Pivot Set
Couldn't load pickup availability
Description
Description
- Used for full size doors where a hidden door application is desired.
- As the door opens, the Rack and Pinion Pivot moves the pivot point away from the door jamb (7/8" movement) so that the hinge side edge of the door does not need to be rounded.
- Maximum opening angle is 105 degrees.
- Opening beyond 105 degrees will damage pivot!
- Top and bottom gear boxes are designed to be fully mortised into floor and door frame.
- Frame not to have door stop at head and pivot jamb.
- Standard application is for 1-3/8" and 1-3/4" doors.
- This unit is sold by the set. One set is needed per door.
- Maximum door width is 36".
- Maximum door height is 84".
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 234029
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Weight Rating
-
ActionSingle Acting
-
Mounting Hardware Included
-
Mounting Hardware Type
