SKU: 896014

Topless Pivot Hinge for Arch Top Doors

$42792 Per Set
Finish Name: Oil Rubbed Bronze
Handing

Description

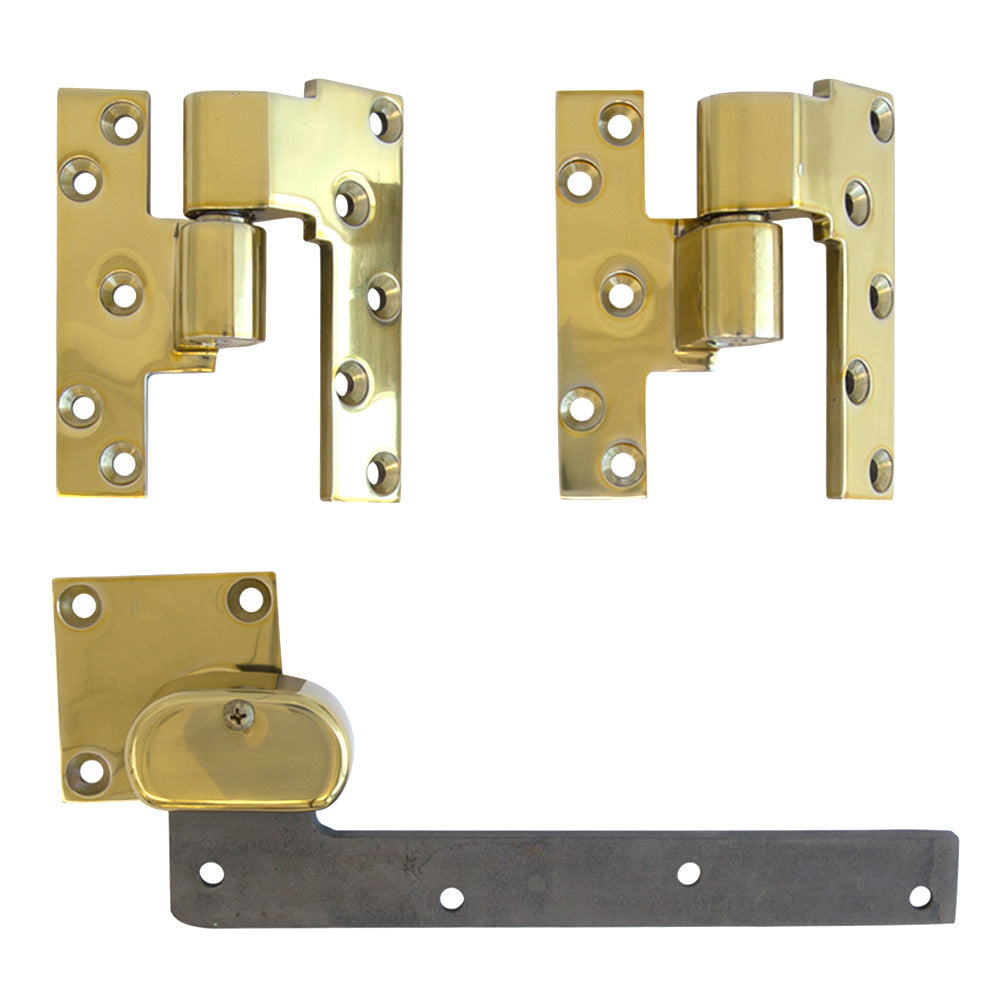

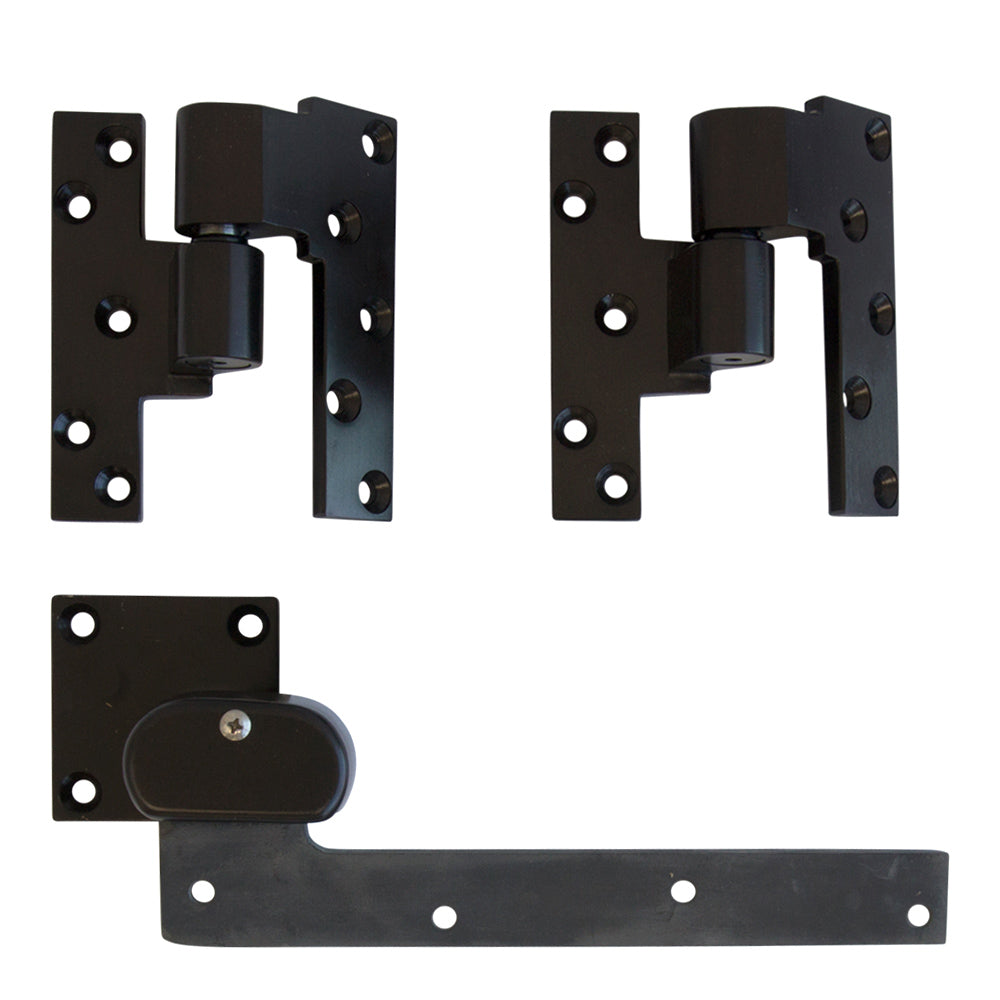

  • Set consists of two intermediate pivot hinges and a bottom pivot hinge.
  • Handing pictured is a left hand.
  • Pivot hinge set is made for arch top (curved top) doors.
  • Hinge set allows door to swing up to 180 degrees (depending on trim).
  • For door heights ranging from 60" to 90" and door widths up to 3 feet 6 inches.
  • Set includes wood screws, machine screws and masonry anchors for the bottom pivot.
  • Hinge set us UL Listed.
  • Bottom pivot attaches to floor.
  • Pivot point of hinge set is 3/4" (measured to face of door).
  • Door edges must be beveled (1/8" in 2").
  • Made from solid brass and steel parts.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10579

  • Weight Rating
    500 lbs Per Set
  • Action
    Single Acting
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Matching Fasteners
