3" x 3-1/2" Half Surface Hinge
Couldn't load pickup availability
Description
Description

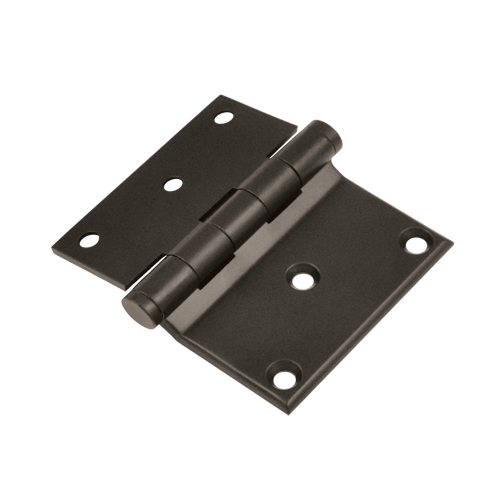

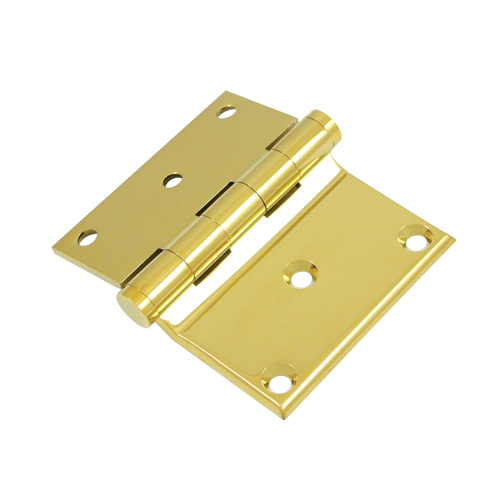

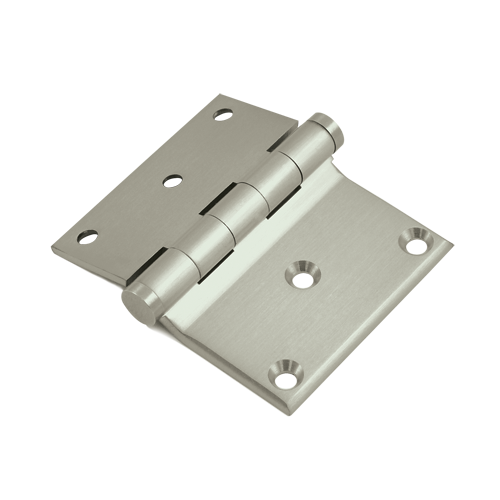

- Half surface hinge; one leaf mortises into the door frame the other leaf is surface mounted on the door
- When the hinge is in its 90 degree closed position (as shown in the photo) the "mortise leaf" that attaches to the door jamb will need a 1" wide mortise on the door jamb. The "surface leaf" will cover 2" of width on the surface of the door.
- Excellent for installing a new door or screen door into an existing frame
- Lifetime Brass is a brass high tech material that is guaranteed not to tarnish, discolor, flake, peel, pit or corrode.
- 3" x 3-1/2" measured open like a book.
- The surface mounted leaf measures 3" tall x 2" wide measured to the center of the hinge knuckle.
- The mortise leaf measures 3" tall x 1-1/2" wide measured to the center of the hinge knuckle.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10511
-
MaterialBrass
-
Length
-
Size3" x 3-1/2"
-
Width
-
Mounting Hardware Included
-
Mounting Hardware Type
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
| Facet | ||||
|---|---|---|---|---|
| Price | ||||
| Price |
$1643
Per Pair
Unit price
/
Unavailable
|
From
$5863
Per Pair
Unit price
/
Unavailable
|
From
$861
Per Pair
Unit price
/
Unavailable
|
$2824
Per Pair
Unit price
/
Unavailable
|
| Description | ||||
| Description | brass oilite bearings to reduce wear for wood or metal screen or storm doors full or half mortise application one leaf is swagged... | Half Surface hinge, one leaf mortises into the door frame and the other leaf is surface mounted on the door. Hinge Features: Adjustable... | Hinge for storm doors and screen doors. 3" tall x 2-1/2" wide in the open position. Hinge pin is removable. Sold in a... | Tight pin allows for either right or left hand applications. Adjustable spring tension to allow varying closing speeds depending on your application. No... |
Frequently Asked Questions
How long does it take to get my hardware once it's been ordered?
How long does it take to get my hardware once it's been ordered?
The delivery time depends on how far you live from our San Diego warehouse. Generally, your order will reach you in 1 to 5 business days. Shipments do not move on weekends and holidays.
Do you ship merchandise outside the United States?
Do you ship merchandise outside the United States?
At this time, we only ship to addresses in the continental United States, Alaska, and Hawaii. For APO/FPO/DPO and Canadian orders, please email info@hardwaresource.com with a list of the SKU numbers and quantities you would like to purchase, along with your complete ship to address. Once we receive this information we will email you a shipping quote. Please note: Canadian shipments have a $50.00 minimum order.
I have a hinge that I am trying to replace but I need help identifying it. Can you help?
I have a hinge that I am trying to replace but I need help identifying it. Can you help?
Yes! Please click here to visit our Hinge Finder page.
Some of your hinges are sold by the each and some sell by the pair. What is the difference?
Some of your hinges are sold by the each and some sell by the pair. What is the difference?
When the unit of measure says “pair” that means two hinges. Usually you need one pair of hinges per door. When the unit of measure says “each” that means one hinge. You would usually order 2 “each” hinges per door.
I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?
I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?
Unfortunately, hinge manufacturers have never standardized the location of their screw hole patterns. Every manufacturer puts their screw holes in a slightly different place. This means that when you replace hinges you will almost certainly have to do some filling and redrilling. The exception to this is Architectural door hinges which are built to a standardized template for each size hinge.
