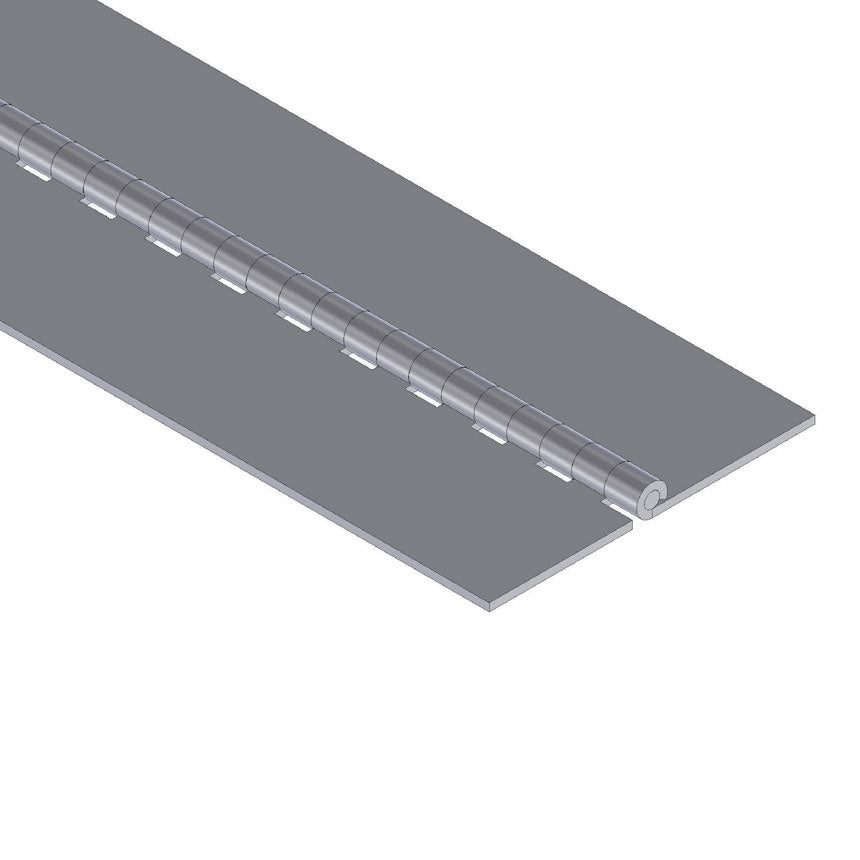

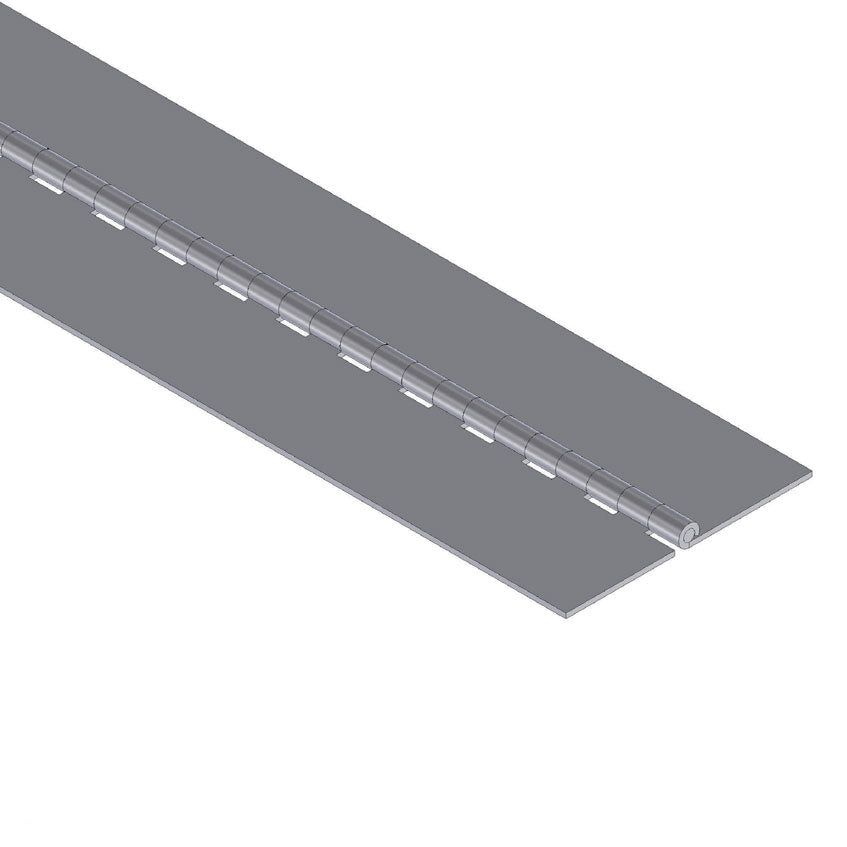

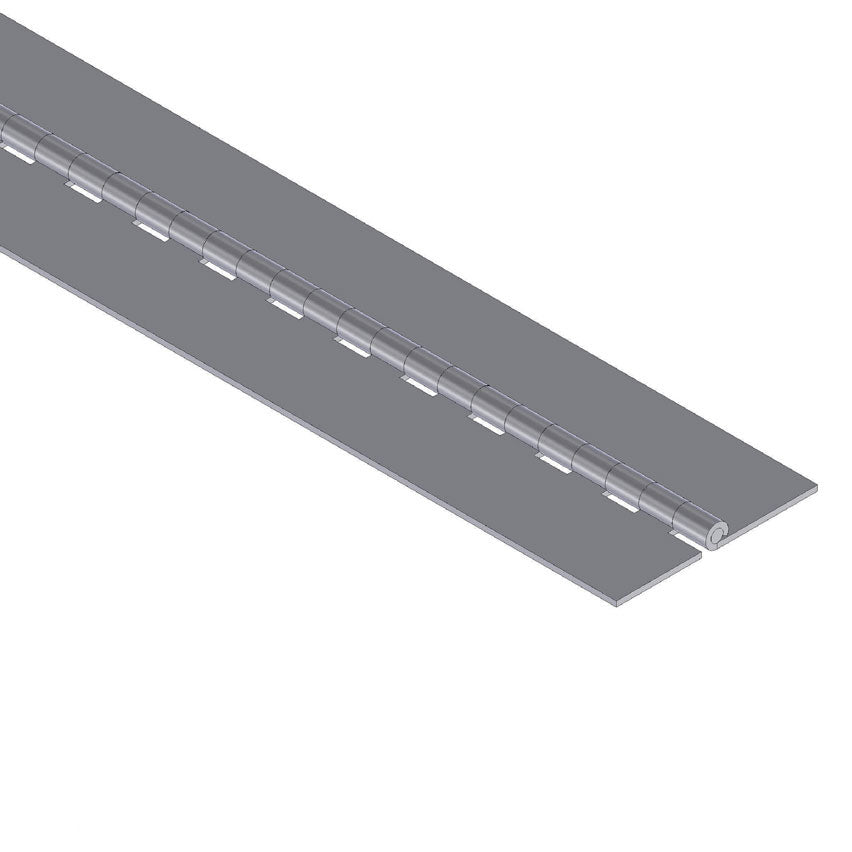

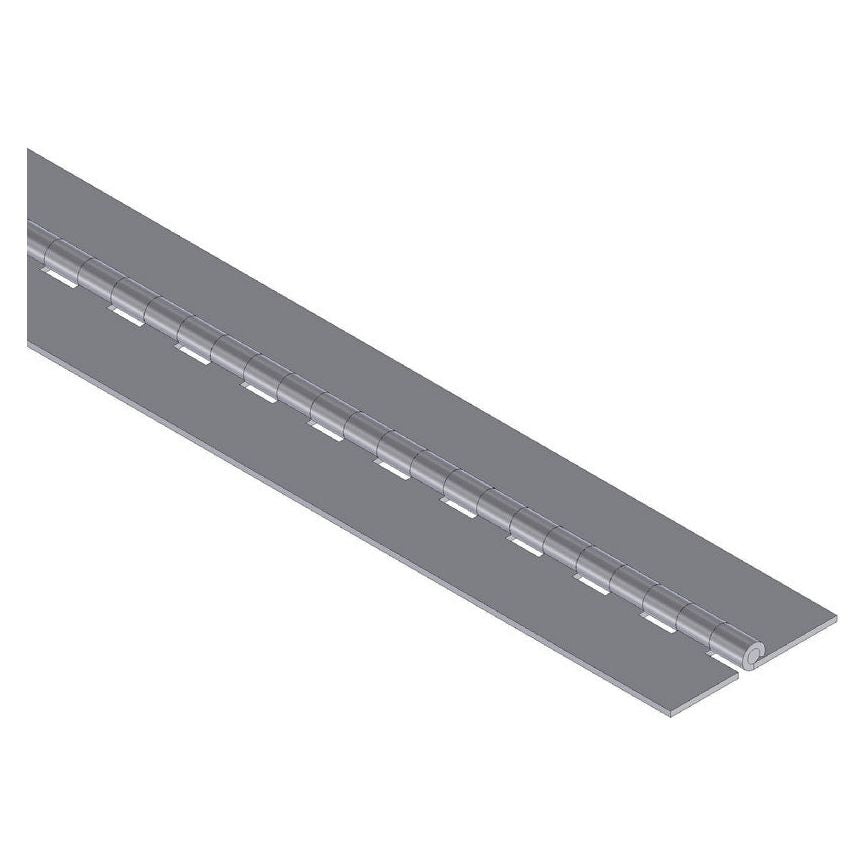

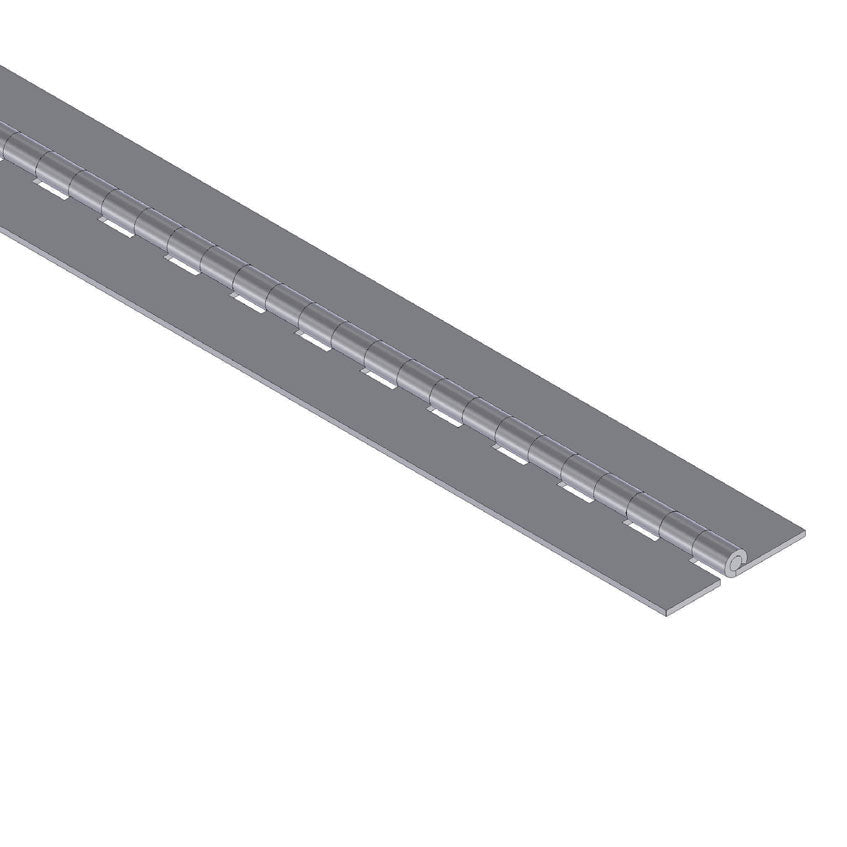

Aluminum Blank Piano Hinge
Couldn't load pickup availability
Description
Description
- This aluminum piano hinge is stocked in a 72" length.
- If you need the length to be shorter, this hinge can be cut down using a hack saw or band saw.
- Hinge has fairly good anti-corrosion properties.
- Aluminum is economically priced, but is not as strong as steel or stainless steel.
- Available in six open widths.
- Natural finish
- Knuckle length is 1/2".
- 3003H14 Alloy
Details
- 1-1/16" Wide Hinge: .040" Material thickness, .091" pin diameter
- 1-1/4" Wide Hinge: .040" Material thickness, .091" pin diameter
- 1-1/2" Wide Hinge: .040" Material thickness, .091" pin diameter
- 2" Wide Hinge: .040" Material thickness, .091" pin diameter
- 2-1/2" Wide Hinge: .060" Material thickness, .120" pin diameter
- 3" Wide Hinge: .050" Material thickness, .120" pin diameter
