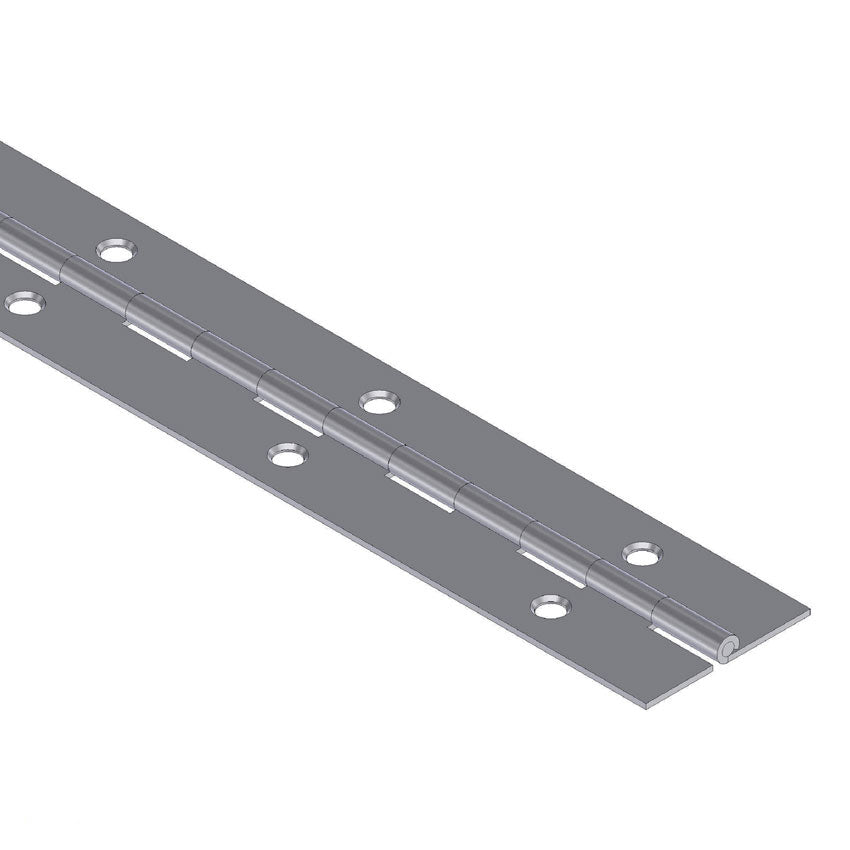

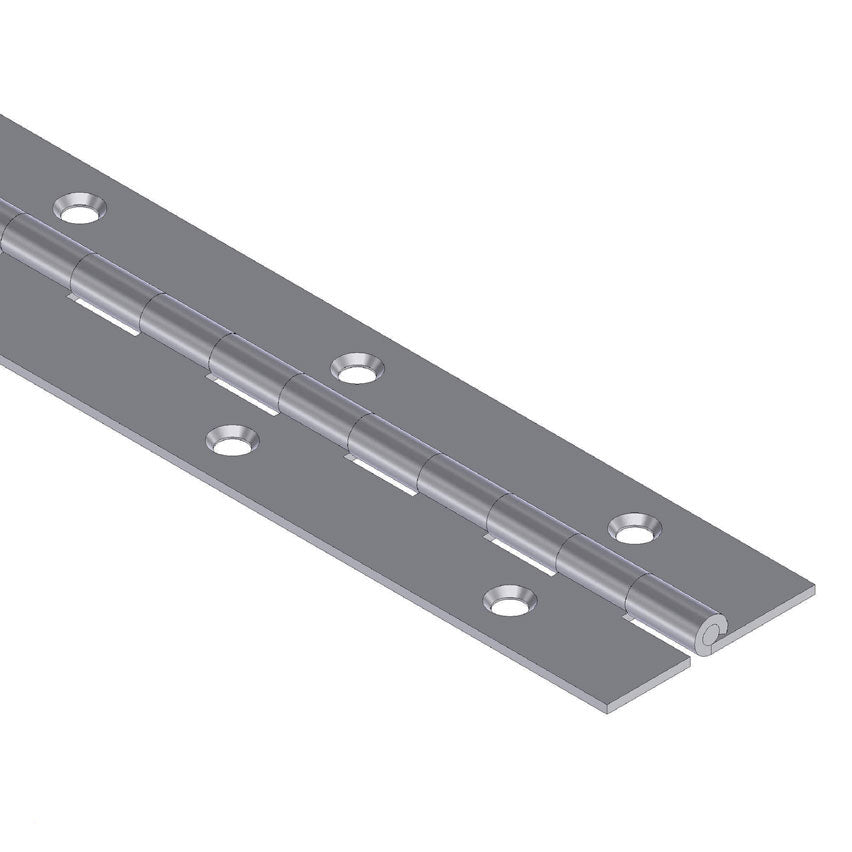

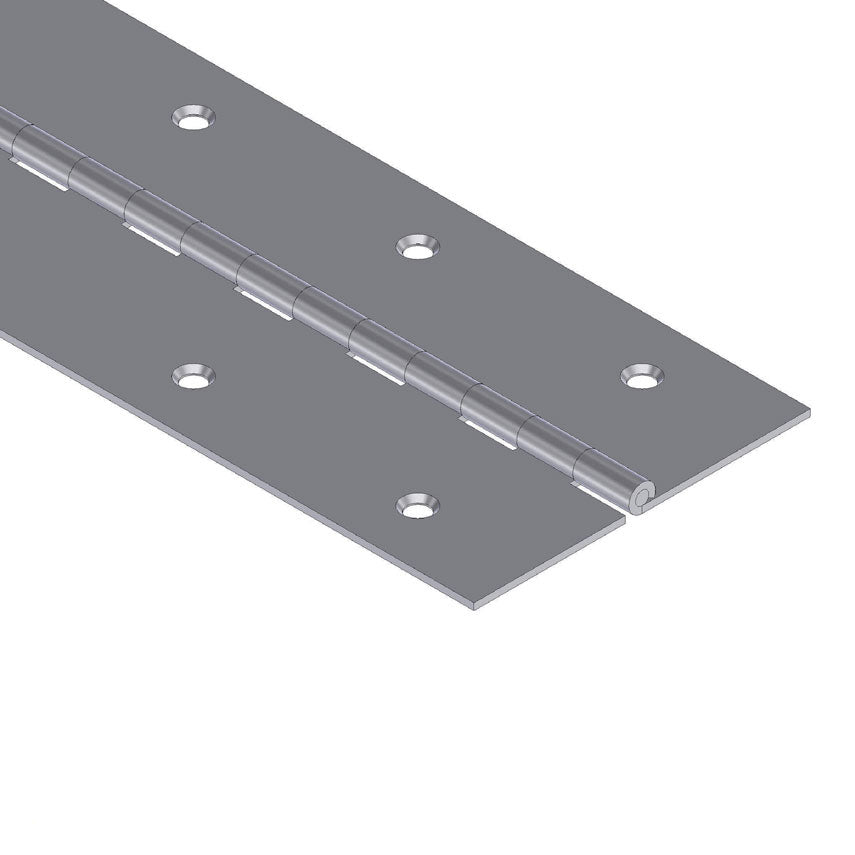

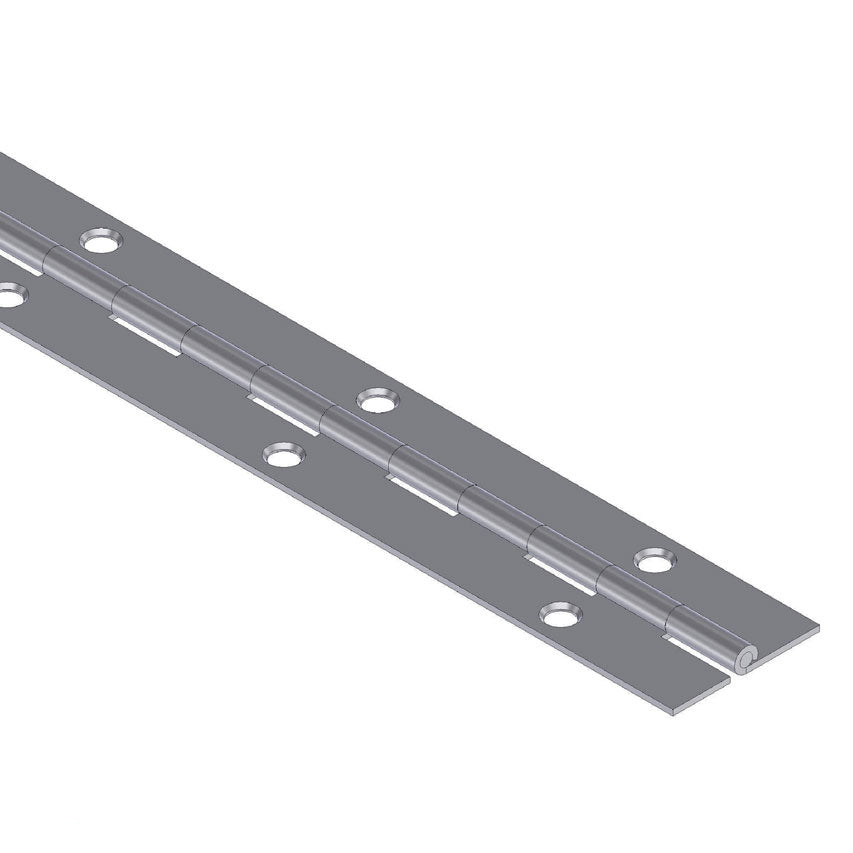

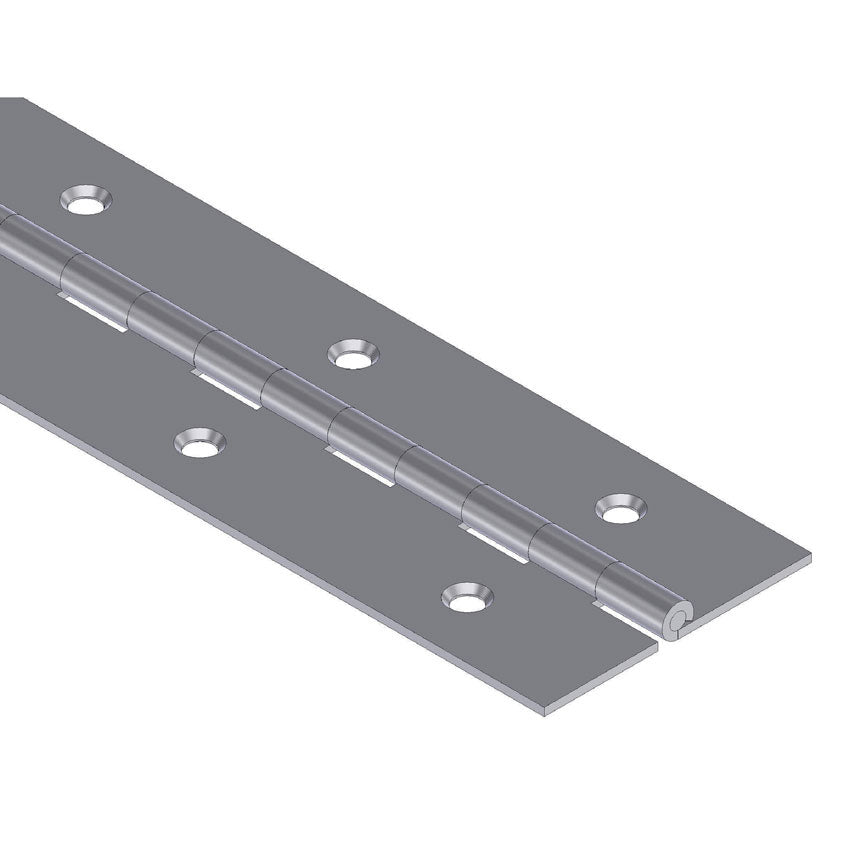

Aluminum Piano Hinge with Holes
Couldn't load pickup availability
Description
Description
- This aluminum piano hinge is stocked in a 72" length.
- If you need the length to be shorter, this hinge can be cut down using a hack saw or band saw.
- Hinge has fairly good anti-corrosion properties.
- Aluminum is economically priced, but is not as strong as steel or stainless steel.
- Available in five open widths.
- Natural finish
- Screw holes are 2" apart from center to center.
- Knuckle length is 1/2".
- A full length piano hinge uses 72 screws per hinge. (Not included)
- 3003H14 Alloy
Details
- 1-1/16" Wide Hinge: .040" Material thickness, .091" pin diameter, uses #4 flat head screws
- 1-1/4" Wide Hinge: .040" Material thickness, .091" pin diameter, uses #4 flat head screws
- 1-1/2" Wide Hinge: .060" Material thickness, .120" pin diameter, uses #6 flat head screws
- 2" Wide Hinge: .060" Material thickness, .120" pin diameter, uses #6 flat head screws
- 2-1/2" Wide Hinge: .060" Material thickness, .120" pin diameter, uses #6 flat head screws
- 3" Wide Hinge: .060" Material thickness, .120" pin diameter, uses #6 flat head screws
