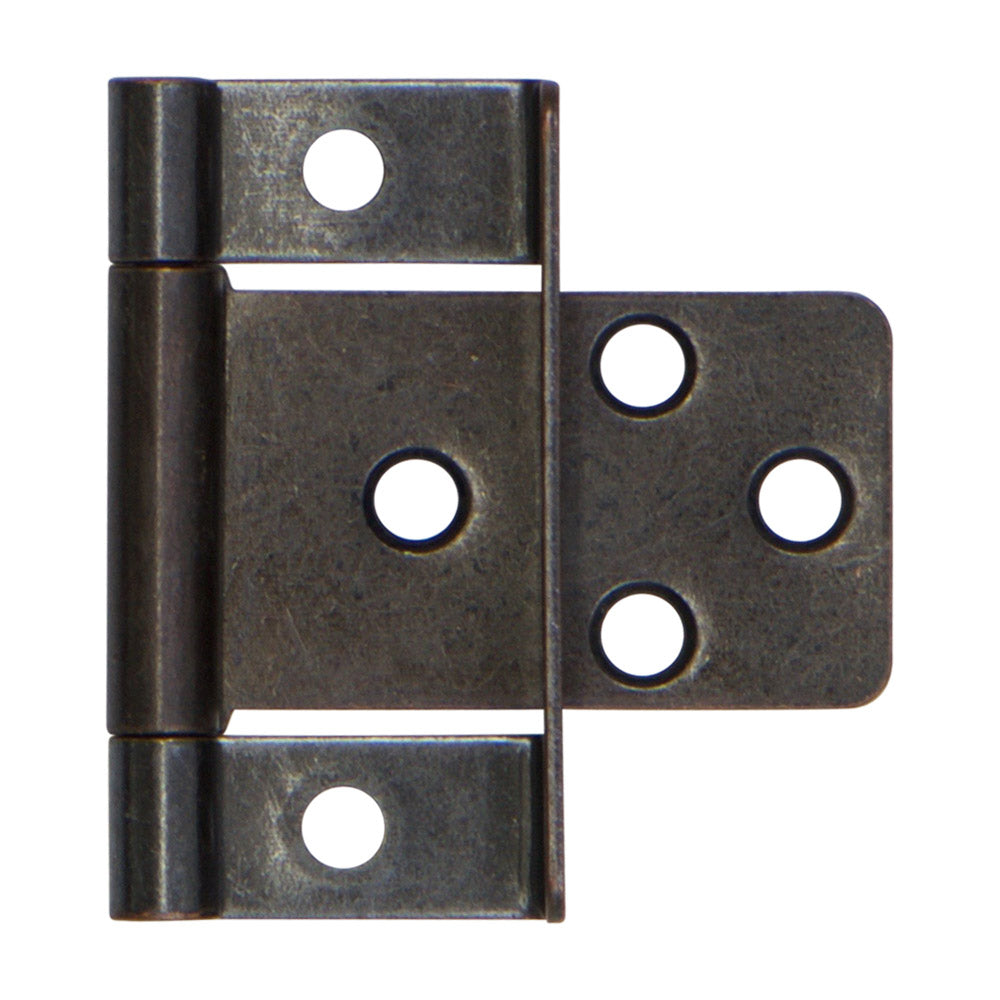

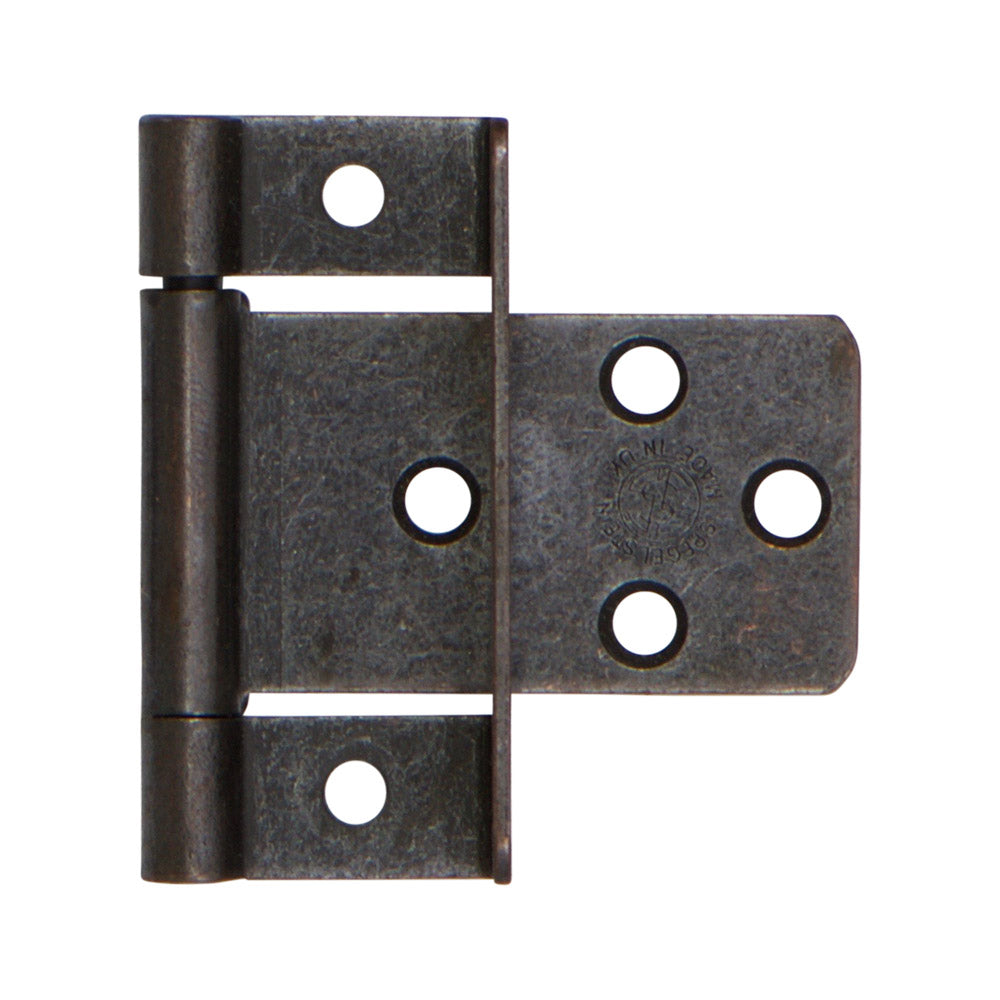

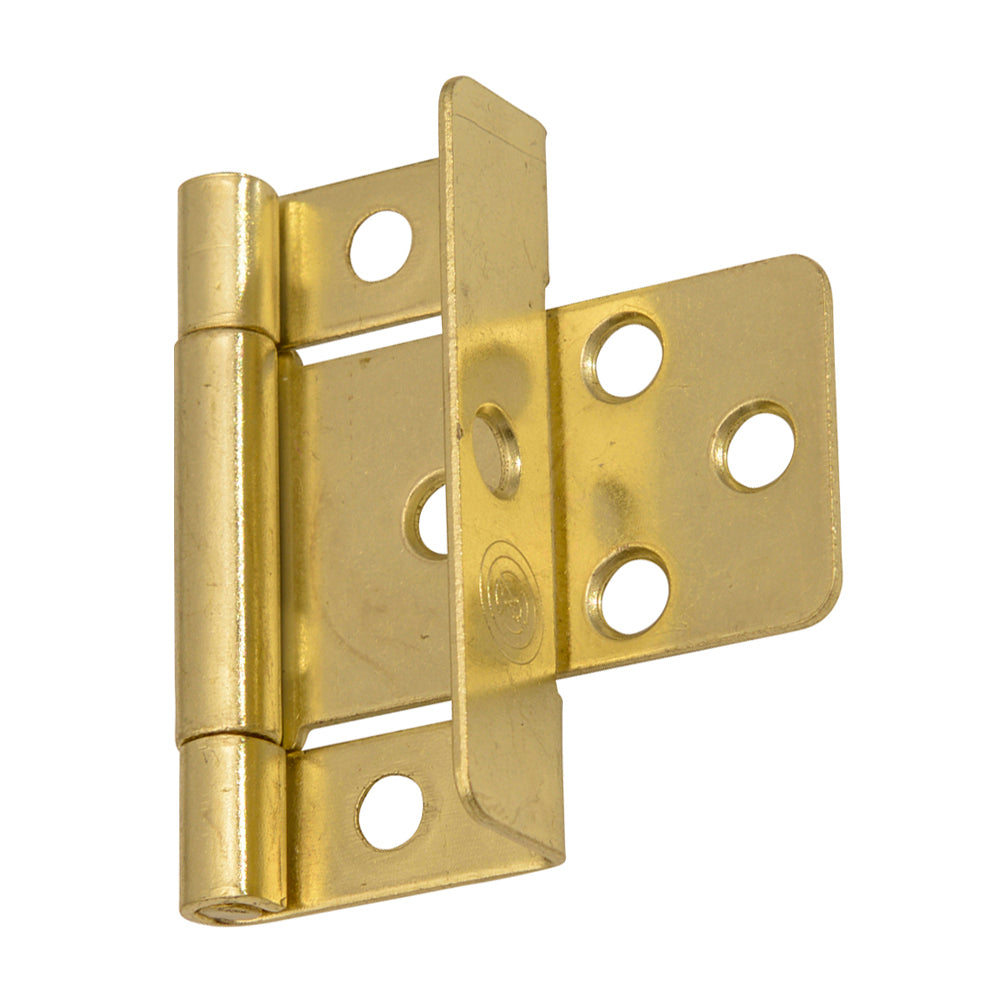

No Mortise Lid Hinge
Couldn't load pickup availability
Description
Description
- For lift lids on stereos, toy chests, piano benches, etc.
- Hinge measures 2" tall along hinge pin. Lid leaf measures 1-5/8" by 1"
- Opens approximately 195 degrees
- "Size" refers to the thickness of the back wall of the box.
- For the bronze model order our SKU #286253 (#4 x 5/8") bronze screws.
- For the brass model use #4 flat head brass screws.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10553
-
MaterialSteel
-
Mounting Hardware Included
-
Mounting Hardware Type
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
| Facet | |||
|---|---|---|---|
| Price | |||
| Price |
From
$1280
Per Pair
Unit price
/
Unavailable
|
$899
Each
Unit price
/
Unavailable
|
From
$363
Each
Unit price
/
Unavailable
|
| Description | |||
| Description | This chest lid hinge is made from .080 guage steel Use for chests, toy boxes, bench seats, or any 3/4" full-overlay door application.... | Recommended for toy chests, cedar chests, blanket chests, etc. Screws are NOT included. Order our sku #286252 Toy box lid support self-balancing feature... | Non-mortise (or no-mortise) hinges are great for use on interior shutters, bi-fold doors, cabinets or screens. Installs like a full mortise butt hinge... |
Frequently Asked Questions
How long does it take to get my hardware once it's been ordered?
How long does it take to get my hardware once it's been ordered?
The delivery time depends on how far you live from our San Diego warehouse. Generally, your order will reach you in 1 to 5 business days. Shipments do not move on weekends and holidays.
Do you ship merchandise outside the United States?
Do you ship merchandise outside the United States?
At this time, we only ship to addresses in the continental United States, Alaska, and Hawaii. For APO/FPO/DPO and Canadian orders, please email info@hardwaresource.com with a list of the SKU numbers and quantities you would like to purchase, along with your complete ship to address. Once we receive this information we will email you a shipping quote. Please note: Canadian shipments have a $50.00 minimum order.
I have a hinge that I am trying to replace but I need help identifying it. Can you help?
I have a hinge that I am trying to replace but I need help identifying it. Can you help?
Yes! Please click here to visit our Hinge Finder page.
Some of your hinges are sold by the each and some sell by the pair. What is the difference?
Some of your hinges are sold by the each and some sell by the pair. What is the difference?
When the unit of measure says “pair” that means two hinges. Usually you need one pair of hinges per door. When the unit of measure says “each” that means one hinge. You would usually order 2 “each” hinges per door.
I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?
I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?
Unfortunately, hinge manufacturers have never standardized the location of their screw hole patterns. Every manufacturer puts their screw holes in a slightly different place. This means that when you replace hinges you will almost certainly have to do some filling and redrilling. The exception to this is Architectural door hinges which are built to a standardized template for each size hinge.
What is your return policy?
What is your return policy?
You can see our complete return policy here: HardwareSource Returns
