7/8" Offset Die Cast Refrigerator Hinge
Couldn't load pickup availability
Description
Description

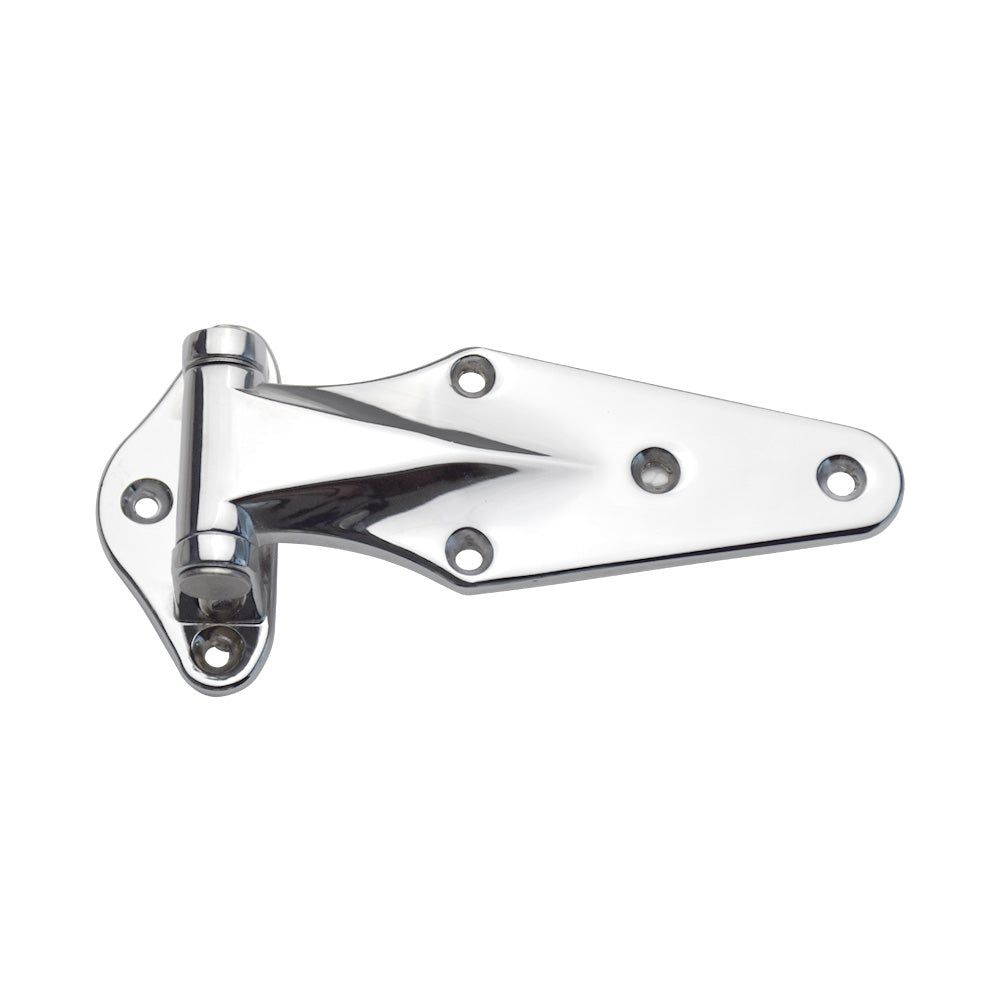

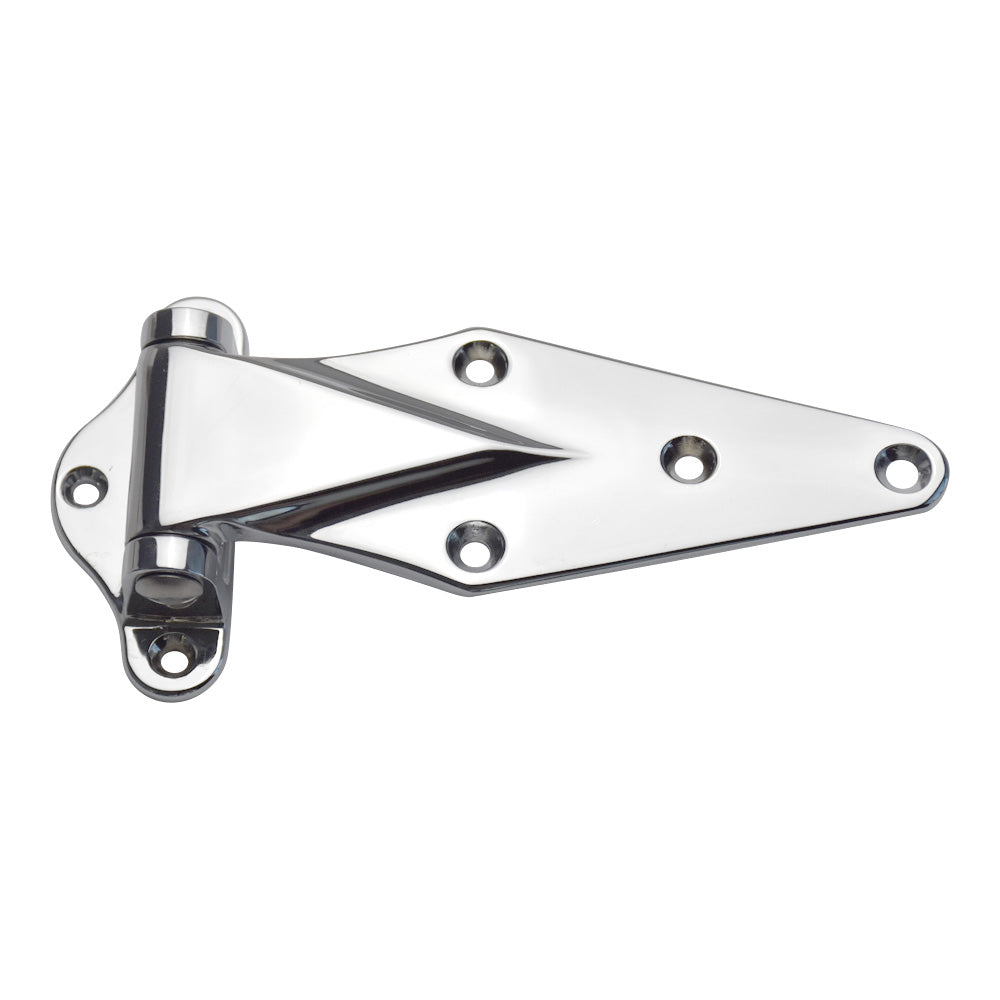

- Surface mounted die cast refrigerator door hinge.
- Made from a die-cast zinc base. Stainless steel pin.
- Highly polished chrome plated.
- Weight rating for a pair of these hinges is approximately 100 lb.
- 7/8" Offset. The offset is measured from the face of the door to the face of the door frame.
- Available in either a 6" or 7-3/32" overall length.
- Flange height is 3-23/32".
- For a similar look, consider our die cast narrow flange fridge door hinges.
Screws
- Screws are not included.
- The 6" size uses six #8 flat head screws and eight #10 flat head screws per pair of hinges.
- The 7-3/32" size uses fourteen #8 flat head screws per pair of hinges.
