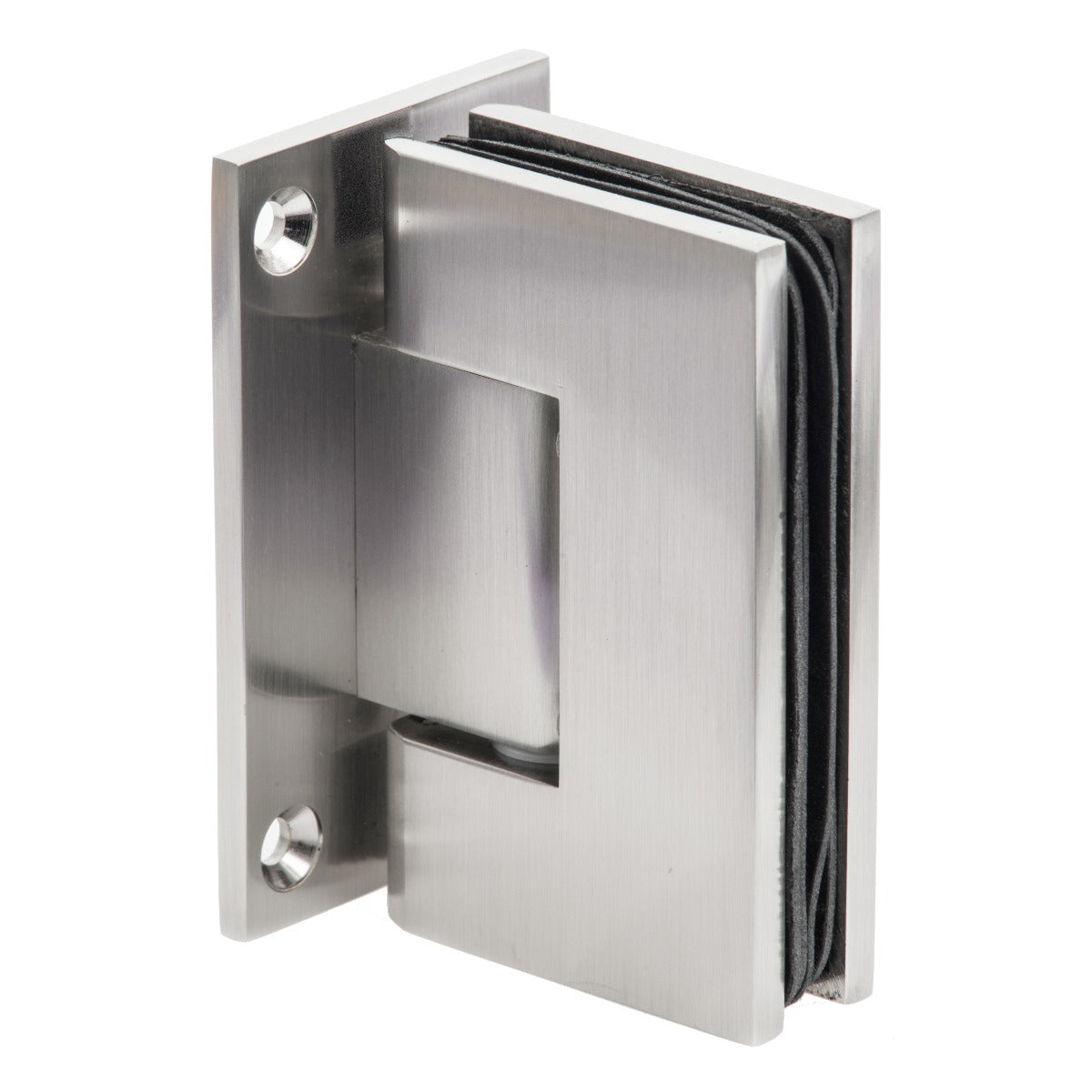

Brushed Nickel Shower Door Hinge
Couldn't load pickup availability
Description
Description
- This high quality shower door hinge is designed to fit industry standard templates. It features a solid brass drop forged construction, stainless steel coil springs, and a stainless steel reversible hinge pin. The reversible hinge pin allows the hinge to be set at 0 degrees or 5 degrees. The 5 degree setting holds the door against a stop.
- Fits tempered glass 3/8" to 1/2" thick. Installation requires a cutout in the glass where the hinge is installed.
- Wall to glass installation type.
- The wall plate measures 1-15/16" W x 3-1/2"H. The glass leaf measures 2-1/8"W x 3-1/2".
- Includes gaskets and allen wrench.
Weight Ratings
For 3/8" thick glass:
- 2 hinges will support 80lbs and a 28" maximum width.
- 3 hinges will support 120lbs and a 32" maximum width.
For 1/2" thick glass:
- 2 hinges will support 80lbs and a 26" maximum width.
- 3 hinges will support 120lbs and a 30" maximum width.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 755004
-
Finish Name
-
MaterialBrass
-
Opening Angle90 Degrees
-
Mounting Hardware Included
