Vertical Swing Lift-Up Mechanism
Couldn't load pickup availability
Description
Description

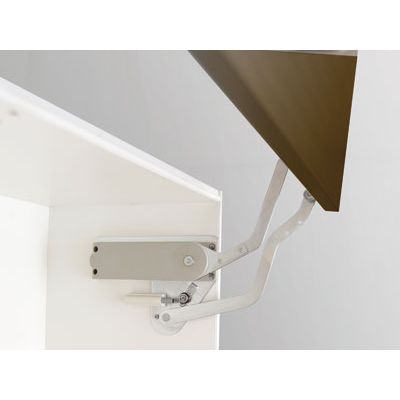

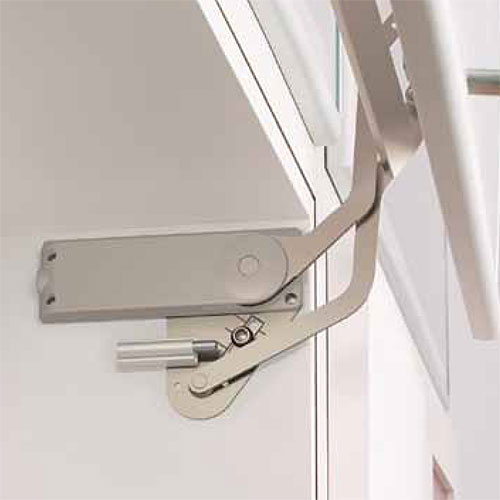

- Vertical Swing Lift-Up Mechanism for Cabinet Doors
- Mechanism lifts up the cabinet door and holds it in the open position.
- This product is for frameless cabinets with overlay doors. It may be installed on a face frame cabinet but the installer must "block out" behind the cabinet face frame.
- For door widths between 600 and 900 mm (23-5/8" to 35-7/16")
- For door heights between 390 and 450 mm (15-23/64" to 17-23/32")
- Available in 3 different models:
- For doors weighing between 5.5 to 7.7 lb (Sugatsune SLUN-3-N)
- For doors weighing between 7.9 to 9.9 lb (Sugatsune SLUN-4-N)
- For doors weighing between 10.1 to 11.4 lb (Sugatsune SLUN-5-N)
- See the documents found under Downloads for further details.
- Made from Nickel Plated steel with some gray plastic parts
- Product includes:
- Left and right side mechanisms
- Dampers to soften final closing action
- Guide bar which installs on the inside of the door and connects the two mechanisms (guide bar needs to be cut by the installer or end user prior to installation)
- Printed installation instructions
- This product is sold by the set. A set is what is needed to hang one door.
Warranty
Warranty
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10670
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Mounting Hardware Included
