Truth Stud Bracket
Couldn't load pickup availability
Description
Description

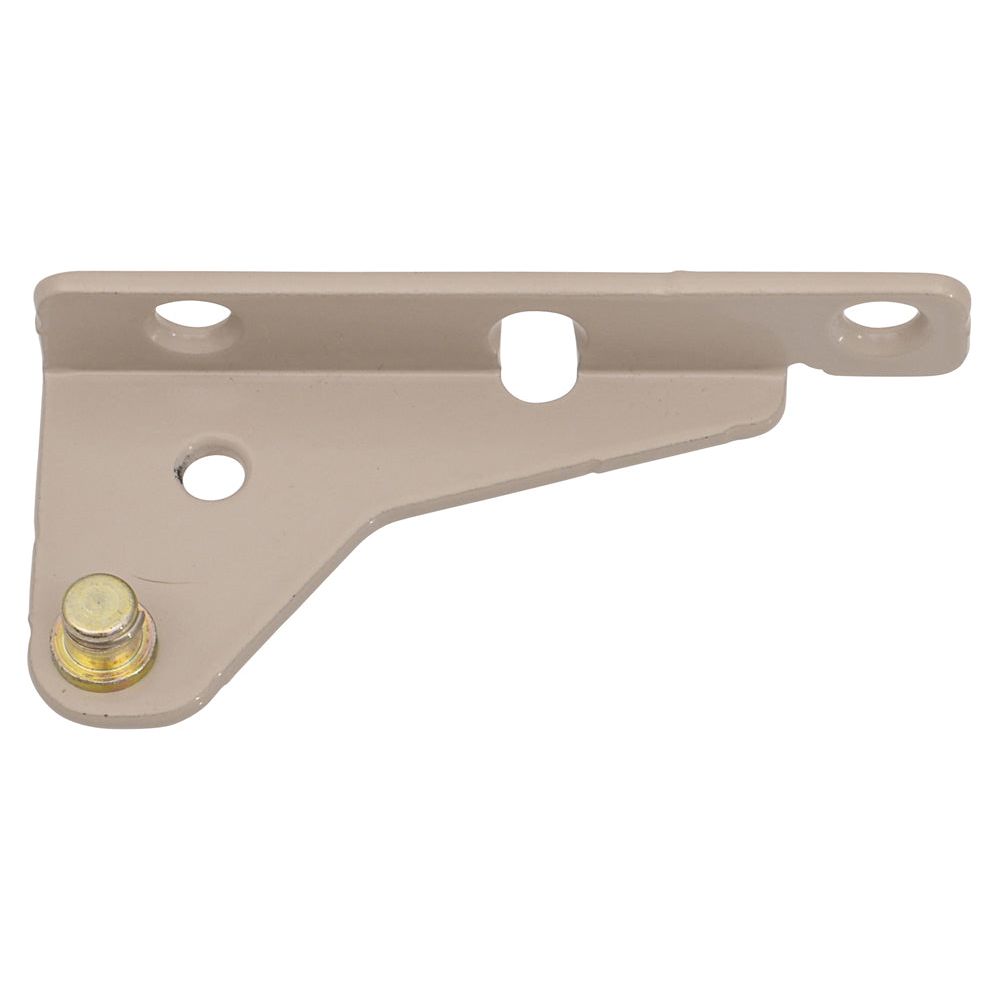

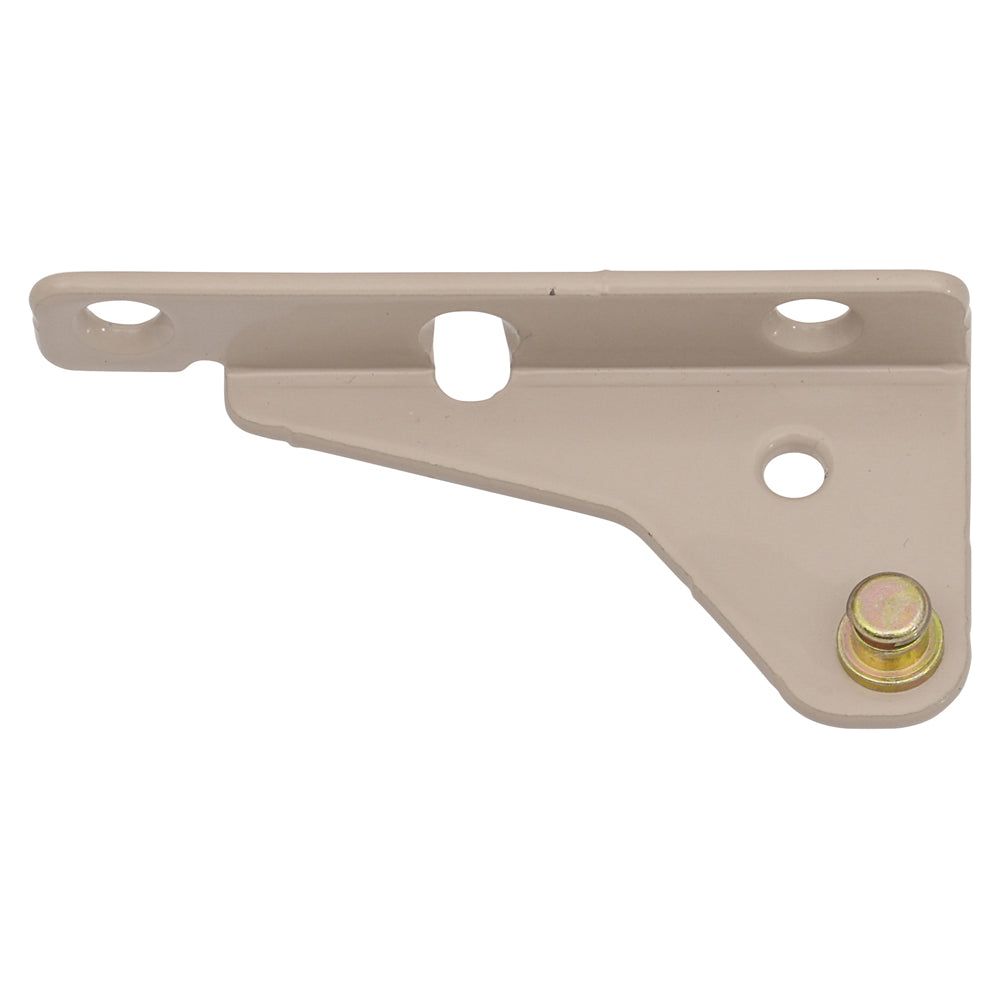

- Stud brackets are used to attach the operator's arm to the window.
- Attach the stud bracket to the operator's arm using the Truth casement operator clip, SKU-800354, sold separately.
- The overall length of the bracket measures 3".
- Screw hole spacing measures 2-3/16" center-to-center.
- Flange with stud projection measures 1-3/8" overall from the face of the sash.
- The stud projection from the face of the sash is 1-1/8" to the center of the stud.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10411
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Mounting Hardware Included
-
Mounting Hardware Type
