Sugatsune  |  SKU: 658980, 658982

Heavy Duty European Concealed Hinge

$3240 Each

Fasteners Not Included

Description

  • European style hinge and mounting plate system for larger overlay doors on frameless cabinets.
  • May be used on a face frame cabinet by "blocking out" behind the cabinet face frame.
  • This concealed European hinge is made of two parts, a hinge and a mounting plate, that snap together.

Installation

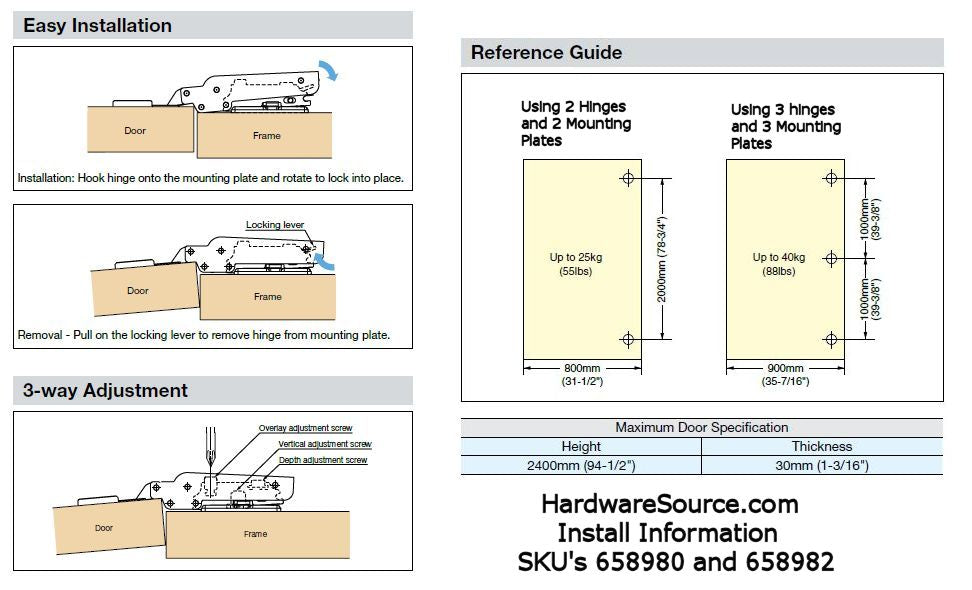

  • Works on door thicknesses of from 18 mm (23/32") to 34 mm (approximately 1-5/16"). For door thicknesses over 30 mm, the edge of the door needs to be chamfered.
  • For door overlays of from 20 mm (25/32") to 25 mm (just under 1")
  • This European style hinge Requires a 40 mm cup drilled in the back of the door. Cup depth is 15 mm.
  • Hinge is 3-way adjustable after installation.
  • Click on links below for bore distance, door thickness, and overlay chart.
  • This hinge is NOT a zero protrusion hinge:
    • The door when open does not clear the cabinet opening
    • It cannot be used with pull outs like drawers or pull out shelves
  • Screws are not included. The hinge requires two #10 screws and the mounting plate requires four, for a total of six screws. Screw length varies depending on the thickness of your door and cabinet side wall. Note that our #10 screws come in packs of two.

Capacities

  • Using 2 hinges per door:
    • Maximum door weight of 55 lbs
    • Maximum door width of 31-1/2"
  • Using 3 hinges per door:
    • Maximum door weight of 88 lbs
    • Maximum door width of 35-7/16"

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10068

  • Manufacturer
    Sugatsune
  • Model Number
    Hinge: J95-C24/25T
    Mounting Plate: J95-P6T
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    95 Degrees
  • Cup Diameter
    40mm
  • Screw Hole Spacing
    48mm (1-7/8")
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Six #10 Flat Head Screws
