Hettich  |  SKU: 306200, 306202, 306205, 652360

Hettich Markant Flap Hinge Bundle

$3876 Per Bundle

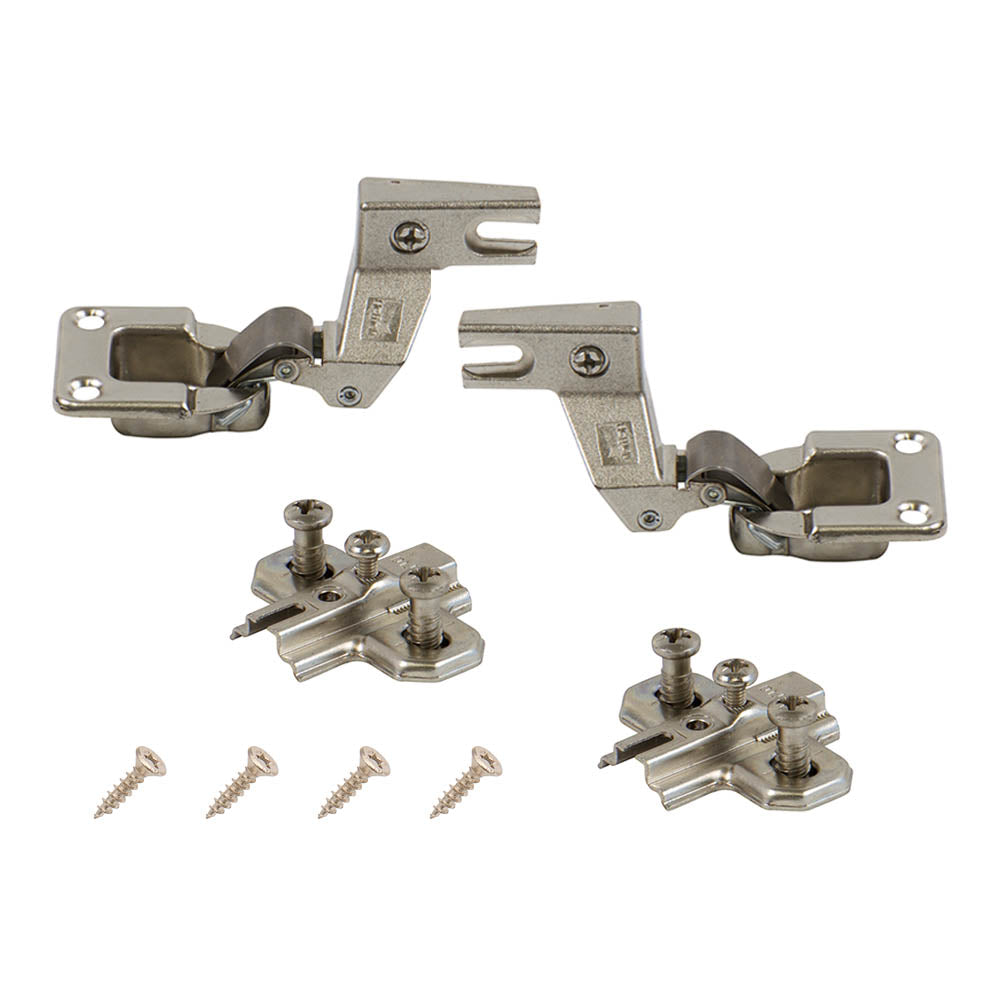

One bundle includes 1 left hinge, 1 right hinge, 2 mounting plates, and 4 screws.

Description

  • Hettich Flap hinge, Markant 7.1 for overlay installations.
  • For installation of "fold down" flaps on desks, drawers, etc. The hinge allows the front flap to fold down creating a horizontal work surface.
  • Complete unit is made up of two hinges (a right hand and a left hand hinge) and two mounting plates. Flap can be removed from desk after installation by loosening the screw on the mounting plate.
  • After installation both the depth and the height of the hinge may be adjusted plus or minus 2 mm.
  • The hinges fit into a 35mm (1-3/8") cup drilled into the surface of the flap.
  • This bundle includes two hinges and two mounting plates to hinge one flap.

What's Included

  • One left hand hinge
  • One right hand hinge
  • Two mounting plates
  • Four system screws are included for the mounting plates. They fit into 5 mm holes that are usually pre-drilled in the cabinet and spaced 32 mm apart. If you are not using the system screws you need four #10 pan head screws per bundle (you can use our SKU 135418).
  • Four #6 flat head wood screws for the hinges.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10046

  • Manufacturer
    Hettich
  • Model Number
    HET1083936, HET1083935, HET1079222
  • Finish Name
    Nickel
  • Material
    Steel
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Screw-On
  • Cup Diameter
    35mm
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Four #6 x 5/8" Flat Head Wood Screws

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet
Large Stainless Steel Pan Head Screws
View details

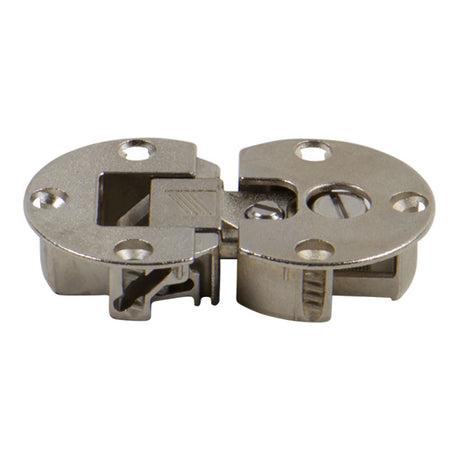

Hettich Flap Hinge
View details

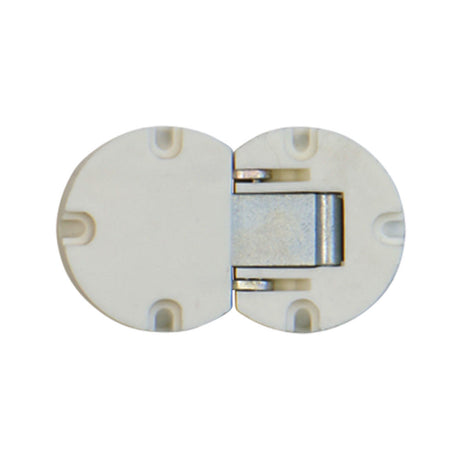

White Nylon Drop Flap Hinge
View details

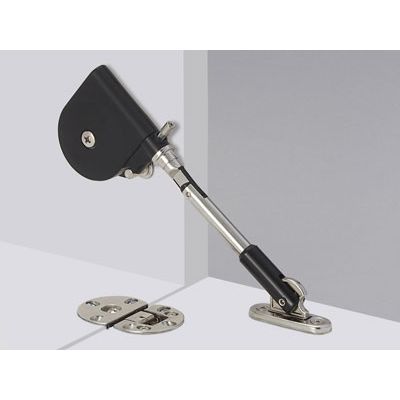

Reversible Flap Stay
