Blum  |  SKU: 652304

Blum Clip Top Face Frame Mounting Plates

$129 Each
Mounting Plate Height

Fasteners Not Included

Description

  • These mounting plates are made for Blum hinges on face frame cabinets.
  • Will work on any Blum "clip top" or "clip" hinges.
  • These plates mount on the cabinet on the edge of the face frame.

Replacements

  • When replacing worn out or broken Blum hinges, it is a good idea to replace all the hinges and mounting plates on your door at the same time.
  • If you have an existing Blum mounting plate that you would like to replace, simply match the height of your plate to the height of one of these plates. See the document found under Downloads to learn how to measure the height of your existing plate.

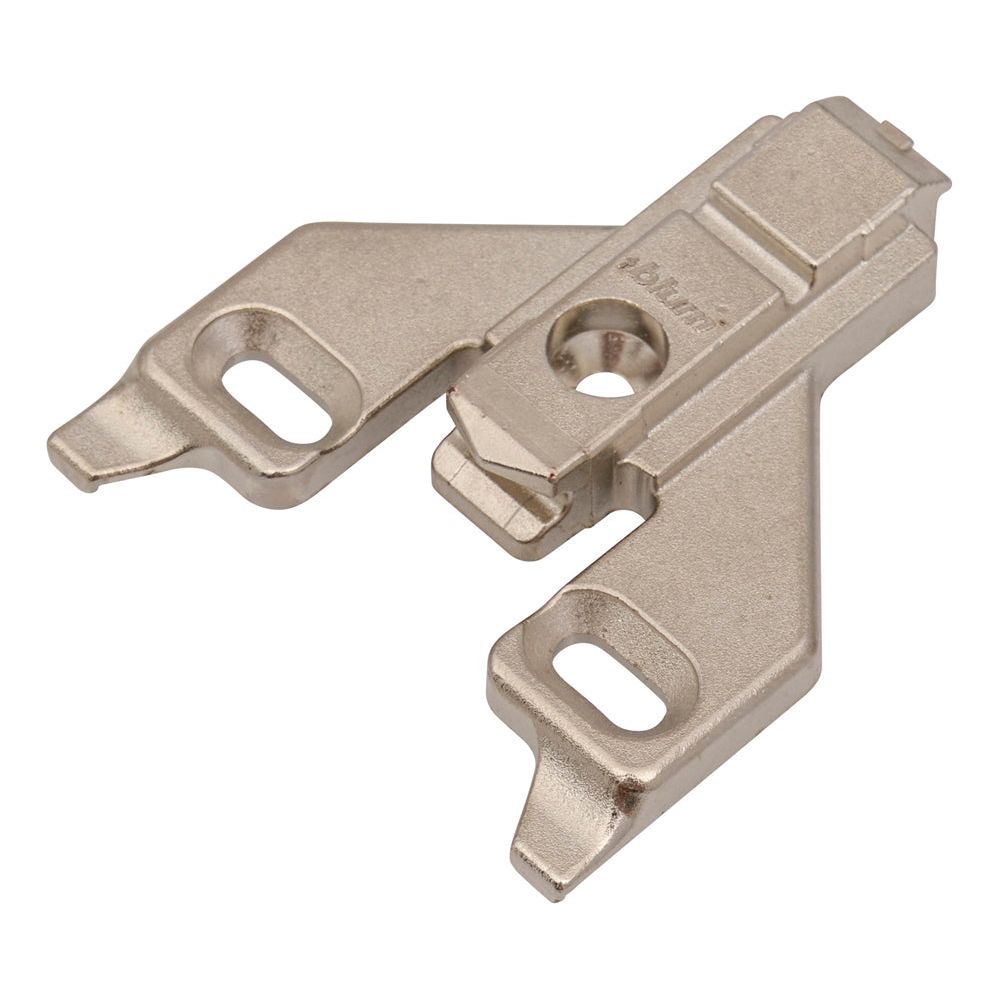

    • 0mm Plate (Blum 175L660) - 5/16" actual height

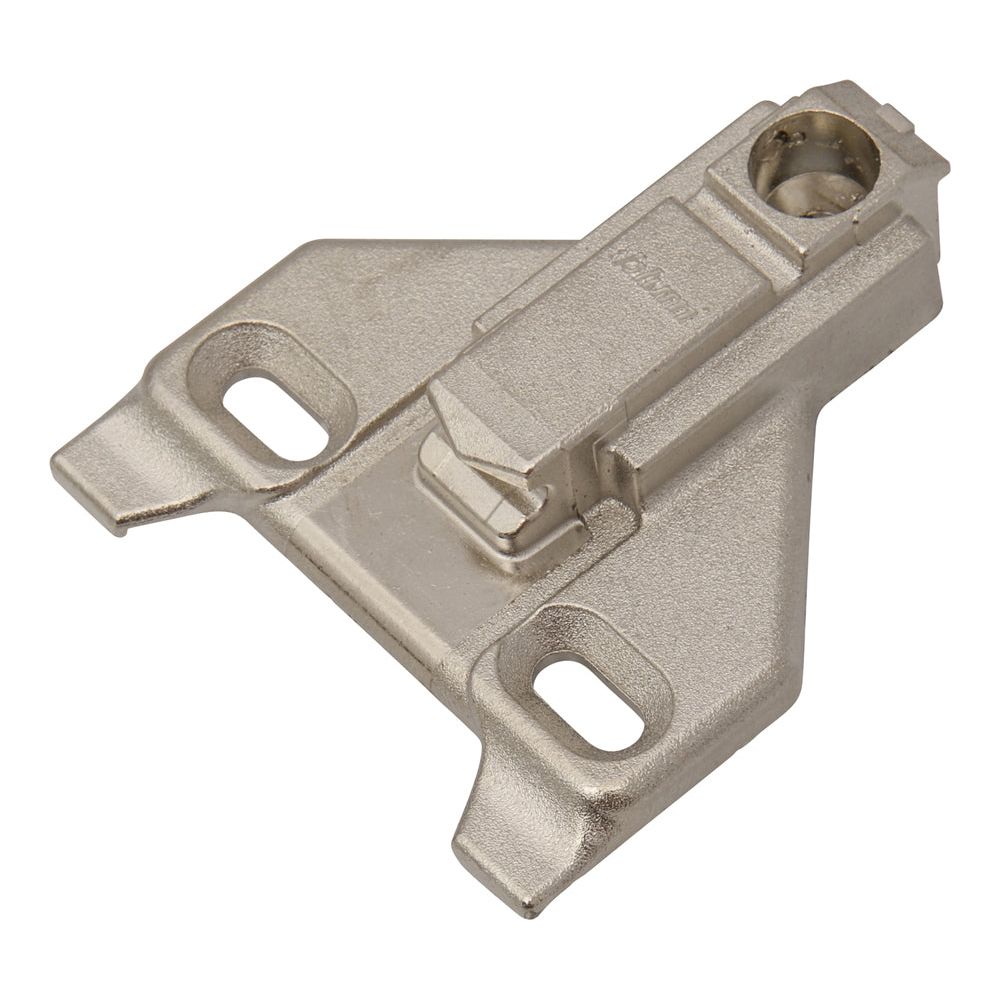

    • 3mm Plate (Blum 175L663) - 7/16" actual height

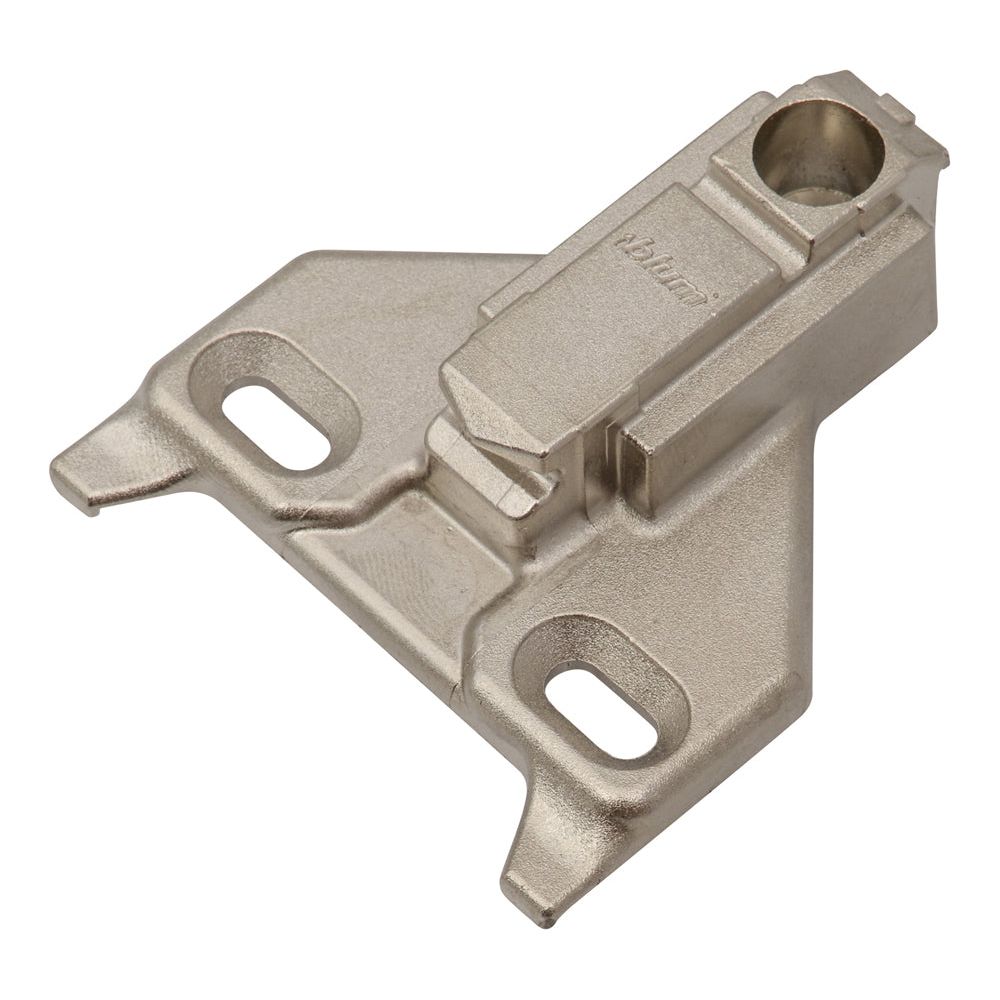

    • 6mm Plate (Blum 175L666) - 9/16" actual height
Note: For years cabinet makers have incorrectly installed these mounting plate with #6 screws instead of the correct #7 screws. This causes the plates to eventually crack. Please use #7 screws when installing these plates. Screws are not included.

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10213

CA Prop 65 Warning

  • Manufacturer
    Blum
  • Model Number
    175L660 (0mm Plate)
    175L663 (3mm Plate)
    175L666 (6mm Plate)
  • Finish Name
    Nickel
  • Material
    Cast Metal
  • Plate Connection Type
    Clip-On
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #7 Flat Head Screws (Our SKU 268000)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 10 reviews
70%
(7)
20%
(2)
10%
(1)
0%
(0)
0%
(0)
100.0
100.0
N
Nathan M.
Helpful All-Around

I found the guidence and information provided on the site critical in helping to choose the right hinge.
I also found the site very responsive to follow-up questions. All-Around great experience. Would re-order anytime.

C
Craig K.
THEY SAVED ME

After looking everywhere at all the conventional hardware stores{Home Depot, Lowes, Ace} for a particular cabinet hinge , i discovered Hardware Source online.
After sending them pictures of the hinge with follow up questions from them regarding measurements and hinge placement , they were able to send me the exact hinges I was looking for. . They are now my go to source for hard to find items.Highly recommended.

P
Pauline s.
Replacement Blim hinges

Thanks for Eddie's help choicing the right hinges

S
Steven H.

Blum Clip Top Face Frame Mounting Plates

P
Paul W.
Blum mounting plates

Everything worked like a charm.

Load More

Related Products

#7 x 5/8" European Hinge Screw
View details

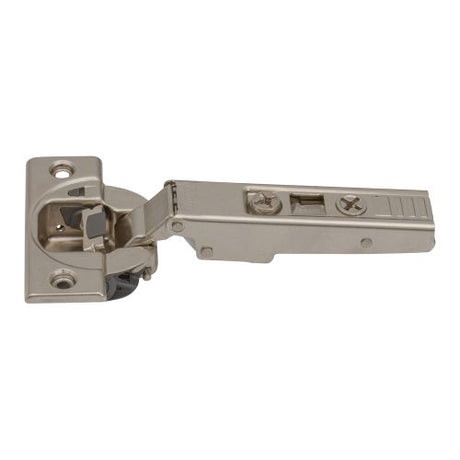

Blum Blumotion Straight Arm Hinge
