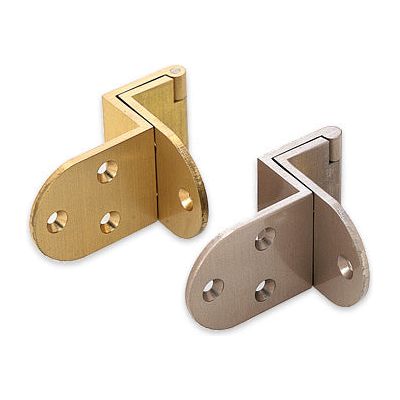

Overlay Hinge for Frameless Cabinets
Couldn't load pickup availability
Description
Description
- Beautiful hinge made for overlay doors on frameless cabinets.
- Can either be surface mounted on the door and side panel of the cabinet or mortised (recessed) into the door and side panel.
- The manufacturer recommends a maximum door width of 17-3/4", a maximum door height of 27-9/16", and maximum door weight of 5.7 lb per pair of hinges.
- Recommended for 11/16" thick doors for surface mounted applications.
- Recommended for 13/16" thick doors for mortised applications.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10290
-
Manufacturer
-
Model Number
-
MaterialBrass
-
Cabinet Door TypeFull Overlay
-
Mounting Hardware Included
-
Mounting Hardware Type
