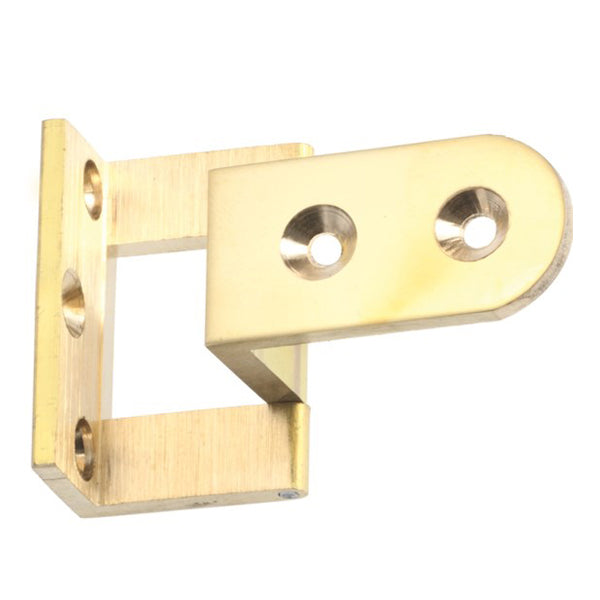

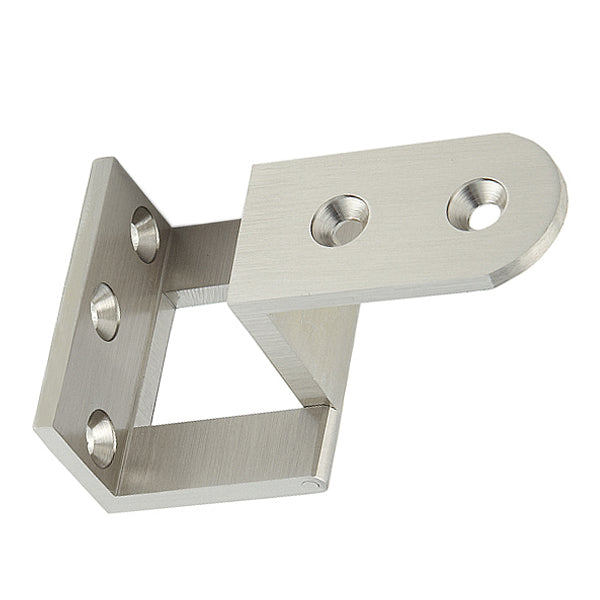

270 Degree Overlay Hinge
Couldn't load pickup availability
Description
Description
- This hinge is designed for TV and entertainment units which need wide opening doors.
- Opens 270 degrees for unobstructed view.
- This entertainment center door hinge can be recessed (mortised) into the door for a sleek look.
For Doors 5/8" to 7/8" Thick
- For doors 5/8" thick if the hinge is not mortised into the door.
- For doors 7/8" thick if the hinge is mortised into the door.
- 1-9/16" Tall
- Projects out from the cabinet surface 1".
- Attachment to the backside of the door is 1-3/8".
For Doors 3/4" to 15/16" Thick
- For doors 3/4" thick if the hinge is not mortised into the door
- For doors 15/16" thick if the hinge is mortised into the door.
- 1-9/16" Tall
- Projects out from the cabinet surface 1-5/16".
- Attachment to the backside of the door is 1-3/8".
- Note: this size has been discontinued in the Polished Brass finish.
