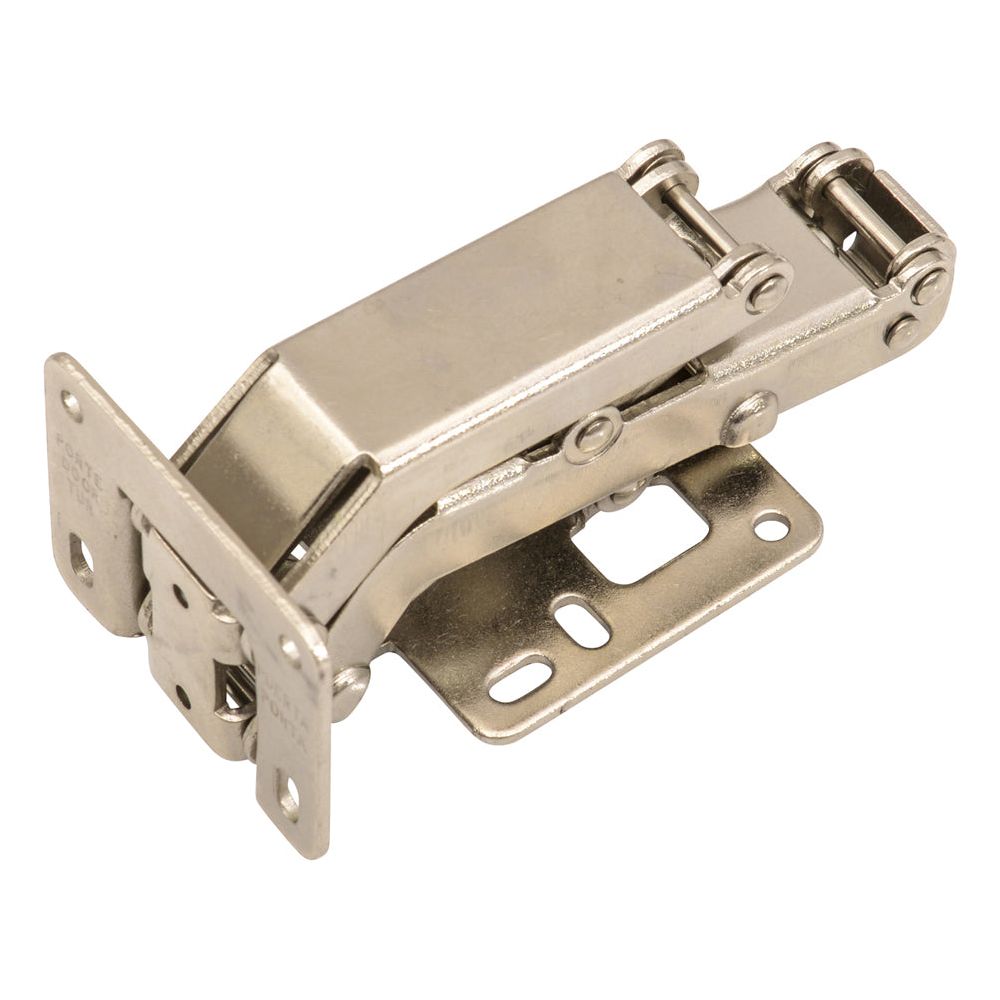

175 Degree Concealed No-Bore Hinge
Couldn't load pickup availability
Description
Description
- This heavy duty hinge allows smooth, silent, sag-free opening to 175 degrees
- 175 degree cabinet hinge surface mounts to the inside of your frameless cabinet. Small screw holes are the only holes you need to drill.
- Hinge works on 5 different applications: full overlay doors (maximum overlay is 3/4"), half-overlay doors, full inset doors, and mitered corner doors (click on document found under Downloads for illustrations) It also works on 3/8" inset doors with a 3/8" lip (no illustration available)
- For normal use the hinge can be used on door thicknesses up to 1"
- If used on "back-to-back" cabinets a maximum of 13/16" is recommended
- Hardened steel construction (.082 gauge steel)
- Cabinet must have at least a 4-1/8" depth. Hinge measures approximately 4" long by 1-5/8" by 2".
Weight rating varies based on the number of hinges used. Please refer to the following information when determining how many hinges will be required:
- 2 hinges: 13 lbs
- 3 hinges: 23 lbs
- 4 hinges: 36 lbs
- 5 hinges: 53 lbs
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 286144
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeFlush Inset, Half Overlay, Full Overlay
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle175 Degrees
-
Mounting Hardware Included
-
Mounting Hardware Type
