Blum 170 Degree Hinge for Back-to-Back Overlay Cabinets - Bundle
Couldn't load pickup availability
Description
Description
- Blum 170 degree hinge bundle for back-to-back overlay doors on frameless cabinets.
- Available in self-closing and free swinging functionalities.
- The hinge and mounting plate attach to each other by snapping on.
- Please see the minimum reveal sheet below to determine if this hinge bundle will work for you.
What's Included
- 1 Blum 170 Degree Hinge
- 1 Blum 0mm System Screw Frameless Mounting Plate
- Two #6 x 5/8" Flat Head Wood Screws for the hinge
Mounting Screws for Mounting Plate (Not Included)

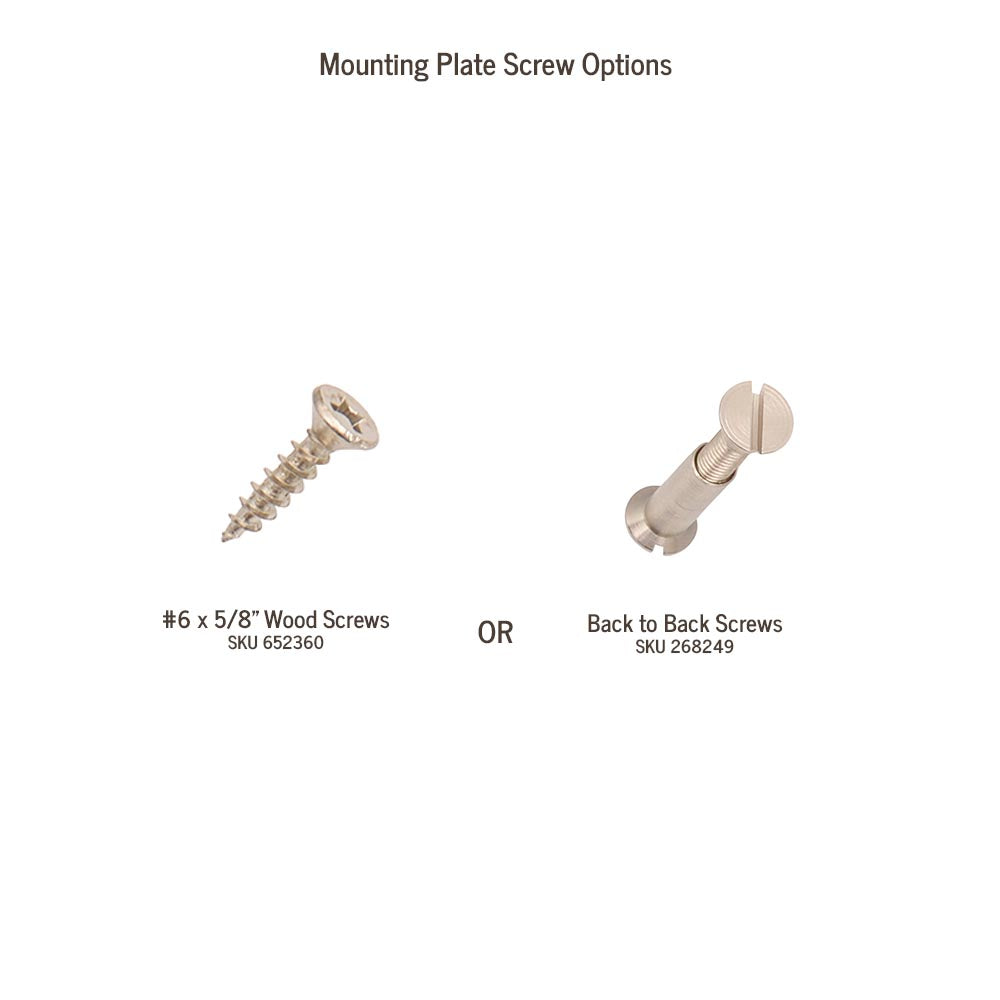

- Depending on cabinet side wall thickness you will need either of the following screws for the mounting plate:
- For cabinet wall thickness of 5/8" to 7/8", you will need to use back to back mounting screws.
- For cabinet wall thickness of 1" or greater, use #6 x 5/8" screws.
- Note that only two back to back screws are required for two hinges, whereas you would need four #6 x 5/8" screws for two hinges.
Optional Accessories - Available for purchase separately:
- Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268003)
- Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268234)
- Note: Soft close does not work with free swinging hinge.
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- Restriction clip. Limits angle of opening to 130 degrees (SKU 652033)
- Blum Touch Latch for Self-Closing Doors (SKU 268822)
- 35mm Forstner Bit, for new installations (SKU 204000)
- Ecodrill, installation jig, for new installations (SKU 701000)
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10117
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeHalf Overlay
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle170 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Type
