Blum Glass Door Hinge
Couldn't load pickup availability
Description
Description
- European style Blum glass door hinges for inset, overlay, and twin overlay glass doors.
- Feature a 94 degree opening angle and 3 dimensional adjustment.
- This hinge system requires that the glass door have a 26mm hole bored for each hinge used.
- They work with glass thicknesses of 4.5mm to 7mm (slightly under 3/16 to slightly over 1/4 inch).

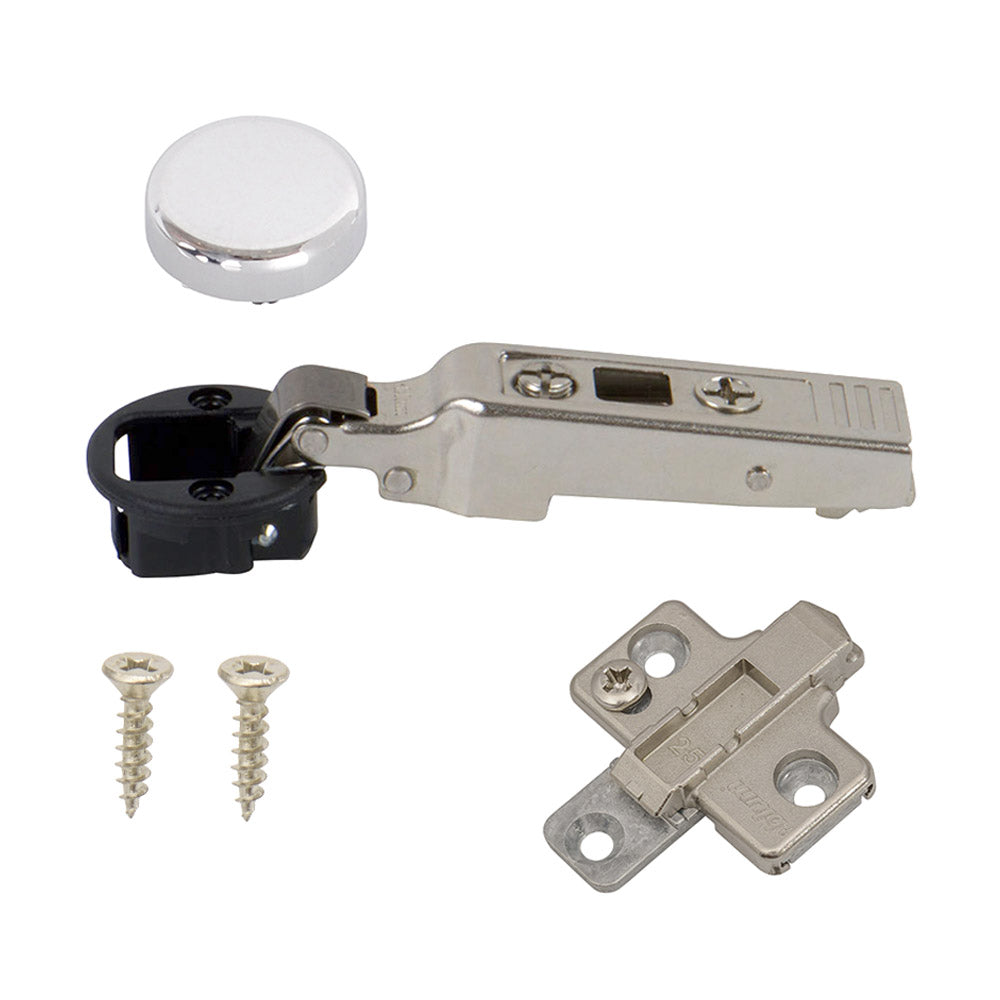

- The hinge system is made up of 4 items: the hinge, the cover cap, the mounting plate, and the wood screws for the mounting plate.
- The hinge comes in three types: Straight Arm for overlay doors, Half Cranked for twin overlay doors (also known as back to back doors), and Full Cranked for inset doors.
- There are four options for mounting plates. Please review the documents under the Downloads section for instructions on how to determine your mounting plate size.
- The cover caps (required to hold glass door to hinge system) are available in two finishes (black and chrome), and two types (round and D-shaped). Screws to hold cover cap to hinge are included.
- All parts of the glass cabinet door hinge and cover cap that touch the glass are a plastic material.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10053
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeFlush Inset, Half Overlay, Full Overlay
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle94 Degrees
-
Cup Diameter
-
Mounting Hardware Included
-
