Blum | SKU: 652364, 268225, 652360

Blum Thick Door Hinge for Face Frame Inset Cabinets - Bundle

Name: Blum Thick Door Hinge for Face Frame Inset Cabinets - Bundle
Brand: Blum
SKU: 652364, 268225, 652360
Price: 10.0 USD
Availability: InStock

$10⁰⁰Per Bundle

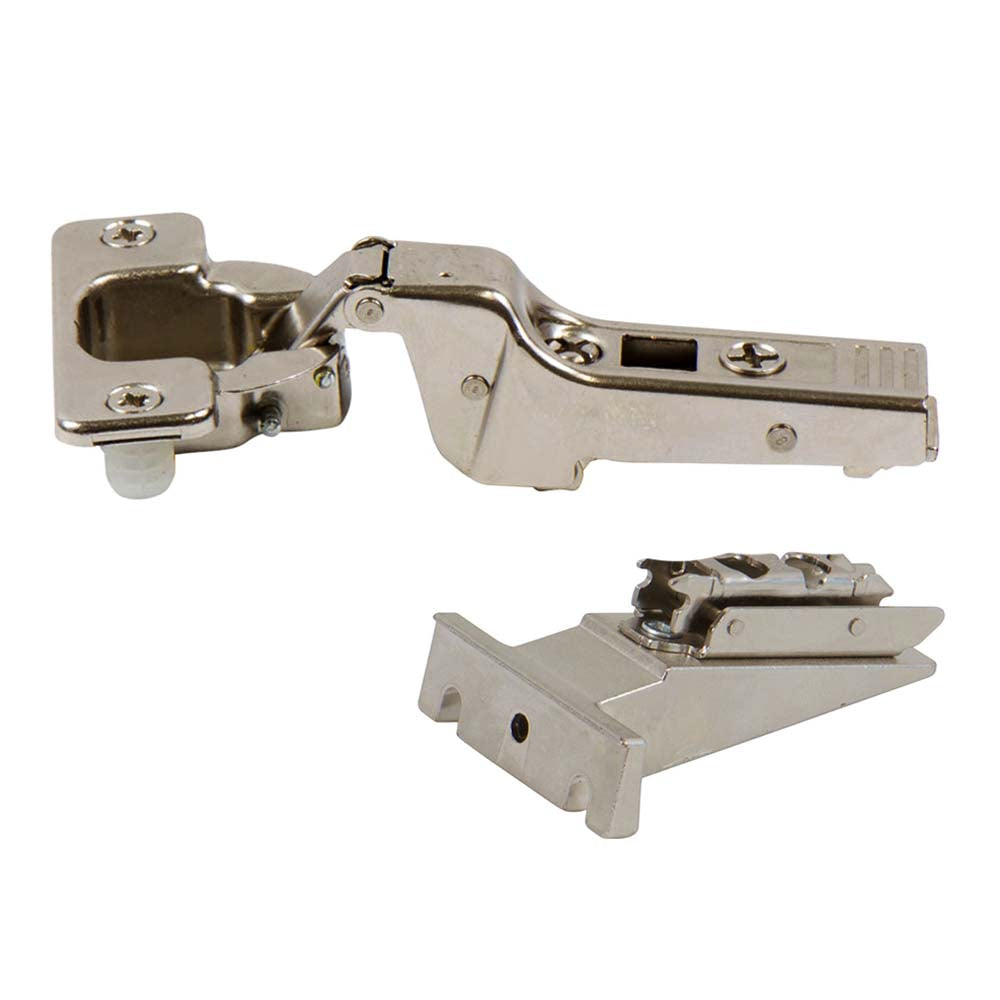

One bundle includes 1 hinge, 1 mounting plate, and 2 screws for the hinge. Screws for the mounting plate sold separately.

Description

Blum's thick door half cranked clip top hinge for face frame inset cabinets.
For door thicknesses from 19mm (3/4") to 30mm (1-1/8").
Please reference the minimum reveal information document under Downloads to verify if this bundle will work for you.

What's Included

1 Blum Thick Door Half Cranked Hinge
1 Blum Face Frame Adapter Mounting Plate
Two #6 x 5/8" screws for the hinge

Mounting Screws for Mounting Plate (Not Included):

Two #8 pan head screws are required for the mounting plate but are not included in this bundle. This is because at the time we only sell these screws in packs of 5. To purchase these screws, please see the related products (SKU 135410).

Optional Accessories - Available for purchase separately:

Cover Plate for Arm Part of Hinge - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268002)
Cover Plate for Cup Side of Hinge - Hides the screws on the cup side providing a cleaner appearance (SKU 701114)
Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268233)
Blum Platemate. To drill the angled holes for the adapter plate the purchase of the Blum Platemate is highly recommended although not absolutely necessary. The Blum Platemate clamps on the edge of the face frame and allows accurate drilling of the adapter plate screw holes. (SKU 268227)
- PLEASE NOTE: THE BLUM PLATEMATE IS A NON-RETURNABLE ITEM.
Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
Blum Touch Latch for Self-Closing Doors (SKU 268822)
35mm Forstner Bit, for new installations (SKU 204000)
Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10130

CA Prop 65 Warning

Manufacturer

Blum
Model Number

Hinge: 71T9680
Mounting Plate: 175H5030.21
Finish Name

Nickel
Material

Steel
Cabinet Door Type

Flush Inset, Thick Door
Soft Close

No
Self-Closing

Yes
Plate Connection Type

Clip-On
Opening Angle

95 Degrees
Cup Diameter

35mm
Screw Hole Spacing

45mm (1-3/4")
Mounting Hardware Type

#6 x 5/8" Screws included for the hinge side. Screws for the mounting plate sold separately (see description for details)
