D&D Technologies  |  SKU: 980022

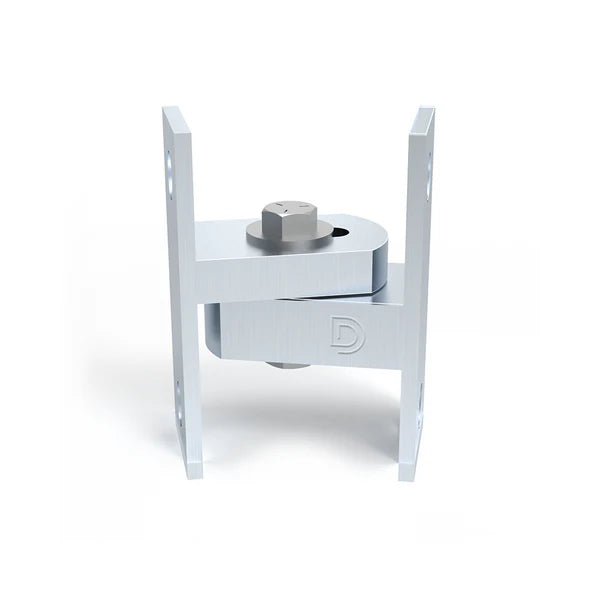

Bolt-On Adjustable Pivot Hinge 4"

$5520 Each

Fasteners Not Included

Description

  • Heavy duty pivot hinge for gates where welding is not an option.
  • Features a sealed roller bearing, no maintenance required.
  • Horizontal adjustability for perfect installation.
  • High-temperature sealed bearings – safe to powder coat with hinges installed on gate.
  • Note: attachment bolts are not included and must be purchased from an alternate source.

Approximate dimensions:

  • Height of attachment plate is 4".
  • Width of attachment plate is 1-7/16".
  • Gap between gate post and gate frame is adjustable by 1/2".
  • Gap range is 2-7/8" to 3-3/8".

Read More

The zinc chromate bolt-on pivot hinge 4" is an ideal heavy-duty option for gates, doors, and other projects. Made of steel, these hinges can hold up to 300 pounds per pair, allowing you to mount light to medium weight gates and doors. From residential to commercial use, installing these pivot hinges is a breeze.

If you don't want a weld-on hinge, the bolt-on pivot hinge, 4", zinc chromate option is what you need. Although made of steel, these pivot hinges have a zinc chromate finish. The height of the attachment plate is 4" with a width of 1 - 7/16". They allow for a 180-degree range of motion, 90 degrees in each direction. A useful benefit of this steel pivot hinge is the adjustability of the gap between the gate post and frame after installation. With half an inch to work with, the gap range will be between 2 - 7/8" and 3 - 3/8". This will help prevent the need to re-install the hinge or buy a different one due to improper fit. The zinc chromate bolt-on pivot hinge 4" features a sealed roller bearing, so no greasing is required. These install with four 1/2" diameter lag screws and hex bolts. Using this size of hardware will ensure the 300 lb. weight rating. The mounting hardware is not included and must be purchased from another source. Please note that these pivot hinges are sold individually, not as a pair.

These steel hinges are in stock and ready to ship within the next business day. Need clarification about these before ordering? Use the LiveChat system on our website to speak directly with one of our online agents. Should this hinge not be the correct option for you, our online agent will help you find the perfect one for your gate or door. If you have any other questions about the zinc chromate bolt-on pivot hinge 4" option or would like to learn more about our expansive inventory of bolt-on gate hinges, please feel free to contact us for additional information.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 980022

  • Manufacturer
    D & D Technologies
  • Finish Name
    Zinc
  • Material
    Steel
  • Weight Rating
    300 lb per pair
  • Heavy Duty Hinge Type
    Bolt-On
  • Bearings
    Roller Bearing
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Four 1/2" Diameter Lag Screws and Hex Bolts
