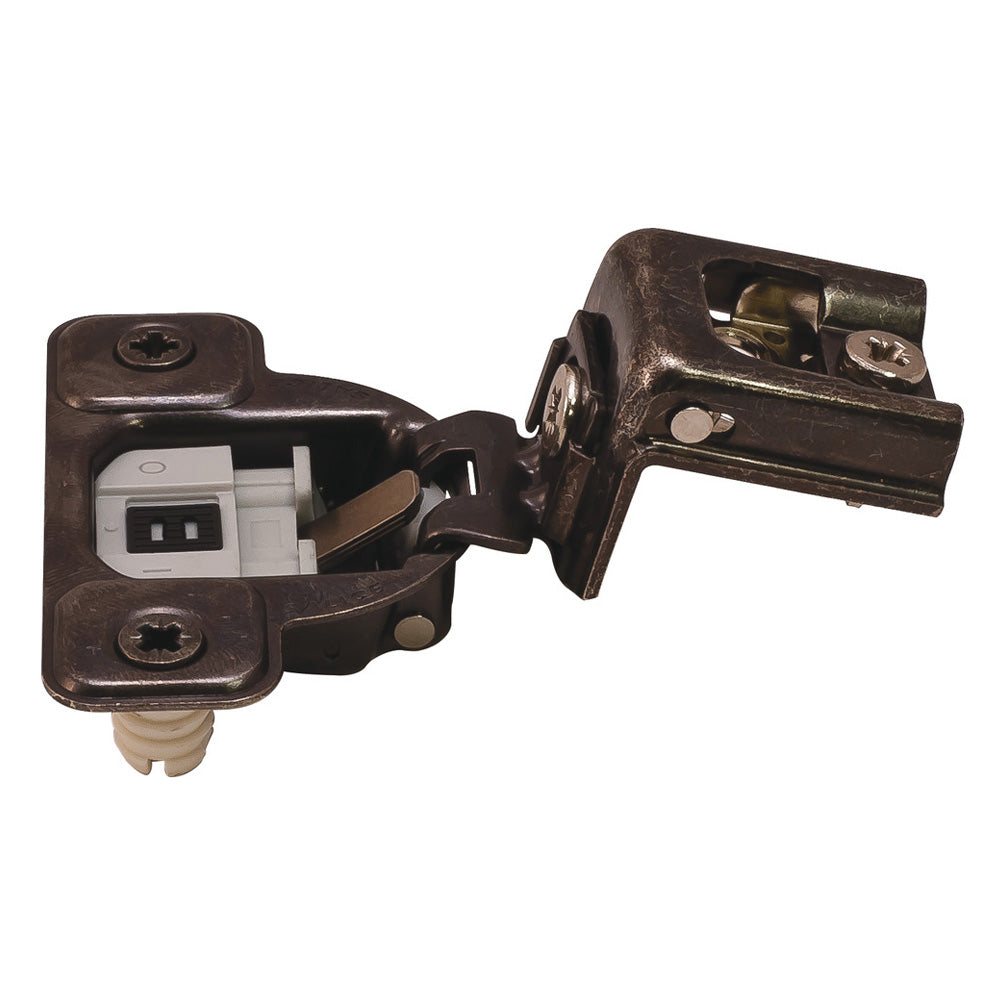

Compact European Hinge, Titanium, Soft Closing, 1-1/4" Overlay
Couldn't load pickup availability
Description
Description
- This compact European hinge has a titanium finish that looks great on dark and mid-toned cabinets.
- Three way adjustable after installation
- A switch which will deactivate the soft close feature
- Designed for a face frame thickness of 3/4".
Fasteners
- Plastic dowels and matching screws for the door side of the hinge are included. Dowels may be discarded if not needed.
- Not included is the screw for attaching the hinge to the face frame. Order one of our SKU 778167 per hinge.
- Please note that the two adjustment screws on this hinge are chrome and not the dark bronze finish.
Dimensions:
- The hinge screw hole center-to-center dimension is 1-3/4" (45mm)
- The hinge fits into a 1-3/8" (35mm) cup drilled in the back of the door
- The bore distance used for this hinge is 1/8" (3 mm)
- The cup depth of the 1-3/8" hole needs to be 7/16" (11 mm)
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 796708
-
Manufacturer
-
Finish Name
-
MaterialCast Metal
-
Soft CloseYes
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle106 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
| Facet | |||||
|---|---|---|---|---|---|
| Price | |||||
| Price |
From
$029
Each
Unit price
/
Unavailable
|
$574
Each
Unit price
/
Unavailable
|
From
$199
Each
Unit price
/
Unavailable
|
$2848
Each
Unit price
/
Unavailable
|
$1030
Each
Unit price
/
Unavailable
|
| Description | |||||

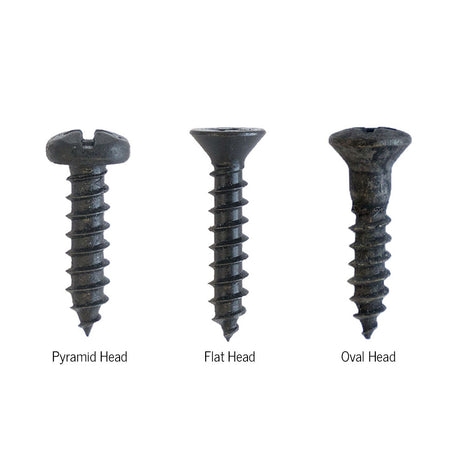

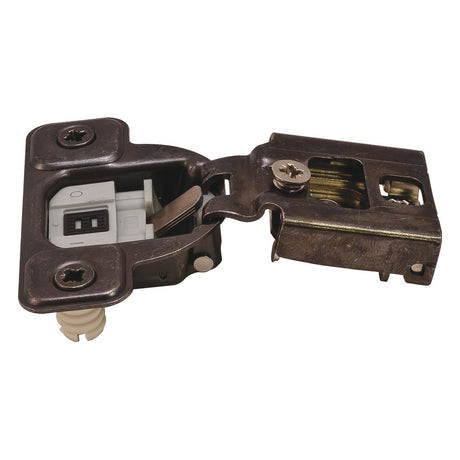

| Description | Extra screws for iron hinges and dummy straps. Flat black finish Available in three head types: Flat Head (countersunk), Pyramid Head, and Oval... | This compact European hinge has a titanium finish that looks great on dark and mid-toned cabinets. Three way adjustable after installation A switch... | The mounting plate and hinge are combined in one unit. The mounting plate side of the hinge does requires a single #10 mounting... | High speed steel forstner bit for cutting 35mm (1-3/8") cup for European hinges. Fits 3/8" drill chuck. Product works best with a drill... | |
