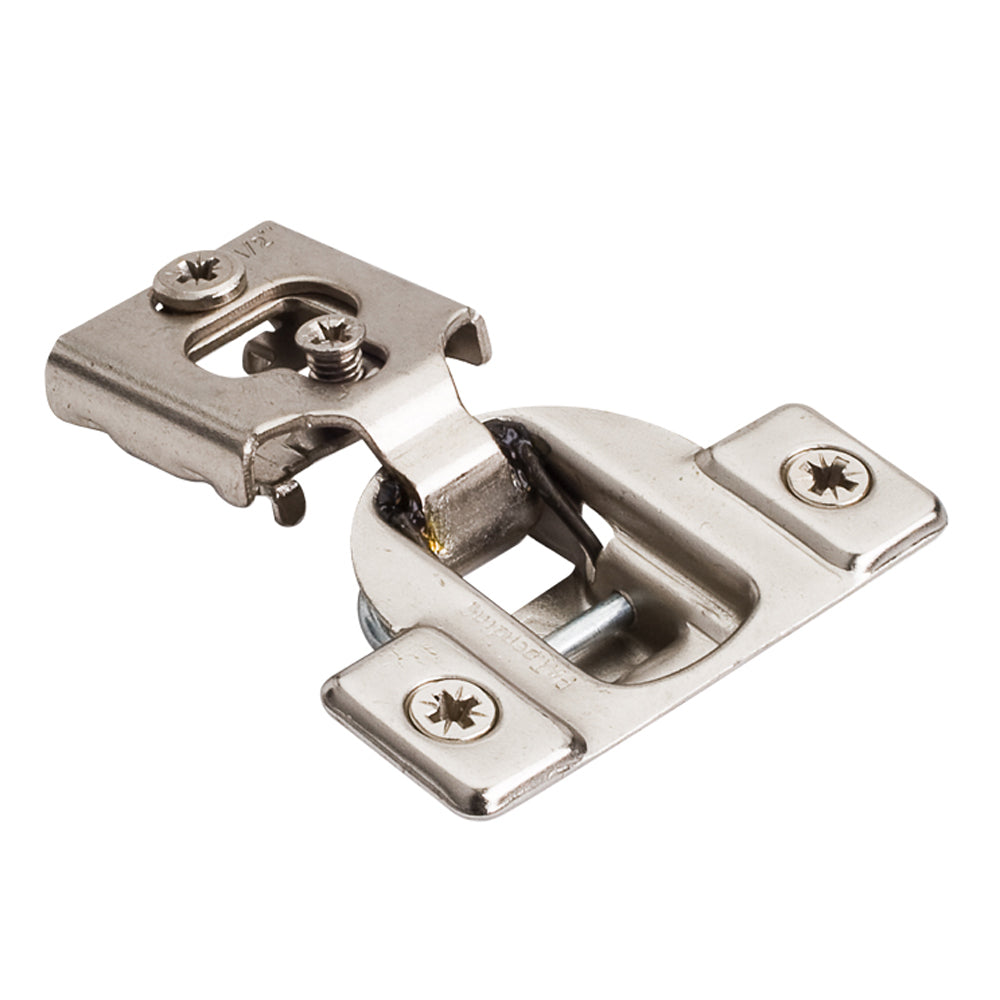

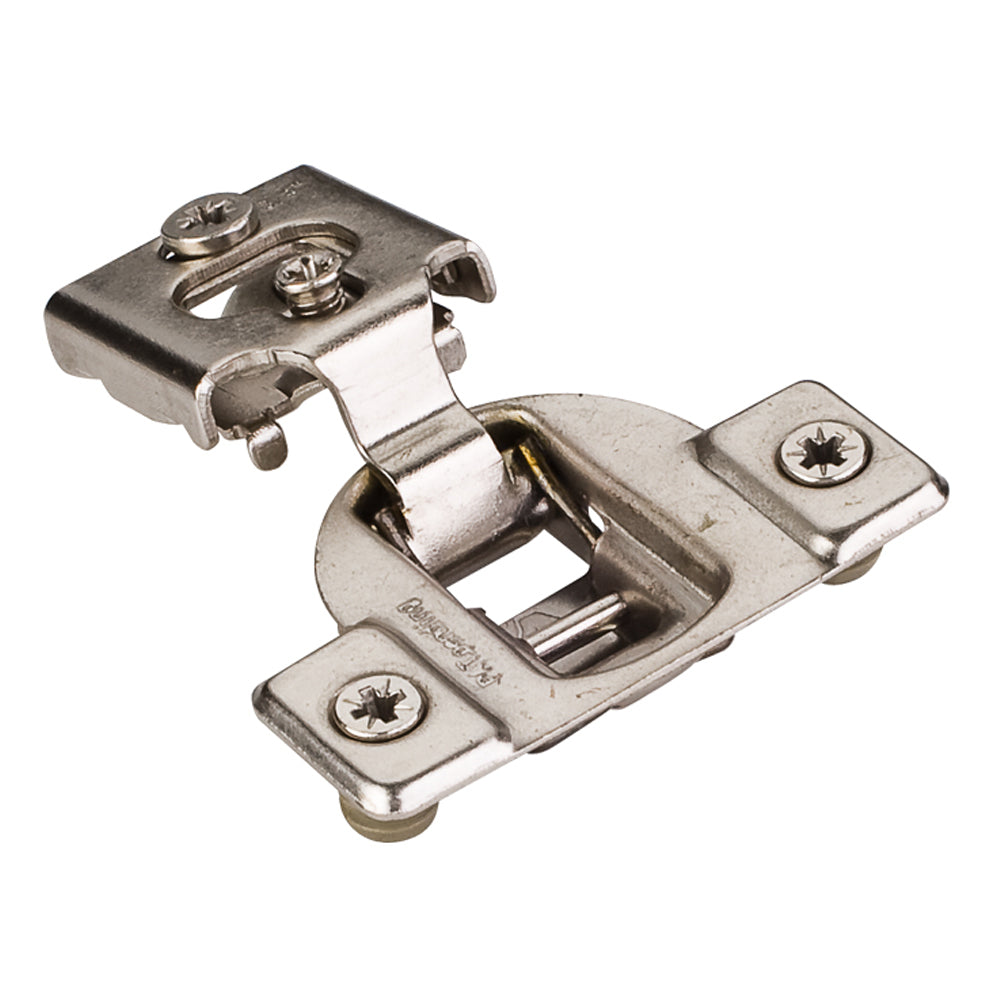

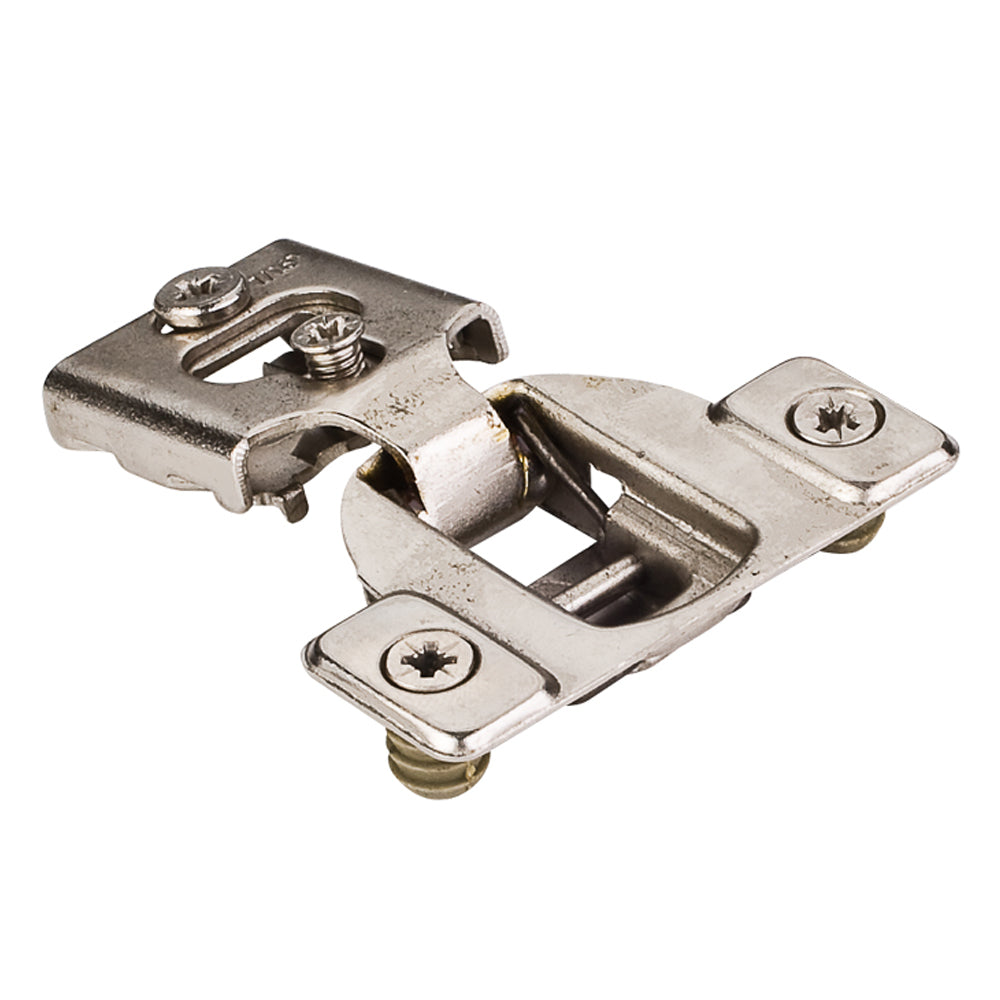

Generic Compact European Hinge, Small Overlay
Couldn't load pickup availability
Description
Description
- Generic European style compact one piece hinge. Mounting plate and hinge are combined in one unit.
- Hinge is made for cabinets with a 3/4" thick face frame.
- Cup depth is 7/16". Bore distance is 1/8". Hinges feature 3-way adjustability.
- The hinge side comes with screws and press-in dowels. Dowels are typically used in MDF or particle board material. If mounting in solid wood, remove the dowels and use the included wood screws.
- The cabinet side requires one #7 screw. This is not included. Use our SKU 272414.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10254
-
Finish Name
-
MaterialSteel
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle105 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
