Half Cranked Hinge for Face Frame Half Overlay Cabinets - Bundle
Couldn't load pickup availability
Description
Description
- European style hinge with titanium plating over steel base material.
- This plating provides a nice aesthetic while offering superior corrosion resistance.
- Half cranked clip top model for face frame overlay doors.
- For cabinets which have a smaller overlay than is allowed with the straight arm hinge.
Installation
- Hinge cup installs in a 35mm (1-3/8") diameter cup drilled in the back of the door
- Cup depth needs to be a minimum of 11 mm deep (7/16").
- This hinge and mounting plate will accommodate any overlay from 8mm (5/16") to 15mm (19/32").
- The hinge comes with screws and plastic dowels preattached. Dowels are typically used in MDF or particle board materials. The dowels can be discarded if installing in solid wood and the included wood screws can be used in their place.
What's Included

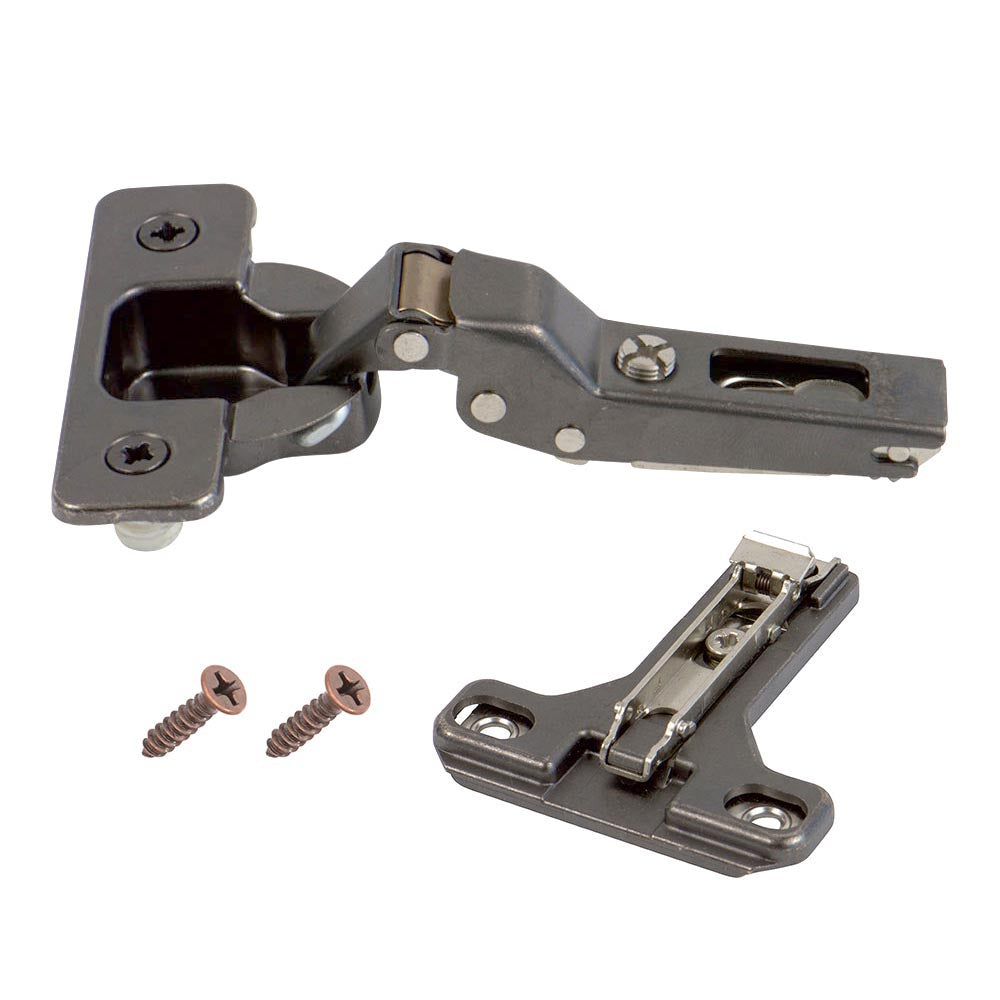

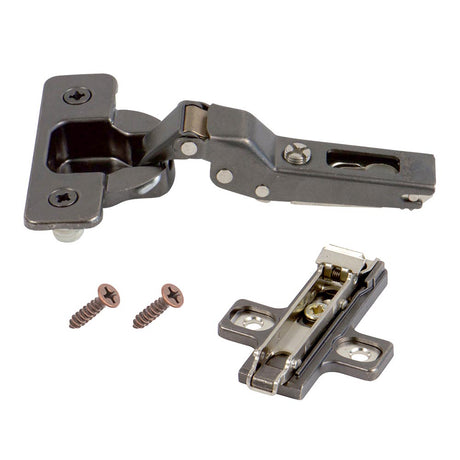

- 1 Half Cranked Hinge
- 1 Face Frame Mounting Plate:
- There are two possible mounting plates for face frame overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" document found under Downloads.
- Four #6 x 5/8" Flat Head Wood Screws
Available for purchase separately:
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- 35mm Forstner Bit, for new installations (SKU 204000)
- Ecodrill, installation jig, for new installations (SKU 701000)
