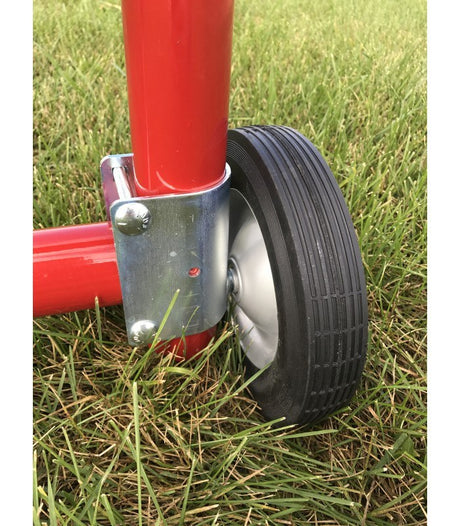

Light Duty Hinged Gate Wheel
Couldn't load pickup availability
Description
Description
- Gate wheel helps support unhinged end of gate.
- Wheel is 2-3/4" diameter and made of hard plastic. Wheel width is 1-1/4".
- Wheel is attached to a ball bearing swivel for ease in rolling.
- Approximate 50 lbs capacity.
- Mounting plate is undrilled. Holes may be added by installer or it may be welded in place. Mounting plate measures 1-3/8" by 9-3/8" by 1/8".
- Maximum spring travel is 1".
- Made from steel and unfinished. Should be painted after installation.
- If installing on a wood gate, 5/16" lag screws are recommended.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: 880002
-
Finish Name
-
MaterialSteel
-
Length
