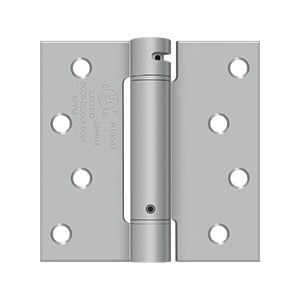

Residential Stainless Steel Spring Hinge With Steel Spring
Couldn't load pickup availability
Description
Description
- Stainless steel spring butt hinge.
- Note: The internal spring is made of Steel and will rust in marine environments.
- Leaf thickness is approximately 3/32".
- This is a residential grade hinge. It is not built to an industrywide template. Screw hole patterns vary widely between different brands of hinges.
What's Included:
- Adjustment instructions
- Allen wrench and pivot bar for adjusting tension
- Adjustment pins
Maximum Recommended Door Weights:
- 50lbs using two spring hinges and one non-spring butt hinge
- 90lbs using three spring hinges
- Max door size is 3' x 7'
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10838
-
Finish Name
-
MaterialStainless Steel (304)
-
Spring Hinge TypeButt
-
Grade
-
CornerSquare
-
Mounting Hardware Included
-
Mounting Hardware Type
