Simplex Inset Small Non-Bore Glass Door Hinge
Couldn't load pickup availability
Description
Description
- Installs easily without boring through glass doors.
- Opening angle is 110 degrees.
- For left or right-hand installations.
- For glass thicknesses to 1/4" (6.5mm).
- Visible height is 20 mm (Approx. 25/32").
- Outside diameter of pivot point bushing is 5/16".
- Includes self-adhesive pressure plates, machine screws, press-fit black plastic bushings and set screws to hold glass.

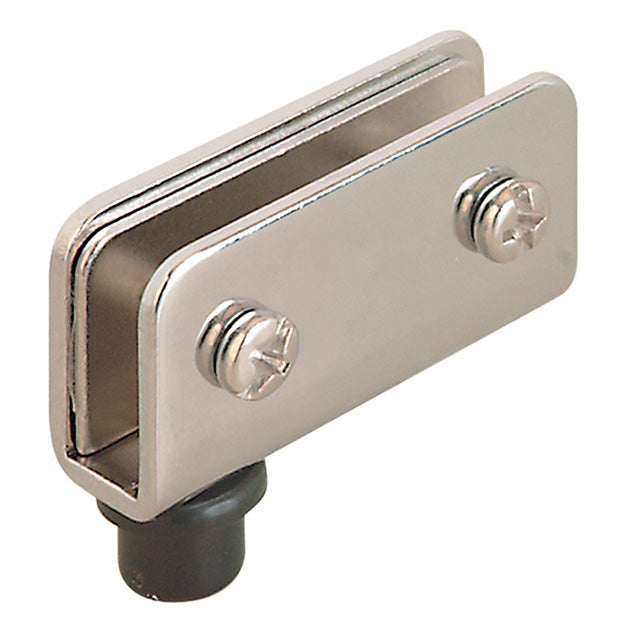

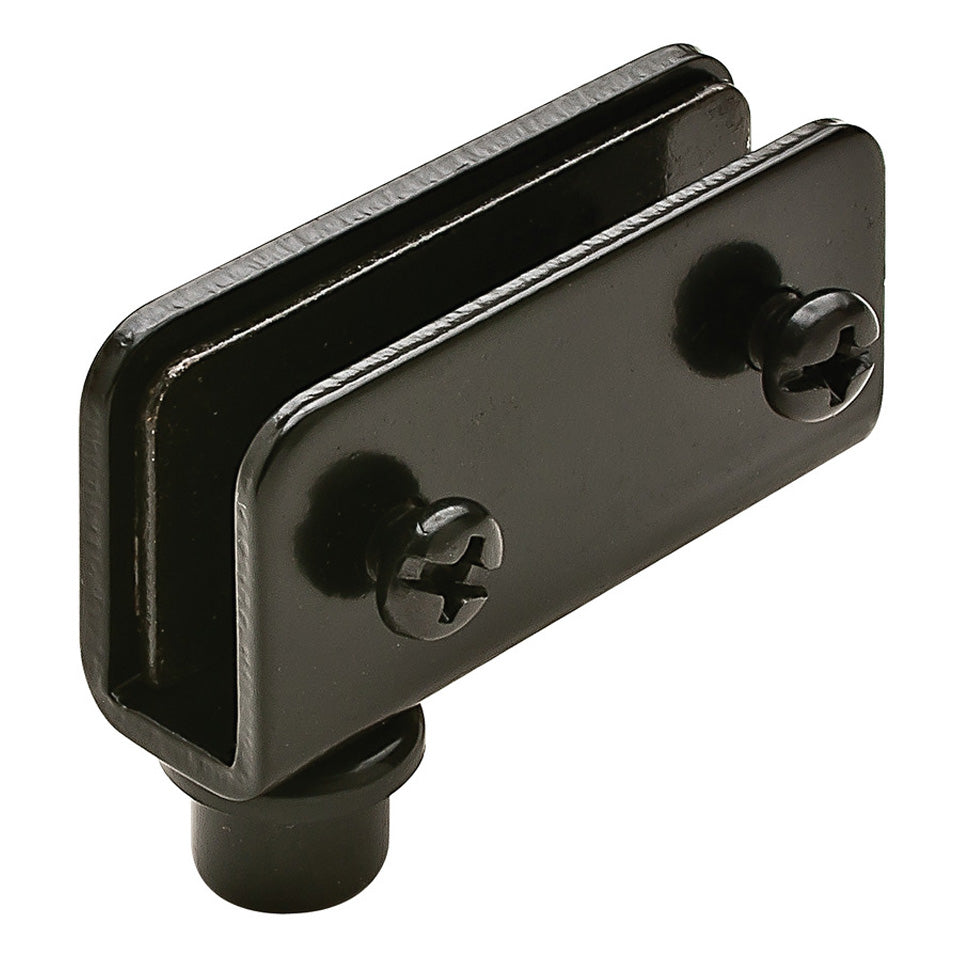

- Image shows backside of the hinge with set screws.
- The front side is smooth and looks great.
- Magnetic catch is used with metal wrap around pull to hold the glass door closed.
- See related products below for pulls and catches.
- Note that magnetic catches, sold separately, come with strikes that you will not use. The pull becomes the strike for the magnetic catch.
